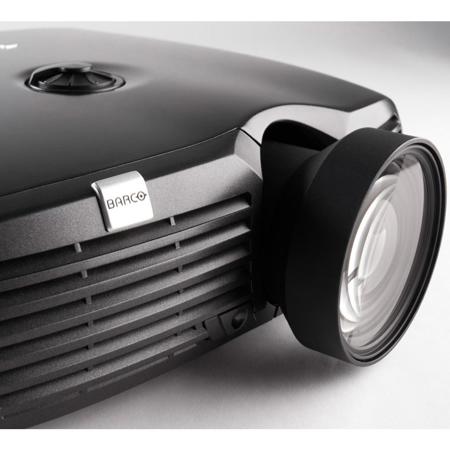

Barco F22 SXGA+ VizSim Bright Projector with EN17 Lens, OptiLoc, Black Metallic
See all Barco items

Barco F22 SXGA+ VizSim Bright Multimedia Projector with EN17 Wide Angle Lens, OptiLoc, 1400x1050, 2000 Lumens, Black Metallic

SKU: BAR9023029

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco F22 Projector Specifications

  • Display System

    1-Chip DLP

  • Native Resolution

    PC: SXGA+ - 1400 x 1050

  • Supported Resolutions

    Maximum: WUXGA - 1920 x 1200

  • Brightness

    Normal Mode: 2000 Lumens

  • Aspect Ratio

    Native: 4:3

  • Contrast Ratio

    2D-2500:1

  • Color Range

    Wheel: R, G, B
    Colors: 1 Billion

  • Scan

    Horizontal: 15 - 150 kHz
    Vertical: 48 - 190 Hz

  • Lens

    F 2.6 - 3.26 (f = 52.61 - 81.49 mm)

  • Zoom

    No

  • Throw Ratio

    1:1

  • Inputs/Outputs

    1x HDMI Video (Input)
    1x DVI-I Video (Input)
    1x S-Video Video (Input)
    1x 15-pin VGA Video (Input)
    1x RCA Composite Video (Input)
    1x RCA Component Video (Input)
    1x 1/8" (3.5 mm) Mini Remote (Input)
    1x 12 V Trigger Control (Input)
    1x USB Type-B Female (Input)
    1x Ethernet Control (Input)

  • Lamp (Bulb)

    1x UHP

  • Power

    Normal Mode: 220W

  • Life

    Eco Mode: 2250 Hours
    Eco Mode: 3000 Hours

  • Remote Control

    Yes

  • Power Requirements

    100-240 VAC

  • Input Current

    3 A / 1.3 A

  • Heat Dissipation

    1061 BTU

  • Temperature

    Operating: 50 to 104 deg. C / 122 to 219 deg. F; Humidity: 20 - 80%
    Storage: -4 to 104 deg. C / 25 to 219 deg. F; Humidity: 10 - 90%

  • Dimensions (W x H x D)

    10.9 x 3.7 x 9.2" / 27.69 x 9.40 x 23.37cm

  • Weight

    6.39lbs / 2.90kg

About Barco F22 Projector

The F22-series is the ultimate compact performance projector for technically challenging and demanding applications. Providing world-class technology, a functional and innovative design, the F22 delivers an unmatched level of performance, reliability, automation and customization.

• 10-bit color processing, Real Color technology
• Fully networkable with remote asset management capabilities
• Various installation configurations including portrait mode

The design is in the details
Featuring SXGA+ resolution with up to 2000 lumens, the F22 ensures the best possible result for your image needs in every situation. Its compact footprint makes smart use of valuable installation area and reduces the resources required during physical installation. Once mounted, lamp changes can be done with the projector in situ, saving both time and money.

Performance you can count on
The F22-series projectors are specifically engineered for demanding environments such as motion-based simulators or theme park rides, where reliability and performance are paramount. Each projector is manufactured and meticulously tested and calibrated in the Barco center of excellence in Norway. The product is warranted for 24/7 operation and is supported around-the-clock by Barco's global service and support team.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Barco F22 SXGA+ VizSim Bright Multimedia Projector with EN17 Wide Angle Lens
  • Remote Control with Batteries
  • Barco 3 Year on Projector and 90 Day/500 Hours (Whichever Comes First) on Lamp Limited Warranty
