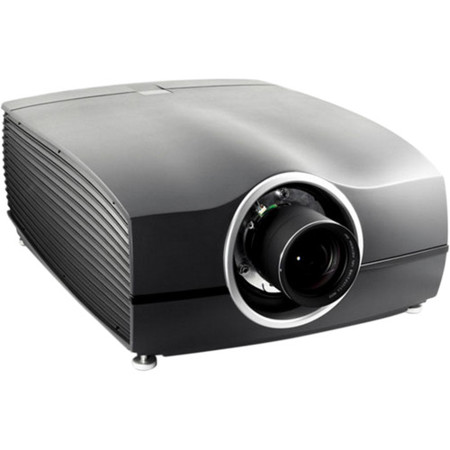

Barco F90-4K13 4K UHD 2D Laser Phosphor DLP Projector, 3840x2400, 11800 Lumen, Lens Not Included

SKU: BAR9023465

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Barco F90-4K13 Specifications

  • Projector type

    Single chip DLP laser phosphor projector

  • Resolution

    3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)

  • Brightness

    11,800 center lumens

  • Contrast ratio

    1,800:1 sequential, 10,000:1 dynamic

  • Brightness uniformity

    0.9

  • Aspect ratio

    16:10

  • Color correction

    P7 RealColor

  • CLO (constant light output)

    Yes

  • Light source

    Laser phosphor

  • Light source lifetime

    Up to 60,000 hours, depending on mode of operation

  • Sealed DLP core

    Yes

  • Orientation

    360 deg. rotation, no restrictions

  • Image processing

    Embedded warp & blend engine

  • Keystone correction

    Yes

  • Inputs

    HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12v out

  • Input resolutions

    Up to 4K UHD at 60Hz / Up to 2,560 x 1,600 at 120Hz
    Refresh rates:
    24Hz to 120Hz for WQXGA (2560x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)

  • Software tools

    Projector Toolset

  • Control

    IR, RS232, RJ45, XLR wired

  • Network connection

    10/100 Ethernet, RJ45

  • Power requirements

    100-240V / 50-60Hz

  • Power consumption

    1500 W nominal, 2180 W maximum

  • BTU per hour

    5100 BTU/h nominal, 7430 BTU/h maximum

  • Standby power

    <0.5W

  • Noise level

    38 dB(A) (typical at 25 deg. C/77 deg. F)

  • Operating temperature

    10 to 45 deg. C (50 to 113 deg. F) (sea level)

  • Storage temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Operating humidity

    20 - 80% RH

  • Storage humidity

    10 - 90% RH

  • Certifications

    CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, KCC, RCM, UkrSEPRO

  • Dimensions (WxLxH)

    575 x 730 x 295mm (22.64 x 28.74 x 11.61")

  • Weight

    44.5kg (98.10 lbs)

About Barco F90-4K13

The stunning image quality and laser phosphor light source of Barco's F90 projectors enable you to provide exceptional experiences while saving both time and money. Designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation, the reliable F90 4K13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums.

• Razor-sharp 4K images
• Ultimate installation flexibility, 24/7 operation
• Increased uptime, reduced costs

Superior image quality
The F90-4K13 delivers razor-sharp images at 4K UHD resolution with a high level of detail and highly saturated colors that meet the Rec. 709 color space. Featuring an advanced optical design, this reliable projector provides a constant light output, for long-term, worry-free operation.

Unprecedented business value
The F90-4K13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility
This projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses - from ultra-short throw (0.3:1) to long throw (9.75:1) - each providing a wide lens shift range, the F90-4K13 accommodates almost any projector configuration.

What's in the box:

  • Barco F90-4K13 4K UHD 2D Laser Phosphor DLP Projector
  • Power Cord
  • Wireless Remote Control
  • Barco 3 Year Parts and Labor Limited Warranty
