Barco ClickShare CSE-200+ Wireless Presentation System

SKU: BAR9861521NA

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco ClickShare CSE-200+ Specifications

  • Power Supply

    Standard 110/220 V AC plug

  • Power Consumption

    Operational: 50W (max)
    Standby: <8W (networked standby), < 0.5W (deep standby mode)

  • Operating System

    Windows 7/8/8.1/10 32 & 64 bit
    macOS 10.13/10.14 (Mojave)
    Android v7 & v8 & 8.1 (ClickShare app)
    iOS 11, 12 (ClickShare app)

  • Video Outputs

    1x HDMI 1.4b

  • Video Inputs

    1x HDMI 1.4b

  • Output Resolution

    4K UHD (3840x2160) at 30Hz

  • AirPlay Support

    iOS mirroring (AirPlay) from iOS 9.0 up to iOS 12 / Mac OS 10.14 (Mojave)

  • Google Cast Support

    Android 9

  • Miracast Support

    Miracast R2 support Windows 10

  • Input Resolutions

    1920x1080 at 60Hz

  • Noise Level

    Max. 25dBA at 0-30 deg. C
    Max. 30dBA at 30-40 deg. C

  • No. of Sources Simultaneous On Screen

    2

  • No. of Simultaneous Connections

    16

  • iPad, iPhone and Android Compatibility

    Sharing of documents, browser, camera for both Android and iOS devices via ClickShare app

  • Extended Desktop

    Available (depending on your operating system). May require ClickShare Extension Pack

  • Authentication Protocol

    WPA2-PSK in stand alone mode
    WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

  • Wireless Transmission Protocol

    IEEE 802.11 a/b/g/n/ac and IEEE 802.15.1

  • Reach

    Adjustable with signal strength modulation; Max. 30m (98') between ClickShare Button and ClickShare Base Unit

  • Frequency Band

    2.4GHz and 5GHz (DFS channels supported in select number of countries)

  • Connections

    1x Ethernet LAN 1Gbit
    1x USB Type-C 2.0 (back); 2x USB Type A 2.0 (back); 1x USB Type A 2.0 (front)
    Audio analog line out on mini jack socket (3.5mm), digital S/PDIF

  • Temperature Range

    Operating: 0 to 40 deg. C (32 to 104 deg. F)
    Max: 35 deg. C (95 deg. F) at 3000m
    Storage: -20 to 60 deg. C (-4 to 140 deg. F)

  • Humidity

    Storage: 0 to 90% relative humidity, non-condensing
    Operation: 0 to 85% relative humidity, non-condensing

  • Anti-Theft System

    Kensington lock

  • Certifications

    FCC/CE

  • Dimensions (HxWxD)

    39 x 200 x 202mm (1.54 x 7.87 x 7.95")

  • Weight

    900g (31.75 oz)

  • UPC Code

    5400503000203

About Barco ClickShare CSE-200+

Creativity boosts businesses. Enabling creative meetings, brainstorms and discussions enhance team collaboration and business outcomes. With the wireless collaboration solution, ClickShare, you bring effortless ideation and efficient collaboration in your enterprise.

Wireless collaboration solution for creative content-sharing fit for enterprise roll-outs
• Up to 2 users on-screen
• Share from laptop, tablet or smartphone
• Smooth switching between wired and wireless sources
• Enhanced security features
• Annotation, blackboarding and touch back support on a 4K canvas
• Central management
• Delivered with 2 Buttons

Enriched sharing
The CSE-200+ offers interactive collaborative experiences for medium-sized meeting rooms. It allows up to 2 persons to share content simultaneously. Users simply plug a USB-powered device - the ClickShare Button - into their PC or Mac and click the button to get the content from their laptop on the large meeting room screen. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have firmware version 1.7 installed on your Base Unit to enable the best experience with the Desktop App.

Stimulate creativity in your entire enterprise
The CSE-200+ was designed for enterprise rollouts. It offers a HDMI input for legacy equipment, easy switching between wireless and wired sources, enhanced security features, full network integration, a wide range of interactivity features - including annotation, blackboarding and touch back support on a 4K canvas and central management. Allowing up to 2 persons to share content simultaneously, the CSE-200+ encourages brainstorming and productivity in your enterprise. The CSE-200+ is an ISO 27001 certified product.

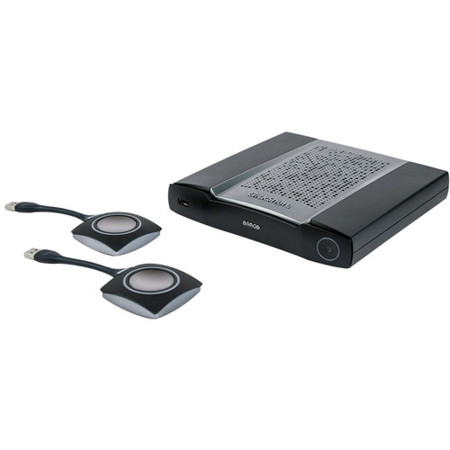

What's in the box:

  • Barco ClickShare CSE-200+ Base Unit
  • 2x ClickShare USB Type-A Wireless Button
  • DC Adapter
  • Documentation
  • Barco 39 Month Warranty
