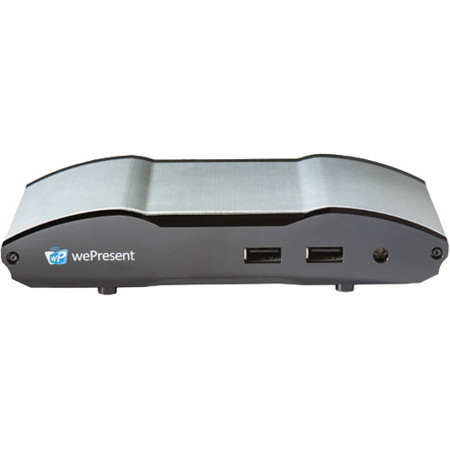

Barco wePresent WiPG-1600W Wireless Presentation System

SKU: BAR986160WNA

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Barco wePresent WiPG-1600W Specifications

  • Operating System

    Windows 7, 8, 10 and above
    macOS X 10.9 and above
    Chromebook OS 74 and above
    Android 4.1 and above
    iOS 9 and above

  • Native Industry Standard Support

    Apple AirPlay

  • Video Output

    1x HDMI
    1x VGA

  • Frame Rate

    Up to 30 fps

  • Output Resolution

    Up to 1080p

  • Connected Users

    Up to 64

  • Sources

    Up to 4 simultaneously with fixed screen layout

  • Audio Outputs

    HDMI
    Analog via audio jack 3.5mm

  • Authentication Protocol

    WEP
    WPA / WPA2 PSK
    WPA / WPA2 Enterprise
    Station mode 802.1X EAP

  • Wireless Transmission Protocol

    2.4G (b/g/n) / 5G (a/n) switchable

  • Interfaces

    1x 15 pin VGA (back)
    1x RJ-45 Ethernet LAN (back)
    1x HDMI (back)
    2x USB 2.0 (front) + 1x USB 2.0 (back)
    1x Stereo phone jack (back)
    1x LED power button (front)
    1x Reset Button (bottom)

  • Power Consumption

    15.3W (Full load power consumption)

    Under test conditions:
    Power source: DC 5V
    SW version: 1.0.0.5
    HW version: 0.53
    USB port: 0.5A load each port (totally 3 ports)
    Wi-Fi: 2.4G/11n (project four 1080p video stream)
    Ethernet port: Ping packet
    HDMI: Output 4-in-1 screen
    VGA: Output 4-in-1 screen
    Phone jack: Connect to speaker

  • Heat Dissipation

    18.755BTU/hr

  • Environmental Temperature

    Operation temperature: 0 to 40 deg. C (32 to 104 deg. F)
    Storage: -10 to 70 deg. C (14 to 158 deg. F)

  • Environmental Humidity

    Operational: <=90%
    Storage: <=85% RH

  • Dimensions

    159 x 91 x 29.9mm (6.26 x 3.58 x 1.18")

  • Weight

    293g (10.34 oz)

  • UPC Code

    841998100071

About Barco wePresent WiPG-1600W

Like all wePresent models, WiPG-1600W offers cross-platform compatibility allowing Windows, macOS, Chromebook, Android and iOS devices to present and interact together. WiPG-1600W also offers support for Apple AirPlay, allowing users to present using Apple's native protocol.

Offering the most features for interactive experiences; part wireless system, part media streamer, part perfection
• Flexible networking via wired LAN, wireless LAN or both at once
• USB connectivity
• Full 1080p resolution and low latency video streaming
• On screen annotation for more interactive presentations
• Power-over-Ethernet (PoE) for flexible and simple installations

Bringing people & ideas together
WiPG-1600W offers all the features found in the WiPG-1000 plus smart and considerate upgrades. The on screen annotation and virtual whiteboard features enable presenters to highlight key points and elaborate on ideas during their presentation. Using a USB mouse plugged into the unit, presenters can easily annotate on screen and access conference control features for moderators without a touchscreen display.

Quick connection for guests
WiPG-1600W offers a variety of connection styles to suite any environment. Using the onboard USB port, presentations of documents, media and video can be completed without any PC/Mac/mobile device. Guests can connect and present using a USB token that runs MirrorOp software without installation on their device or they can launch software directly from the wePresent unit, enabling guests to present without installing software.

Solutions to engage your audience
With WebSlides, presenters can ensure their audience remains engaged and focused on the content being shared. With this feature enabled, all connected audience members can view content being projected to the display and any on screen annotations on their own device in real time. 1 to many distribution allows presentation content to be displayed simultaneously to multiple network-connected wePresents, an ideal solution for large meeting or learning experiences. WiPG-1600W promises to take your presentation experience to a new, interactive level.

What's in the box:

  • Barco wePresent WiPG-1600W Base Unit
  • Power Adapter (DC +5V/ 2.6A)
  • 2x Detachable Antennas
  • Wall-Mount Kit
  • Quick Start Guide
  • CE DoC & Warning Statement
  • Barco 39 Month Warranty
