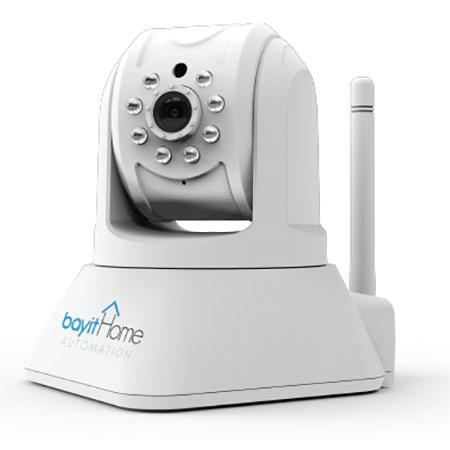

Bayit Cam HD 720p Wi-Fi IP Video Camera with Night Vision

SKU: BAYBH1960

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Bayit BH1960 Camera Specifications

  • System


    P2P
    Free, Plug & Play, no port forwarding

    PC Client CMS
    1, 4, 9, 16, 25, 36 multiple windows in center management system; recording and alarm

    Operation System
    Linux

  • Main Chipset



    DSP
    32Bit RSIC Embedded Processor

    Sensor
    1/4" CMOS

    Memory

    64M (DSP built-in)

    FLASH
    16M

    Compression format
    H.264

  • Video


    Pixel
    1 Megapixel

    Frame Rate
    1fps to 20fps

    Resolution
    1280 x 720, VGA 640 x 352, QVGA 320x176

    Lux
    .4 lux / f:1.2

    SNR
    > 48DB

    Lens
    M12/2.8mm F1.2; angle of view 75 Degrees; 3X digital zoom

    WB&BLC
    automatic

    IR
    850 nm wavelength; IR angle 90 degrees

  • Night Vision


    Distance
    IR distance 8m, photoresistor sensitivity 0-5 Lux

    Talk
    Two-way audio

  • Audio


    Format
    G711/726

    Speaker
    1W, 8 ohms

    Microphone
    -52DB

    Motor Control
    2 motors, built-in

  • Structure


    IR-CUT
    Auto switch without color cast

    Pan & Tilt
    Horizontal 355 degrees; Vertical 120 degrees

    Wire
    RJ-45; 10-100Mb

  • Network


    Online Limit
    Up to 3 visitors online for first and second stream

    Support IP Address
    Static IP, Dynamic IP, PPPOE

    Protocol
    Support TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PP

    WiFi
    WIFI IEEE 802.11B/G/N

  • Wireless


    Antenna
    2.4GHz 2dBi antenna

    Transmission Rate
    150Mbps (maximum)

    Type
    TF card, supports 24-hour continuous recording

  • Recording


    Micro SD Size
    128GB maximum

    Format
    AVI

    Protocol
    Compatible with onvif 2.1

    Material
    Plastic (ABS)

  • Power


    Frequency
    50Hz / 60Hz

    Assembly
    For indoor use

  • Environment


    Temperature
    -10 to +50 degrees C

    Humidity
    10% to 90% RH

  • Motion Detection


    Detection zones
    Supports 1 detection area for mobile and 4 areas for PC

    Alarm Notification
    Push notification for iPhone/Android app; uploads images to email address

    Certificate
    ISO FCC CE

  • UPC Code

    857510005175

About Bayit BH1960 Camera

With multiple motion detection zones, mobile and desktop push notifications, a wide range of frame rate options and settings, and year-round functionality, the BH1960 from Bayit Home security systems lets you keep an eye on your house, your pets, your kids, or your office. And thanks to additional WiFi and wireless connectivity options, you can start streaming anytime from anywhere.

This camera accepts storage options up to 128GB, meaning that a slower frame rate will allow you to record for days on end without changing the memory card. It's also equipped with infrared imaging to pick up things another camera might miss altogether, and the built-in audio feeds are helpful to monitor any indoor environment, whether it's high noon or the middle of the night.

Camera memory
The camera accepts Micro SD cards as large as 128GB, but will take any smaller card as well. Adjust the frame rate to capture more or less images in a given span of time.

Functionality
Temperatures as low as 10 C and as high as 50 C are no problem, and the camera can operate in extremely humid climates; it's rated to run in 90% relative humidity.

720p Footage
A mid-high resolution image allows you to see everything that's going on without filling up a memory card at full-HD speeds.

Mobile Connectivity
Download the Bayit mobile app to control yo ur camera and stream footage anytime, anywhere, and receive push notifications when the camera's motion detector is activated.

Key Features

  • Motion activation and detection
  • Mobile access and streaming
  • Infrared capabilities
  • WiFi connectivity
  • Year-round functionality
  • 720p capture

What's in the box:

  • Bayit BH1960 Camera
  • Power Adapter
  • Bayit 1 Year Warranty
