The powerbase function allows the charger to deliver the energy of the battery over the XLR-4 output when the charger isn't plugged into an AC source. This is particularly useful for keeping your equipment powered when you're on the go.
The All Channel Status indicator provides visual cues about the charging status. Green indicates the charger is turned on with no battery connected, red signals that a battery is placed on the corresponding channel and the charging process has begun, and it turns back to green when the battery is fully charged. If the indicator turns yellow, it means the charging process has failed due to damage or a safety reason.
No, the AS2-RL charger cannot function as a charger and an AC adapter simultaneously. The charging function always takes precedence.
The built-in cooling fan is activated during the charging process. It helps to keep the charger at an optimal operating temperature, extending its lifespan and ensuring safe operation.
The maximum load that the AS2-RL charger can handle depends on the batteries used. Battery power will be available over the XLR 4 DC Output when one or two full batteries are placed on the charger.
Review Summary
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
3-Stud Gold Mount compatible
2 simultaneous
16.8V / 2.5A
16.5V / 5.0A
XLR 4 1minus 4plus
90-264V / 47-63Hz
14 Degree F to 95 Degree F (-10 Degree C to +35 Degree C)
A45micro, A98micro, A150micro
3.93 x 9.09 x 5.55" (100 x 231 x 141mm)
2.20 lb (1.0kg)
4251244132071

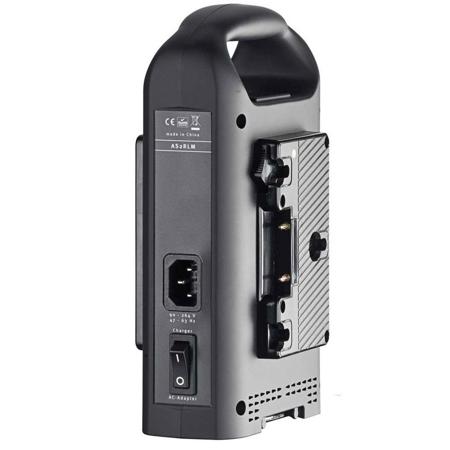

It's time to power up your Rouge Gold Mount Li-Ion Batteries with the AS2-RL 2-Channel 3-Stud Portable Simultaneous Charger. This high-capacity charger is equipped with a built-in AC adapter, capable of delivering a robust 5A 15.0V over the XLR-4 socket.
One of the standout features of this charger is its powerbase function. When batteries are positioned on the charger and it's not connected to an AC source, the battery's energy is conveniently delivered over the XLR-4 output. This ensures your equipment stays powered, even when you're on the go.
The AS2-RL charger is designed with user-friendly indicators for each charging channel. When the charger is powered on without a battery, the All Channel Status indicator illuminates green. Once a battery is connected, the indicator turns red to signal the start of the charging process. Upon full charge, the indicator reverts to green. In the event of a charging failure due to damage or safety concerns, the indicator turns yellow, providing a clear visual cue of the issue.
The built-in cooling fan is activated during the charging process, ensuring the charger remains at optimal operating temperature. This feature extends the life of the charger and ensures safe operation.
The AS2-RL charger doubles as an AC adapter, providing flexibility in its use. However, it's important to note that the charging function always takes precedence and both functions cannot be used simultaneously. The AC adapter can deliver up to 5.0A under 16.5V, providing ample power for your devices.
To use the powerbase function, simply disconnect the AC cord from the charger and place one or two fully charged batteries on it. Battery power will then be available over the XLR 4 DC Output. The maximum load depends on the batteries used, ensuring you always have a reliable power source for your electronics.
In summary, the AS2-RL 2-Channel 3-Stud Portable Simultaneous Charger with Built-In AC Adapter is a versatile and reliable solution for charging your Rouge Gold Mount Li-Ion Batteries. Its user-friendly features and robust power output make it an essential tool for all your charging needs.
