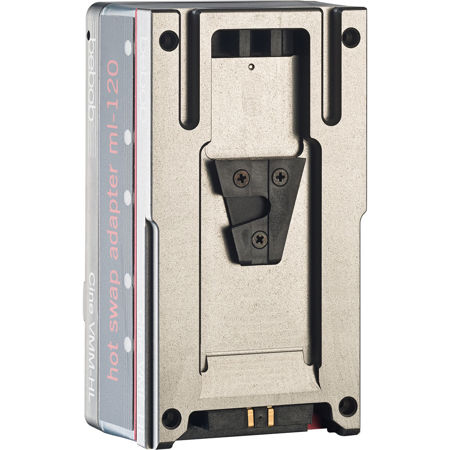

bebob High Load Hot Swap Adapter for V-Mount Cameras

High current capability
Thanks to the unique V-Mount CINE connection and the CINE-VMM HL camera plate, the battery can continuously deliver 20A without risking any damage - neither to the connector pins, nor to the cells (Trimix HL cells).

Refit
bebob batteries aren't disposables but durable equipment. When the capacity has become insufficient after years of use, batteries can be easily re-celled in our factory!

Charging
• The ML-120V/V-HL charges itself from the V-Mount battery
• At first charge or If completely empty, the ML-120V/V-HL will be ready to use after 60 minutes
• While Charging the yellow "Charging" LED turns on
• When fully charged the green "Ready" LED turns on
• The ML-120V/V-HL charges itself automatically when needed.
• During charging The ML-120V/V-HL keep monitoring the voltage of the battery and is ready to switch if needed

Battery Swap
• The ML-120V/V-HL detects a battery as empty when the voltage drops below 12.5V
• The ML-120V/V-HL instantly takes over powering the ARRI Alexa and the D-Tap port for a maximum of 2 minutes and displays a red LED alarm
• The LED Alarm flashes for 90s, turns to solid for the last 30s.
• After the empty battery has been replaced by a charged one (voltage under load of over 14,5V), powering of the ARRI Alexa instantly reverts to the V-Mount battery.
• The ML-120V/V-HL switches up to 6 Times before running empty
• If the empty battery is not replaced within 2 minutes the ML-120V/V-HL and the ARRI Alexa will switch off.

Alarm LED's brightness
• To allow the Alarm LED to be visible in bright environments (sunlight etc.) but not disturbingly over bright in darker environments (studio etc.), the ML-120 has automatic brightness adjust.
• The brighter the environment the brighter the alarm LED will show.
• The environment light detector is located at the top - middle of the ML-120 housing.
• Covering the housing (with tape for instance) will switch off the automatic brightness adjust and the alarm LED will flash with minimum brightness
