Back-Bone BBRC2001A Ribcage AIR Mod Kit for GoPro Hero4 Camera

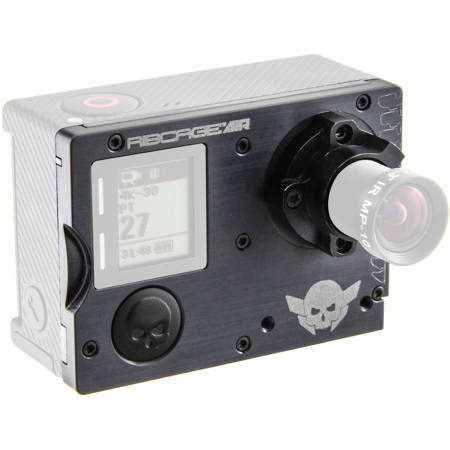

Do it yourself if you like to tinker! Install Back-Bone's custom, all aluminum Ribcage AIR mod kit on any GoPro Hero4 Silver or Black (not included ). Your camera will then be able to take micro M12, CS-Mount or C-Mount lenses. Designed for small UAVs and GoPro stabilizers the Ribcage AIR was built specifically to fit the 3DR Solo gimbal! Their premium machined aluminum plates are 50% lighter than their standard Ribcage Hero4 Mod.

Designed from the ground up to be as light as possible, the new Ribcage AIR Mod Kit for GoPro Hero4 is perfect for any aerial platform but they designed it specifically with the 3DR Solo in mind. Benefit to the max from 3DR's unique camera control - only now with interchangeable lenses to get exactly the look you want. Many distortion free wide angle lenses are available. Use M12 lenses under 10 grams on the Solo or most other small GoPro handheld or aerial gimbals. Use CS, C-mount or larger lenses on bigger aerial platforms and gimbals. You can even fly with some great vintage D-Mount and Bolex lenses.

All of the lens mounting rings are easily removable for filter replacement and sensor cleaning. Combine up to two custom filters in camera at the same time. You won't need filters for all your different lenses anymore, just for the camera! Now you can use ND, cold mirror, NDVI and other custom wavelength filters with your M12 lenses or lenses that have no filter threads on the front. Choose from their line of tried and tested high resolution lenses or use your own. Browse through their library of high resolution lenses to find the right lens for your needs!

• Specially designed to fit the 3DR SOLO gimbal!
• New 'Deep Socket' M12 mount is compatible with even more lenses, reducing the need for heavy adapters
• Out of the box compatibility with M12(S-Mount), CS-Mount, C-Mount lenses and accessories
• Combine up to two different filters of two different sizes in camera at the same time
• Fully compatible with the EXO mini Mounting Bracket
• Easily removable mounting rings allow access to the image sensor for cleaning and adding/removing filters
• Adjustable flange distance

Transform your GoPro Hero4 Black or Silver into small form factor 4K camera with interchangeable lenses! It's the GoPro Hero4 that you know and love, but supercharged with Back-bone's custom all aluminum Ribcage AIR mod kit. Now you have the ability to pick the perfect lens for any situation so you can shoot in amazing 4K 30fps or at 1080p at speeds up to 120fps (Hero4 Black). Out of the box the Ribcage is compatible with micro M12, CS-Mount and C-Mount lenses. You can attach virtually any other type of manual lens via readily available C-Mount adapters found in their shop. Take advantage of what professional lenses have to offer: manual focus control, a more cinematic depth of field, macro shooting, optical zoom and iris control.

You'll receive a removable tripod mount so you can connect your camera to professional mounts and supports. Want night vision Just take out the IR cut filter so you can see in the dark with any IR light source! Have a difficult lens Use the adjustable flange distance feature to get the perfect results. The Ribcage AIR modified camera can be configured with a removable IR-cut filter for maximum versatility and easy cleaning of the filter and sensor if required.

Note

M12 lenses under 10 grams recommended for Solo and other GoPro gimbals. Back-Bone's 'DEAD WEIGHT' gimbal balancing kit for Solo recommended for best results and to reduce wear on the gimbal. CS and C-Mount lens types are too heavy for GoPro based gimbals. These are recommended only for larger platforms.

CS and C-Mount lenses are too heavy for Solo or other GoPro gimbals, use them only with a larger aircraft or gimbal. Stick to M12 lenses 10 grams and under as a general rule for GoPro gimbals. Their 'DEAD WEIGHT' gimbal balancing kit for Solo is recommended.
