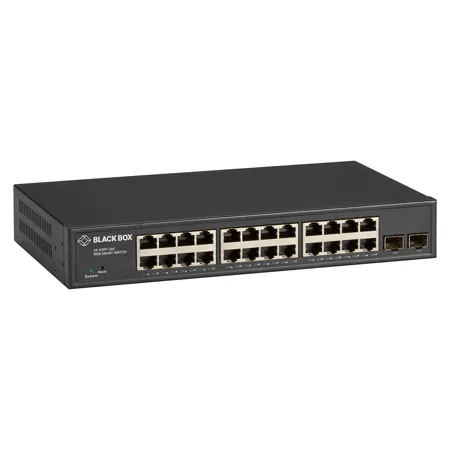

Black Box LGB2000 Series 24-Port PoE+ Web Smart Gigabit Ethernet Managed Switch with 2 SFP Ports

SKU: BBXLGB2126A MFR: LGB2126A
Earn VIP Reward Points

Key Features

  • Effortlessly power your devices with 24-port PoE+ support, simplifying network deployment.
  • Achieve lightning-fast data transfers with Gigabit Ethernet speeds for a seamless experience.
  • Enjoy robust network control and security with this reliable managed switch solution.
  • Integrate fiber optic connections using the two SFP ports for extended reach.
  • Optimize your network's performance with advanced web smart management features.
  • The versatile form factor allows for both desktop and rackmount installations.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$79.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Black Box LGB2000 Web Smart Switch Specifications

  • Color

    Black

  • Compatibility

    GigaBase 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85, etc.)

  • Approvals

    FCC, UL, CE, RoHS

  • Distance

    Copper: 328' (100m) maximum;

    With optional SFP Optical Transceivers:
    LFP411: Multimode fiber: 1804.4' (550m) maximum;
    LFP413: Single-mode fiber: 6.2 mi. (10km) maximum;
    LFP414: Single-mode fiber: 18.6 mi. (30km) maximum

  • MAC Addresses

    8K

  • Operating Humidity

    10 to 90% non-condensing

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power

    100-240 VAC, 50-60 Hz, autosensing

  • Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q

  • Connectors

    24x RJ45
    2x SFP

  • Indicators

    LEDs:
    Per unit: 1x PWR, 1x CPU
    Per port: 1x LINK/ACT, 1x 10/100/1000 Mbps
    Also Ports 17-18: 1x SFP

  • Dimensions (H x W x D)

    1.7 x 11 x 6.5" (4.3 x 27.9 x 16.5cm)

  • Weight

    5.5 lbs (2.5kg)

  • UPC Code

    822088142737

About Black Box LGB2000 Web Smart Switch

This layer 2 switch delivers high performance, scalability, and availability for your LAN access network.

The Eco Fanless Gigabit Smart Switch enables you to connect Gigabit Ethernet, Fast Ethernet, or Ethernet devices. You can populate two switch ports with the optional Small Form Factor Pluggable (SFP) Optical Transceivers and connect to fiber-based Gigabit Ethernet. The switch offers the versatility you need in growing your network the green way. And it offers browser-based management capability plus Quality of Service (QoS), port mirroring, and tag- and port-based VLAN.

Web smart.
The switch has the easy-to-use management capabilities network administrators need. Simply access a switch via your Web browser and log on to monitor, configure, and control each port's activity. It also supports SNMP V1/V2c. In addition, the switch supports Quality of Service (QoS), port mirroring, and tag- and port-based VLAN.

Put some fiber in your data diet.
The last two ports give you the option to connect to fiber-based Gigabit Ethernet. Add one of our Small Form Factor Pluggable (SFP) Optical Transceivers (sold separately) for short-, medium-, or long-distance fiber-optic connections. The transceivers are hot-swappable and available in multimode and single-mode versions. They are Layer 1 devices, which makes them transparent to your application.

Keeping it real-time.
This switch not only supports Layer 2 802.1p Priority Queue control, but it also provides enhanced QoS support for real-time applications like Voice over IP (VoIP). And it supports Layer 4 TCP/UDP port and ToS classification.

Mirror, mirror on the port.
Port mirroring copies traffic from one specific port to a second target port. This mechanism enables you to track network errors or abnormal packet transmissions without interrupting the flow of data. All ports on the switch are capable of port mirroring.

The traffic report.
You can use VLAN to isolate traffic between different users and thus provide better security. Plus VLAN enables you to confine the broadcast traffic to the same VLAN broadcast domain to boost network performance. IGMP V1/V2 snooping limits bandwidth-intensive multicast traffic to only the requesters.

Life in the fast lane.
The switch enables you to combine ports to create a multilink, load-sharing trunk. Port trunks are useful for switch-to-switch cascading, which provides very fast, full-duplex speeds for high-volume communications. With this switch, you can set up to 12 ports per trunk. This switch supports up to 8 trunking groups. All ports are autosensing for speed and auto-negotiating for duplex. The switch's Auto MDI/MDI-X feature means you never need a crossover cable. Furthermore, the switch supports IEEE 802.x flow control for full-duplex mode and collision-based backpressure for half-duplex mode.

Note: Combo ports support both RJ-45 and SFP interfaces, but only one can be active. To add fiber-based Gigabit Ethernet connections to the switch's dual-media ports, order: Small Form Factor Pluggable (SFP) Optical Transceivers (LFP411, LFP413, LFP414)

Black Box LGB2000 Web Smart Switch Features

  • Provides 10/100/1000 Gigabit UTP ports, plus 2x SFP ports that support Gigabit fiber speeds
  • Management interfaces include HTTP, SNMP
  • Configurable QoS parameters for prioritizing and managing traffic
  • 802.3az Energy-Efficient Ethernet saves on power costs

Key Features

  • Effortlessly power your devices with 24-port PoE+ support, simplifying network deployment.
  • Achieve lightning-fast data transfers with Gigabit Ethernet speeds for a seamless experience.
  • Enjoy robust network control and security with this reliable managed switch solution.
  • Integrate fiber optic connections using the two SFP ports for extended reach.
  • Optimize your network's performance with advanced web smart management features.
  • The versatile form factor allows for both desktop and rackmount installations.

What's in the box:

  • Black Box LGB2000 Series 24-Port PoE+ Web Smart Gigabit Ethernet Managed Switch with 2x SFP Port
  • AC Power Cord
  • 4x Adhesive Rubber Feet
  • 2x Rackmount Bracket
  • 6x Screws
  • User Manual
  • Black Box 1 Year Limited Warranty
