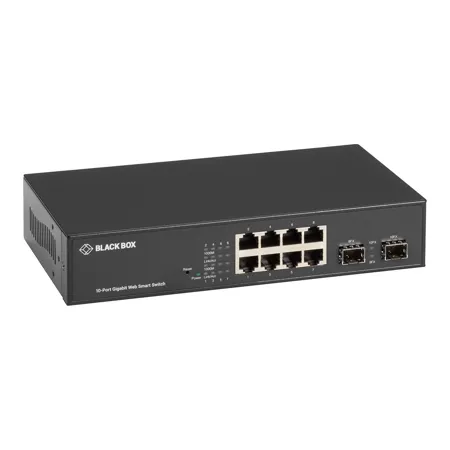

Black Box LGB700 Series 8-Port PoE+ Web Smart Gigabit Ethernet Managed Switch with 2 SFP Ports

SKU: BBXLGB710A MFR: LGB710A
$175.00
Earn VIP Reward Points

Key Features

  • Effortlessly expand your network with 8 Gigabit Ethernet ports, perfect for home or small office use.
  • Enjoy reliable Power over Ethernet (PoE+) for IP cameras and wireless access points, simplifying installations.
  • Benefit from advanced web smart managed features, providing easy control over your network traffic and security.
  • Connect to fiber optic networks seamlessly using the two dedicated SFP ports for extended reach and speed.
  • Experience superior brand reliability with Black Box, ensuring consistent performance for your networking needs.
  • Optimize your data flow with a robust 20Gbps switching capacity, handling demanding applications with ease.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Black Box LGB700 Web Smart Switch Specifications

  • Color

    Black

  • Compatibility

    GigaBase 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85, etc.)

  • Approvals

    CE, RoHS, EN 55022:2010 Class A, IEC 61000-3-2:2005, +A1:2008+A2:2009, IEC 61000-3-3:2008, FCC Part 15 B & C ISPR22, Class A; Council Directives: 2004/108/Ed;2006/95/EC; 2011/65/EU

  • Connectors

    Ethernet: 8x RJ-45; 2x SFP

  • Forwarding Rate

    1,488Mpps

  • Indicators

    Per Port LEDs: 1x Link/Act, 1x 1000M;
    Per Unit LEDs: 1x Power

  • Jumbo Frames

    9.6KB

  • MAC Addresses

    8K

  • Management

    HTTP via embedded Web server

  • Operating Humidity

    5-90% (non-condensing)

  • Operating Temperature

    32 to 113 F (0 to 45 C)

  • Packet Buffers

    512KB

  • Ports

    10x Total ports
    8x RJ45 (10/100/1000 Mbps)
    2x SFP Uplinks (100/1000 Mbps)
    Console: none

  • Power

    Internal power supply: Autosensing 100-240 VAC, 50-60 Hz, 15 watts maximum

  • Standards

    IEEE 802.3, 802.3u, 802.3ab, 802.3z 802.3az, 802.1Q, 802.1p, 802.3ad

  • Storage temperature

    -4 to 158 F (-20 to 70 C)

  • Switching Capacity

    20Gbps

  • Dimensions (H x W x D)

    1.7 x 9 x 4.9" (4.3 x 22.9 x 12.4cm)

  • Weight

    31.75 oz (900g)

About Black Box LGB700 Web Smart Switch

This layer 2 switch delivers high performance, scalability, and availability for your LAN access network.

The Eco Fanless Gigabit Smart Switch enables you to connect to up to 10 Gigabit Ethernet, Fast Ethernet, or Ethernet devices. You can populate two switch ports with the optional Small Form Factor Pluggable (SFP) Optical Transceivers and connect to fiber-based Gigabit Ethernet. The switch offers the versatility you need in growing your network the green way. And it offers browser-based management capability plus Quality of Service (QoS), port mirroring, and tag- and port-based VLAN.

Web smart.
The switch has the easy-to-use management capabilities network administrators need. Simply access a switch via your Web browser and log on to monitor, configure, and control each port's activity. It also supports SNMP V1/V2c. In addition, the switch supports Quality of Service (QoS), port mirroring, and tag- and port-based VLAN.

Put some fiber in your data diet.
The last two ports give you the option to connect to fiber-based Gigabit Ethernet. Add one of our Small Form Factor Pluggable (SFP) Optical Transceivers (sold separately) for short-, medium-, or long-distance fiber-optic connections. The transceivers are hot-swappable and available in multimode and single-mode versions.

Keeping it real-time.
This switch not only supports Layer 2 802.1p Priority Queue control, but it also provides enhanced QoS support for real-time applications like Voice over IP (VoIP). And it supports Layer 4 TCP/UDP port and ToS classification.

Mirror, mirror on the port.
Port mirroring copies traffic from one specific port to a second target port. This mechanism enables you to track network errors or abnormal packet transmissions without interrupting the flow of data. All ports on the switch are capable of port mirroring.

The traffic report.
You can use VLAN to isolate traffic between different users and thus provide better security. Plus VLAN enables you to confine the broadcast traffic to the same VLAN broadcast domain to boost network performance. IGMP V1/V2 snooping limits bandwidth-intensive multicast traffic to only the requesters.

Life in the fast lane.
The switch enables you to combine ports to create a multilink, load-sharing trunk. Port trunks are useful for switch-to-switch cascading, which provides very fast, full-duplex speeds for high-volume communications. All ports are autosensing for speed and auto-negotiating for duplex. The switch's Auto MDI/MDI-X feature means you never need a crossover cable. Furthermore, the switch supports IEEE 802.x flow control for full-duplex mode and collision-based backpressure for half-duplex mode.

Black Box LGB700 Web Smart Switch Features

  • Provides 8x 10/100/1000 Gigabit UTP ports, plus 2x SFP ports that support 100/1000Mbps fiber speeds
  • Go green and reduce energy costs. Supports the IEEE 802.3az Energy Efficient Ethernet standard
  • Configure and manage the switch through your web browser
  • Configurable QoS parameters for prioritizing and managing traffic
  • Includes two SFP ports for fiber 100/1000Mbps Ethernet uplinks with an SFP Optical Transceiver
  • Web smart features provide easier manageability, security, QoS, and performance
  • Provides enhanced QoS support for real-time applications
  • It's fanless so it reduces noise, moving parts, and the chance for failure
  • It reduces power consumption by turning off ports that are not in use
  • Port mirroring enables you to isolate network errors without disrupting data flow
  • Port- and tag-based VLAN
  • Ports auto-sense for speed and auto-negotiate for duplex
  • Supports loop detection for maintenance

Key Features

  • Effortlessly expand your network with 8 Gigabit Ethernet ports, perfect for home or small office use.
  • Enjoy reliable Power over Ethernet (PoE+) for IP cameras and wireless access points, simplifying installations.
  • Benefit from advanced web smart managed features, providing easy control over your network traffic and security.
  • Connect to fiber optic networks seamlessly using the two dedicated SFP ports for extended reach and speed.
  • Experience superior brand reliability with Black Box, ensuring consistent performance for your networking needs.
  • Optimize your data flow with a robust 20Gbps switching capacity, handling demanding applications with ease.

What's in the box:

  • Black Box LGB700 Series 8-Port PoE+ Web Smart Gigabit Ethernet Managed Switch with 2x SFP Port
  • Power Cord
  • 2x Rackmount Brackets
  • 8x Screws
  • Black Box 1 Year Limited Warranty
