BirdDog 4K 12G-SDI NDI Encoder/Decoder
See all BirdDog items

BirdDog 4K 12G-SDI NDI Encoder/Decoder

SKU: BD4KSDI MFR: BD4KSDI
Be the first to review this itemAsk a Question
$1,099.00
OR
$92/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture & transmit pristine 4K video with this reliable 12G-SDI NDI encoder/decoder.
  • Enjoy low latency streaming; perfect for live events, broadcasts, and dynamic presentations.
  • Simplify your workflow with seamless integration and wide compatibility across devices.
  • This encoder/decoder supports PoE+ for flexible power options in any broadcast environment.
  • Utilize the SFP+ slot for enhanced connectivity, ensuring a stable wireless connection.
  • Compact & lightweight design (0.57 lb) makes this 4K NDI encoder easily portable for on-location use.
See More Product Details
FREE 2-Day Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$89.99
3-Year Adorama Protect$109.99
4-Year Adorama Protect$139.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the 4K 12G-SDI NDI Encoder/Decoder?

The main function of the 4K 12G-SDI NDI Encoder/Decoder is to encode and decode 4K 12G-SDI video signals using NDI technology. It's designed for professional use in live events, broadcast, and post-production.

What are the benefits of the built-in cross converter?

The built-in cross converter allows seamless conversion between 12G SDI inputs and HDMI 2.0 outputs, and vice versa. This flexibility is essential for dynamic production environments where various video formats are used.

What does the SFP+ port offer?

The SFP+ port offers 10GbE connectivity, accommodating both short and long-range fiber connections. It also supports Ethernet protocols from 1GbE to 10GbE, making it a versatile tool for any setup.

What is the purpose of the NDI tally system?

The NDI tally system is designed for efficiency and ease of use. It includes a large, built-in Tally light for clear on-air talent signaling, as well as user-selectable Tally borders on loop out.

What is the Comms Lite software included with the device?

Comms Lite is a free Audio Intercom software included with the 4K Family. It supports up to four BirdDog devices and one Director. For enhanced communication capabilities, an upgrade to Comms Pro is available.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BirdDog 4K NDI Encoder/Decoder Specifications

Input

Input

Jump to...

  • Video Input Connectors

    1x BNC (12G-SDI)

  • Input Video Format

    SDI
    UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94 fps
    720p: 50/59.94/60 fps

  • Audio Input Connectors

    1x 1/8" (3.5mm) TRS

  • Embedded Audio Input

    SDI: 2-Channel

  • Video Output Connectors

    1x HDMI (HDMI 2.0)
    1x BNC (12G-SDI)

  • Output Video Format

    SDI
    UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94 fps
    720p: 50/59.94/60 fps

    HDMI
    UHD 4K: 23.98/25/29.97/30/50/59.94/60 fps
    1080p: 23.98/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94 fps
    720p: 50/59.94/60 fps

  • Audio Output Connectors

    1x 1/8" / 3.5 mm TRS Stereo

  • Embedded Audio Output

    SDI: 2-Channel
    HDMI: 2-Channel

Connectivity

Jump to...

  • Other I/O

    1x USB Type-A PoE

  • Expansion Slots

    1x SFP+ Slot

Hardware

Jump to...

  • Tally Light

    Yes

Power

Jump to...

  • Power Connector

    1x Barrel (12 VDC) Input
    1x RJ45 Input

  • PoE Support

    PoE+ 802.3at

  • Power Consumption

    Device: 16 W

General

Jump to...

  • Dimensions

    5.31 x 3.35 x 0.98" (13.5 x 8.5 x 2.5cm)

  • Weight

    0.57 lb (260g)

Other

Jump to...

  • UPC Code

    9354873000041

About BirdDog 4K NDI Encoder/Decoder

Next Level NDI® Tools.

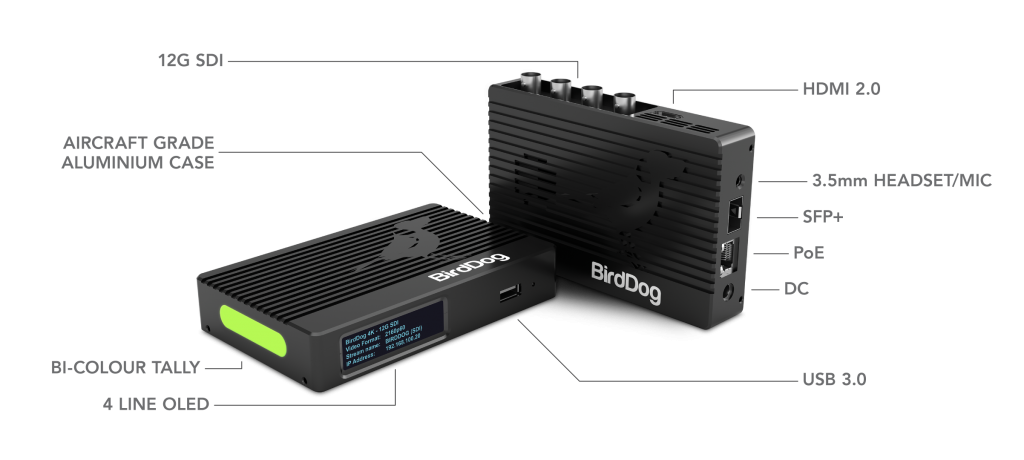

Following on from the award winning HD NDI® products, the 4K Family has been engineered from the ground up for real-world users. Built around BirdDog’s custom NDI® silicon chip and housed in an aircraft grade aluminium case, features include 12G SDI and HDMI 2.0 inputs and outputs, built-in cross converter, SFP+ port for 10GbE connectivity, active loop outs, audio intercom system, NDI® tally system, PoE, and compatibility with BirdDog’s Comms Pro and Central Pro apps.

Next Level NDI® Tools.

Encode & Decode up to 4Kp60.

With support for all resolutions up to 4Kp60, including all HD resolutions, Encoding and Decoding 4K Full NDI® has never been easier.

Encode & Decode up to 4Kp60.

12G & HDMI 2.0 connections.

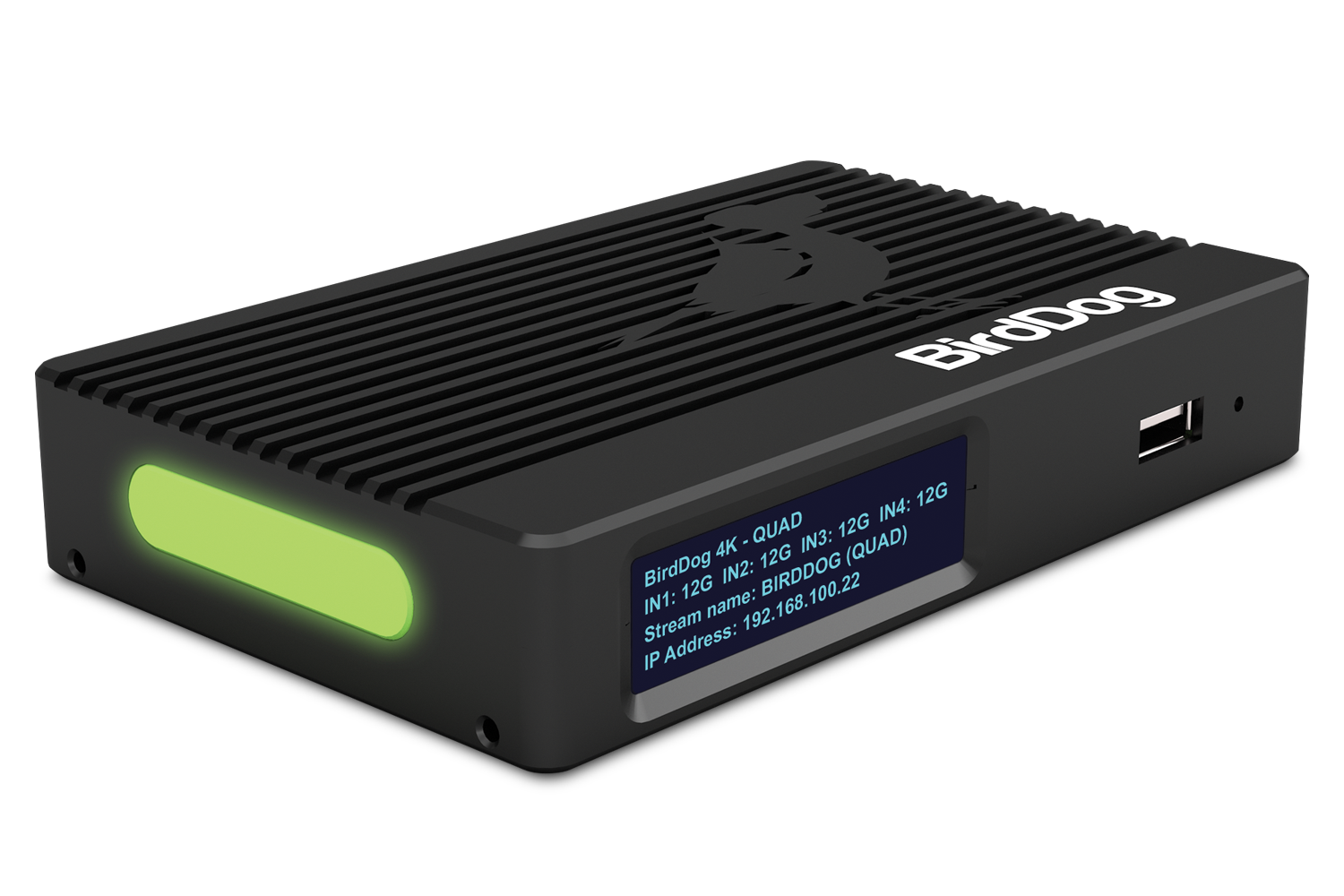

All SDI connectors on the 4K line are 12G SDI, including all four SDI connectors on 4K Quad. All the HDMI connectors are 2.0 for maximum compatibility with your sources and destinations.

12G & HDMI 2.0 connections.

NDI Tally that just works.

A full Tally system is built right into the 4K Family and it requires zero configuration. Includes a built-in large Tally light for your on-air talent to easily see which camera is live, plus user selectable Tally borders on loop out.

NDI Tally that just works.

PTZ Control.

With the optional USB to Ethernet dongle you can control any PTZ camera that supports NDI®, NDI|HX, or Visca over IP.

PTZ Control.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture & transmit pristine 4K video with this reliable 12G-SDI NDI encoder/decoder.
  • Enjoy low latency streaming; perfect for live events, broadcasts, and dynamic presentations.
  • Simplify your workflow with seamless integration and wide compatibility across devices.
  • This encoder/decoder supports PoE+ for flexible power options in any broadcast environment.
  • Utilize the SFP+ slot for enhanced connectivity, ensuring a stable wireless connection.
  • Compact & lightweight design (0.57 lb) makes this 4K NDI encoder easily portable for on-location use.

What's in the box:

  • 4K 12G-SDI NDI Encoder/Decoder
  • Power Supply
  • BirdDog 1 Year Limited Warranty
