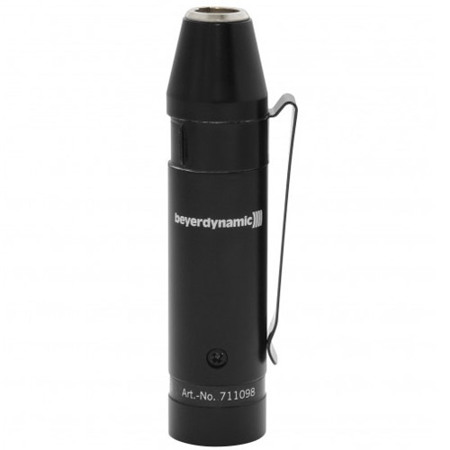

Beyerdynamic MA-PVA Phantom Power Adaptor with Mini-XLR 4pin Input
See all Beyerdynamic items

Beyerdynamic MA-PVA Phantom Power Adaptor with Mini-XLR 4pin Input

SKU: BD711098

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-07-15T03:21:05

Rated 5 out of 5

Great Product!

Great product with great customer service!

BRAD D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Beyerdynamic MA-PVA Specifications

  • Frequency response

    20 - 20,000 Hz

  • Noise voltage

    4.4 MuV [CCIR, Q-Peak]
    0.9 MuV [A, RMS]

  • Max. output voltage of MA-PVA at XLR

    1.6 V

  • Power supply

    11 - 52 V phantom power: P12-P48, P12L, SP48

  • DC voltage to microphone

    5.1 V

  • Power consumption

    2.7 mA approx.

  • Output impedance

    200Ohms

  • Nominal load impedance

    > 1 kOhms

  • Output connector

    3-pin XLR, male

  • Input connector

    4-pin mini XLR, male

  • Pin assignment

    TG pin assignment

  • Length

    82mm / 3.23"

  • Diameter

    19mm / 0.75" without clip

  • Weight

    53g / 1.87oz

  • UPC Code

    4010118711091

About Beyerdynamic MA-PVA

FEATURED REVIEWS

Great Product!

By BRAD D.

Great product with great customer service!

The MA-PVA power adapter is used for powering the Beyerdynamic condenser microphones such as headset, lavaliere or instrument microphones with mini XLR connection and TG pin assignment. It converts the phantom power coming from a balanced microphone input (pre-amplifier, mixing console etc.) into AB powering which is required by electet capsules. Due to its belt clip the MA-PVA can be attached to a belt or clothing.

Beyerdynamic MA-PVA Features

  • 4-pin mini XLR male (input)
  • 3-pin XLR male (output)
  • Belt clip
