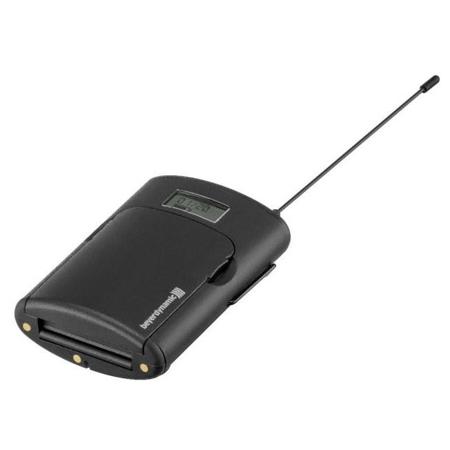

Beyerdynamic TG 500B UHF Beltpack Transmitter for Wireless System TG 500, 518-548 MHz
SKU: BD712108
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Beyerdynamic TG 500B
The ergonomic beltpack transmitters with a belt clip are practical in use with a weight of only 85 grams (without batteries). The transmission power can be switched between 10 mW and 50 mW. Settings are simple to configure on the receivers and are transmittedquickly and easily to the transmitters via infrared synchronisation. The integrated pilot tone function ensures interference-free transmission and warns when the battery power is running low. All transmitters are equipped with an LC display and have a programmable mute button.
A 10-hour battery operating time ensures uninterrupted operation,even during extended events. As an alternative to alkaline batteries,the transmitters can be operated with standard NiMH batteries, which can be recharged using the optional WA-CD charger without having to remove them from the transmitters.
Beyerdynamic TG 500B Features
- Ergonomic design and programmable power lock
- Infrared interface to transmit settings from the receiver to the transmitter
- 4-pin male mini XLR connector for microphones or instruments
- LC display
- 3-stage gain switch
- Programmable mute button
- Battery power LED
- Operating time: approx. 10 hours with 2 x 1.5 V AA batteries
- Transmission range up to 120 m
- Synchronisation of receiver and transmitter in less than one second
- Charging contacts for WA-CD charger
- Removable belt clips for horizontal & vertical mounting
- Pilot tone function
- Supplied with batteries and transport bag
