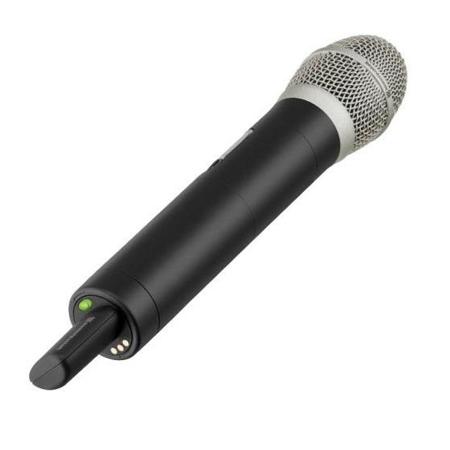

Beyerdynamic TG 500H-C UHF Handheld Transmitter with TG V56 Condenser Microphone Capsule for Wireless System TG 500

SKU: BD712205

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Beyerdynamic TG 500H-C Specifications

System
  • Frequency Range

    518 - 548 MHz

  • Transmission Range

    Up to 120 m(line of sight)

  • Number of Active Channels

    Max. 72 (when using all 4 bands)

  • Audio Frequency Response

    45 - 15 kHz

  • Audio Dynamic Range

    106 dB (A-weighted)

  • Operating Principle

    Analogue wireless microphone system with diversity receiver

UHF Handheld Transmitter

Jump to...
  • Display

    LCD

  • Power Supply

    2x AA NiMH or 2x 1.5 V Alkaline Batteries

  • Operating Time

    Approx. 10 hrs.

  • Ambient Temperature

    32 to 131 Degree F (0 to +55 Degree C)

  • Transmitting Power

    10 mW / 50 mW

  • Dimensions

    Length with Microphone Capsule: 10.35" (263mm)
    Shaft Diameter: 1.41" (36mm)
    Capsule Diameter: 1.89" (48mm)

  • Weight

    Without Batteries: 6.34 oz (180g)

  • UPC Code

    4010118712203

About Beyerdynamic TG 500H-C

The ergonomic handheld transmitters provide a good grip and arepractical in use with a weight of only 180 grams (without batteries).The transmission power can be switched between 10 mW and 50 mW. Settings are simple to configure on the receivers and are transmitted quickly and easily to the transmitters via infrared synchronisation. The integrated pilot tone function ensures interference-free transmission and warns when the battery poweris running low. All transmitters are equipped with an LC display andhave a programmable mute button.

A 10-hour battery operating time ensures uninterrupted operation,even during extended events. As an alternative to alkaline batteries,the transmitters can be operated with standard NiMH batteries,which can be recharged using the optional WA-CD charger without having to remove them from the transmitters.

Beyerdynamic TG 500H-C Features

  • Ergonomic design and programmable power lock
  • Infrared interface to transmit the settings from the receiver to the transmitter
  • TG V56 condenser capsule with cardioid polar pattern
  • LC display
  • 2-stage gain switch
  • Programmable mute button
  • Battery power LED
  • Operating time: Approx. 10 hours with 2x 1.5 V AA batteries
  • Transmission range up to 120 m
  • Synchronisation of receiver and transmitter in less than one second
  • Charging contacts for WA-CD charger
  • Pilot tone function
  • Supplied with batteries and transport bag

Key Features

  • Ergonomic design and programmable power lock
  • Infrared interface to transmit the settings from the receiver to the transmitter
  • TG V56 condenser capsule with cardioid polar pattern
  • LC display
  • 2-stage gain switch
  • Programmable mute button

What's in the box:

  • TG 500H-C UHF Handheld Transmitter with TG V56 Condenser Microphone Capsule
  • Batteries
  • Transport Bag
  • Beyerdynamic 2 Year Limited Warranty
