What resolution does the P400 4K UltraHD Full NDI 20x PTZ Camera provide?

The P400 4K UltraHD Full NDI 20x PTZ Camera provides a 4K UHD resolution (3840x2160), offering superior detail and clarity compared to many alternative cameras.

What are some of the professional-level color tools included with the P400 4K UltraHD Full NDI 20x PTZ Camera?

The P400 4K UltraHD Full NDI 20x PTZ Camera includes professional-level color tools such as Color Matrix control, Black level, and Gamma with 512 pre-set gamma positions.

How does the P400 4K UltraHD Full NDI 20x PTZ Camera perform in low light conditions?

In low light conditions, the P400 4K UltraHD Full NDI 20x PTZ Camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.

What are the output options for the P400 4K UltraHD Full NDI 20x PTZ Camera?

The P400 4K UltraHD Full NDI 20x PTZ Camera offers NDI, 6G-SDI, and HDMI simultaneous outputs, making it ready to integrate with your full NDI workflow or an SDI workflow.

What power options does the P400 4K UltraHD Full NDI 20x PTZ Camera offer?

The P400 4K UltraHD Full NDI 20x PTZ Camera can be powered by Power over Ethernet (PoE++) for single cable operation or by the included power adapter.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BirdDog P400 Specifications

Camera
  • Image Sensor

    1/2.5" CMOS 8.5MP

  • Lens

    4.4-88.4mm

  • Optical Zoom

    20x

  • SRZ (Super Revolution Zoom)

    30x in 4K, 40x in Full HD

  • Horizontal Angle of View

    70.2 Degree (W) - 4.1 Degree (T)

  • Aperture

    F2.0 (W) - F3.8 (T)

  • Min. Illumination

    Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

  • Shutter Speed

    1/1 - 1/10000s

  • Features

    Defog (Auto, 3 levels), Visibility enhancer, Black & White, E-Flip, Mirror, Color enhancement, Black level, gamma, Sat/Hue Adjust, HLC, Color Bar

  • WDR

    YES (130dB) - ND Filter: YES

  • Image Stabiliser

    YES

  • Colour Gain

    Yes (16 step)

  • Colour Hue

    Yes (16 step)

  • Gamma

    Standard, Straight, 512 pattern

  • Gamma Level

    Yes (72 step)

  • Black Level

    Yes (97 step) - Flicker Cancel: Yes

  • Noise Reduction

    On/Off (level 5 to 1/Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

  • Focus

    Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto¼

  • Exposure

    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

  • Back Light Compensation

    YES

Mechanical

Jump to...
  • Body Color

    Black

  • Pan Movement

    Horizontal: +/-175 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree - 100 Degree /S)

  • Tilt Movement

    Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree - 50 Degree /S)

  • Preset Positions

    128 Speed adjustable: Up to 150 Degree /S, 6 presets on remote controller)

  • Environmental

    Indoor

  • Operating Temperature

    32 to 104 Degree F (-10 to +40 Degree C)

  • Operating Humidity

    <=80%

Video Interface

Jump to...
  • Video Output

    NDI/HDMI/6G-SDI

  • 4k Video Formats

    4Kp 30, 29.97, 25, 23.98, 24

  • Had Video Formats

    1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25

  • Audio I/O

    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

Control Interface

Jump to...
  • IP PTZ Control

    NDI Control (auto configuring), VISCA Over IP

  • Serial PTZ Control

    2x RJ45: RS232 / RS422 / RS485 Connectors

  • Serial Control Protocol

    VISCA / Pelco D

Network

Jump to...
  • Video Compression

    Full NDI - i-frame high quality low latency NDI for production

  • Network Protocol

    NDI - Discovery, configuration and control

  • Web Control Interface

    Full control via Web/Mobile UI including Scene presets

  • Optional Mounts

    Ceiling mount, Wall mount

Power & Dimensions

Jump to...
  • Power Input

    12v DC, PoE++ (IEEE 802.3bt)

  • Dimensions

    5.8 x 6.26 x 8.54" (142 x 159 x 217mm)

  • Weight

    6 lbs (2.7kg)

  • UPC Code

    9354873000324

About BirdDog P400

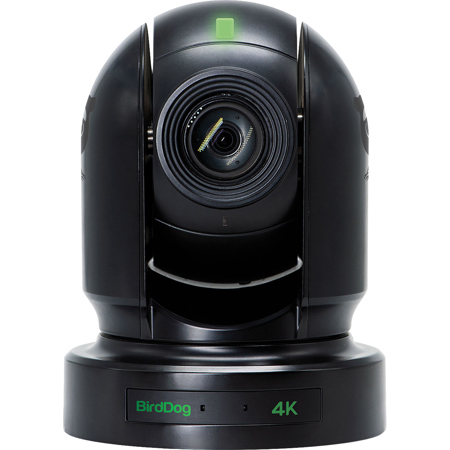

If you're seeking advanced, high-quality video surveillance and monitoring, the P400 4K UltraHD Full NDI 20x PTZ Camera with Sony Sensor, Black is the professional choice. This innovative and sophisticated camera boasts a 4K UHD resolution (3840x2160), providing superior detail and clarity compared to many alternatives.

The P400's 20x optical zoom capability offers exceptional flexibility in framing shots and capturing distant subjects. This camera is equipped with a Sony 4K CMOS Backlit sensor and a true Sony Image Module, ensuring stunning 4K resolution NDI.

The P400 is the world's first 4K NDI camera with chroma subsampling at 4:2:2, which can be decoded natively in hardware by BirdDog's 4K Family of NDI Encoders and Decoders. This feature allows for an automatic and virtual handshake, ensuring optimal performance.

This camera also includes professional-level color tools, including Color Matrix control, Black level, and Gamma with 512 pre-set gamma positions. With BirdDog Cam Control, you can access the entire color matrix, black levels, and gamma to shade your P400 like a pro.

In low light conditions, the P400 automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. With NDI, 6G-SDI, and HDMI simultaneous outputs, the P400 is ready to integrate with your full NDI workflow or an SDI workflow.

The P400's superfine robotics offer precise control, allowing for professional, dramatic shots or high action sports movements. The 20x optical zoom offers a bright F2.0 aperture with a super smooth and fast zoom.

The P400 can be powered by Power over Ethernet (PoE++) for single cable operation or by the included power adapter. Combine P400 with the BirdDog PTZ Keyboard for total control of all functions remotely.

With the free BirdDog RESTful API, you can program your own automation for all BirdDog hardware endpoints, including cameras. The P400 also offers adaptive bit rate, allowing you to select the bit rate to suit your bandwidth and requirements.

The P400 4K UltraHD Full NDI 20x PTZ Camera with Sony Sensor, Black is a sophisticated, high-quality solution for professional video surveillance and monitoring.

BirdDog P400 Features

  • Stunning 4K NDI with incredible color tools
  • 4:2:2 4K
  • BirdDog Cam Control
  • Incredible low light performance
  • Triple output. NDI, 6G-SDI and HDMI
  • Genlock
  • Superfine Robotics
  • 20x Optical Zoom. Fast and Crisp
  • Tally light
  • PoE or DC
  • RESTful API. DIY automation
  • Adaptive bit rate
  • Free Software Tools - Central Lite, Cam Control, Comms Lite
  • BirdDog and Bolin

Product Documents

User Manual

Key Features

  • 4K UHD resolution (3840x2160) for superior detail and clarity
  • 20x optical zoom for flexible framing and capturing distant subjects
  • Sony 4K CMOS Backlit sensor and true Sony Image Module for stunning 4K resolution NDI
  • Professional-level color tools, including Color Matrix control, Black level, and Gamma
  • Low light performance with automatic switch from day to night mode
  • Simultaneous NDI, 6G-SDI, and HDMI outputs for seamless integration with workflows

What's in the box:

  • P400 8.5MP 4K Full NDI PTZ Camera with 1/2.5" Sony Sensor (Black)
  • BirdDog 1 Year Limited Warranty (Additional 2 Year on Registration)
