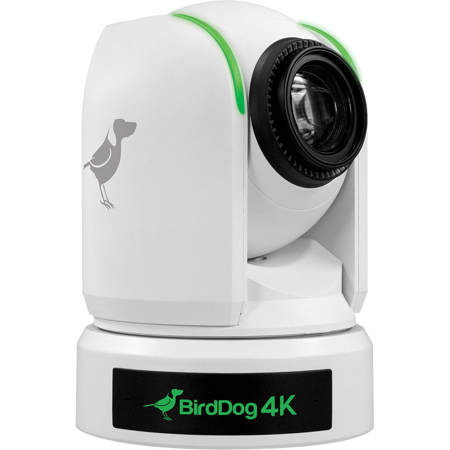

BirdDog P4K 4K UltraHD Full NDI 12x PTZ Camera with 1" Sony Sensor, White
See all BirdDog items

BirdDog P4K 4K UltraHD Full NDI 12x PTZ Camera with 1" Sony Sensor, White

SKU: BDBDP4KWHITE
Be the first to review this item

This item is no longer available.

Recommended Alternatives

BirdDog P4K: Picture 1 regular
BirdDog P4K 4K UltraHD Full NDI 12x PTZ Camera with 1" Sony Sensor, Black
$8,395.00
BirdDog MAX: Picture 1 regular
BirdDog MAX 8.29MP 4K Ultra HD NDI|HX3 HDMI/IP 12x PTZ Camera
$895.00
BirdDog P240: Picture 1 regular
BirdDog P240 FHD NDI/HDMI/3G-SDI 40x PTZ Camera,3-Pack w/12-Port Managed Switch
$8,995.00
BirdDog : Picture 1 regular
BirdDog X1 Full HD NDI|HX3 20x Zoom PTZ Camera
$995.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What resolution does the P4K 4K UltraHD Full NDI 12x PTZ Camera support?

The P4K camera supports 4K UHD resolution, providing high-quality video with exceptional clarity and detail.

Can the P4K camera be used for live streaming?

Yes, the P4K camera is equipped with Full Bandwidth NDI technology, making it ideal for high-quality live streaming with a visually lossless experience.

Does the P4K camera have zoom capabilities?

Yes, the P4K camera features a 12x optical zoom, allowing for flexible shot framing and the ability to capture distant subjects with precision.

What kind of sensor is included in the P4K camera?

The P4K camera boasts a 1-inch Sony Exmor R CMOS backlit sensor, renowned for its superior image quality and low-light performance.

Is it possible to synchronize multiple P4K cameras for a production?

Yes, the P4K camera includes a Genlock feature, which allows you to synchronize multiple cameras for seamless integration into professional production setups.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

BirdDog P4K Specifications

Camera

Camera

Jump to...

  • Image Sensor

    1.0-type back-illuminated Exmor R CMOS sensor

  • Number of effective pixels

    14.2 Megapixels

  • Picture elements

    3840 x 2160, 8.29 Megapixels

  • Lens

    Optical, 12X

  • Digital Zoom

    Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD.

  • Focal Length

    Horizontal Angle of View: 64.6 Degree (Wide) - 6.1 Degree (Tele)
    f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele)

  • Min. object distance

    80mm (Wide), 1000mm (Tele)

  • Aperture

    F2.8 Constant (W)-(T), 16 Steps

  • Min. Illumination

    0.5 lx (1/30 sec, 50%, High Sensitivity mode On)
    2.0 lx (1/30 sec, 50%, High Sensitivity mode Off)
    0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On)
    0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off)

  • Shutter Speed

    1/10000s to 1/8 (59.94/29.97)

  • Focus

    Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto)

  • Exposure

    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

  • Features

    High Sensitivity, Defog mode, Backlight Compensation, HLC, E-FLIP, Mirror, Flicker Control, Day/Night, Defog

  • WDR

    YES(130dB)

  • ND Filter

    YES

  • Image Stabiliser

    YES

  • Color Gain

    Yes (15 step)

  • Color Hue

    Yes (15 step)

  • Gamma

    Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern

  • Gamma Level

    Yes (15 step)

  • Black Level

    Yes (97 step)

  • Flicker Cancel

    Yes

  • Noise Reduction

    On/Off (level 5 to 1 / Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

Mechanical

Jump to...

  • Body Color

    White

  • Pan Movement

    Horizontal: +/-350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /S )

  • Tilt Movement

    Vertical: +90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /S)

  • Preset Position

    0-5 Level Adjustable

  • Preset Speed

    0-5 Level Adjustable

  • Preset Memory

    YES, ( Picture Profile Preset-Preset Memory for image parameters)

  • Quietness

    45db

  • Home Position

    Supported

  • Environmental

    Indoor

Video Interface

Jump to...

  • Video Output

    NDI/HDMI/6G-SDI

  • 4K Video Formats

    4Kp 30, 29.97, 25, 23.98, 24

  • HD Video Formats

    1080p 60, 59.94, 50, 29.97, 25 1080i 60, 59.94, 50
    720p 60, 59.94, 50, 29.97, 25

  • Audio I/O

    3.5mm Audio In (Stereo)
    3.5mm Audio Out (Stereo)

Interface

Jump to...

  • 4K Video Output

    1x Main 4K HDMI Type-A
    2x 6G-SDI or 2x Dual Link 3G-SDI(2SI only)

  • HD Video Output

    1x Main HD HDMI Type-A
    2x 3G-SDI

  • HDMI Color Space

    YCbCr, 4:2:2 RGB, 4:4:4

  • NDI Video Encode

    Full bandwidth NDI

  • NDI Version

    NDI v4.0 (Firmware upgradeable)

  • IP Video Stream

    UP to 4K/30 and 1080p60

  • Camera Control Interface

    RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control

  • Control Protocol

    NDI, VISCA, VISCA Over IP

  • LAN

    RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt)

  • External Sync. Input

    BNCX1, 75 Ohm, HD 3-level sync, SD Black Burst

  • Audio I/O

    1x Audio input, 1x Audio output, 3.5mm audio jack

  • Audio Output

    Embedded with main HDMI, 24bit Stereo
    Embedded with SDI, 24bit Stereo
    Embedded with NDI

  • Tally Light

    Front and Back

Environmental

Jump to...

  • Mount

    Ceiling mount, Wall mount, Tripod

  • Operating Temperature

    32 to 104 Degree F (-10 to +40 Degree C)

  • Operating Humidity

    <=80% Suitable for Use

  • Power Input

    12VDC, PoE++ (IEEE 802.3bt)

  • Power Consumption

    22W

  • Max Power Draw

    37.96W

  • Dimension

    6.5 x 7.72 x 9.72" (165 x 196 x 247mm)

  • Weight

    7.5 lbs (3.4kg)

About BirdDog P4K

Because the P4K 4K UltraHD Full NDI 12x PTZ Camera with 1" Sony Sensor is the epitome of advanced and high-tech camera technology, it delivers unparalleled image quality and performance. This state-of-the-art camera is equipped with a 1" Sony Exmor R CMOS backlit sensor, boasting 14.4 million effective pixels. This innovative feature enables the P4K to produce stunning visuals in 4K resolution with Full Bandwidth NDI, ensuring superior light sensitivity and making it an ideal choice for all broadcast applications.

The P4K camera's sophisticated design is centered around its massive sensor, which is considered the best in its category. Whether you're shooting in HD or 4K, this camera guarantees truly breathtaking images in all modes and frame rates.

In the realm of NDI, the P4K stands out as a Full NDI camera, offering a variable bit rate, I-Frame codec that reaches around 140Mbits at 1080p60, providing a visually lossless experience.

More than just a production PTZ, the P4K is designed to support the most demanding live production shoots. It offers traditional frame rates, including 29.97, and even allows for shooting in 24p for a cinematic look.

The camera's advanced color controls, user-selectable gamma settings, and black gamma adjustment offer unprecedented flexibility in fine-tuning your shots. The P4K's superfine robotics provide precise control, allowing for professional, dramatic shots or high-action sports coverage.

The P4K camera also features 360-degree Tally lights, ensuring everyone on the production set knows which camera is live. With Full NDI, two independent 6G SDI outputs, and one HDMI 2.0 output, this camera facilitates amazingly flexible workflows.

The P4K's Genlock feature allows for synchronizing multiple cameras, eliminating the need for additional frame buffers. Its adaptive bit rate feature lets you select the bit rate to suit your bandwidth and requirements.

When paired with the BirdDog PTZ Keyboard, the P4K offers total remote control of all functions. The camera also supports RESTful API for DIY automation, and comes with free software tools for enhanced functionality.

In conclusion, the P4K 4K UltraHD Full NDI 12x PTZ Camera with 1" Sony Sensor is a sophisticated, high-tech solution for those seeking superior image quality and advanced features in a camera.

BirdDog P4K Features

  • Sony 1" Sensor
  • Full NDI
  • More than just a production PTZ. Shoot true cinematic styles
  • Advanced Color Controls
  • Superfine Robotics
  • 360 degree Tally lights
  • Genlock. Let that sync in
  • Adaptive bit rate. Slide your way to glory
  • RESTful API. DIY automation
  • Free Software Tools - Central Lite, Cam Control, Comms Lite

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture stunning 4K UltraHD video with the BirdDog P4K PTZ camera's exceptional clarity.
  • Experience smooth, precise control with 12x optical zoom, perfect for live events and broadcasts.
  • Enjoy seamless integration with NDI workflows for efficient video production and streaming setups.
  • Utilize the 1" Sony sensor for superior low-light performance in any indoor or studio environment.
  • Easily manage camera settings via IP, offering remote control for efficient operation and flexibility.
  • Benefit from versatile connectivity with HDMI, SDI, and NDI outputs for diverse video workflows.

What's in the box:

  • P4K 14.2MP 4K Full NDI PTZ Camera with 1 " Sony Sensor (White)
  • BirdDog 1 Year Limited Warranty (Additional 2 Year on Registration)
