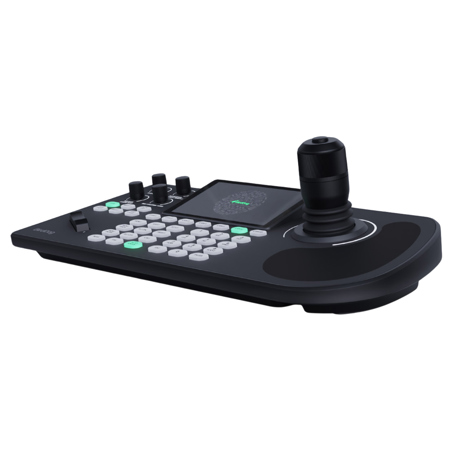

BirdDog KBD PTZ Camera Controller with Integrated Screen

SKU: BDKBD MFR: BDKBD
Earn VIP Reward Points

Key Features

  • Effortlessly manage PTZ cameras with the BirdDog KBD's intuitive joystick control.
  • Enjoy precise camera adjustments using dedicated dials for focus, zoom, and exposure.
  • Streamline your workflow with quick access to 6 direct camera keys and 10 preset keys.
  • Control up to 255 PTZ cameras via versatile IP protocols like VISCA-IP and NDI.
  • Monitor feeds on the integrated screen, supporting NDI HX & RTSP for multiviewing.
  • Rely on the durable aluminum build and 5-year warranty for long-lasting performance.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BirdDog KBD PTZ Controller Specifications

Camera Control

Camera Control

Jump to...
  • PTZ Control

    VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D

  • Fine PTZ Control

    VISCA-IP, NDI

  • Focus Control

    Auto Focus, Manual Focus buttons

  • Auto Exposure

    Direct button

  • Manual Exposure

    Toggle Dial Adjust. Brightness/Shutter/Gain/Iris

  • Auto White Balance

    Direct button

  • Manual White Balance

    Toggle Dial Adjust. R-Gain, B-Gain, Color Temp

  • Auto Focus

    Direct button

  • Manual Focus

    Direct button (Near/Far)

  • BLC (Backlight Compensation)

    Direct button
    Yes (Enable/Disable)

  • Zoom ring on Joystick

    Adjustable

  • Programmable Trigger on Joystick

    One-Push Focus, Al Tracking, One-Push AWB

  • Al Camera mode control

    Camera Dependent, supported

  • Copy/Paste Camera settings

    Supported on selected BirdDog Cameras (VISCA-IP, NDI)

Camera Access

Jump to...
  • Max. Cameras support

    255

  • Direct Camera access keys

    6

  • Direct Preset access keys

    10

  • Max Preset support

    255 per camera

  • OSD Camera Menu

    Menu button/interaction with Joystick

Display

Jump to...
  • Display Resolution

    1280x720

  • Multiview IP Video

    Supported, NDI HX (Proxy), RTSP (max. 30 fps)

  • Full Screen IP Video

    Supported, NDI HX (Proxy), RTSP (max. 30 fps)

  • IP Video CODEC support

    h.264, h.265

  • Tally Borders

    Selectable, Multiview and Full Screen mode

  • On Screen Menu

    Fully configurable

  • Light/Dark Mode

    Yes

NDI Support

Jump to...
  • NDI Control

    NDI HX2, NDI HX3, High Bandwidth NDI

  • NDI Multiviewer

    NDI HX3, NDI HX3

  • NDI Router

    Yes, follows current active camera

  • NDI Discovery

    Supported

  • NDI Access Manager

    Supported

  • NDI PTZ Sensitivity

    Standard (NDI); Superfine (BirdDog Specific)

Setup/Configuration

Jump to...
  • WebUl

    BirdUI for setup and firmware updates

  • Light/Dark Mode

    Yes

  • API-based Camera Selection

    Yes

Serial Connections

Jump to...
  • RS-232

    D-Sub connector (9-pin)

  • RS-422

    Phoenix connector

Physical

Jump to...
  • Joystick type

    4D (Integrated Trigger button)

  • Keys

    37 Keys; Backlit, Individual Contact, Silicon Pad

  • Toggle Dials

    4 knobs; Press Button, Graduated, 360 Degree adjust.

  • Zoom Rocker

    Spring loaded, adjustable

  • Construction Material

    Aluminum; OBP Ocean-Bound Plastic

  • Integrated Carry Handle

    Yes

  • Operating Temperature

    14 Degree F - 130 Degree F (-10 Degree C - +55 Degree C)

  • Storage Temperature

    14 Degree F - 130 Degree F (-10 Degree C - +55 Degree C)

  • Operating Humidity

    20%-80% (Non-condensing)

  • Storage Humidity

    0%-90% (Non-condensing)

  • Power Supply

    PoE (802.3af), DC12V

  • Power Consumption

    <5W

  • Dimensions (L x W x H)

    14.84 x 6.96 x 4.64" (377 x 177 x 118mm) (Including Joystick)

  • UPC Code

    9354873001055

About BirdDog KBD PTZ Controller

Just imagine the ultimate tool for PTZ camera operators: the BirdDog KBD PTZ Camera Controller with Integrated Screen. Designed with precision and comfort in mind, this controller is crafted from user feedback to deliver unparalleled performance. Its rugged, ergonomic design features a hand-rest area and tactile controls, ensuring all-day comfort for seamless, extended use.

The BirdDog KBD boasts an expansive screen that allows you to monitor up to four camera feeds simultaneously or focus on a single full-screen view. This feature provides complete control at a glance, enabling you to pair and switch cameras effortlessly with just a single press. An industry-first innovation, the KBD allows you to copy settings from one X Series camera to another in seconds, streamlining your workflow.

Engineered for modern production environments, the BirdDog KBD integrates seamlessly with popular platforms like TriCaster and vMix. It supports a wide range of connectivity options, including NDI, VISCA, ONVIF, RS-232, and RS-422, ensuring versatility across various workflows. The controller also features a super-fine control mode, which enhances joystick sensitivity by 10 times, allowing for precise, on-air reframing with ease.

The integrated tally borders provide tactile feedback and display live feeds directly on the keyboard, making camera switching intuitive and efficient. With streamlined access to essential functions such as camera pairing, switching, and configuration, the BirdDog KBD eliminates unnecessary distractions, enabling you to work smarter and faster without diving into complex menus.

Reflecting a commitment to sustainability, the BirdDog KBD is crafted with ocean-bound plastics and recyclable aircraft-grade aluminum. This eco-conscious design does not compromise on professional-grade performance, offering a perfect balance of power, comfort, and innovation. Refined through user insights, the BirdDog KBD PTZ Camera Controller is the epitome of affordable innovation, delivering unmatched precision and eco-friendly design for discerning camera operators.

BirdDog KBD PTZ Controller Features

  • Crafted from feedback, built for brilliance
  • All-Day Comfort
  • Expanded Screen Control
  • Effortless Camera Settings Sync
  • Ultimate Connectivity
  • Super-Fine Control Mode
  • Integrated Tally Borders
  • Streamlined Access
  • Affordable Innovation
  • Plastic with a Porpoise

Warranty Information

This product has a limited warranty of 60 months.

Product Documents

User Manual

Key Features

  • Effortlessly manage PTZ cameras with the BirdDog KBD's intuitive joystick control.
  • Enjoy precise camera adjustments using dedicated dials for focus, zoom, and exposure.
  • Streamline your workflow with quick access to 6 direct camera keys and 10 preset keys.
  • Control up to 255 PTZ cameras via versatile IP protocols like VISCA-IP and NDI.
  • Monitor feeds on the integrated screen, supporting NDI HX & RTSP for multiviewing.
  • Rely on the durable aluminum build and 5-year warranty for long-lasting performance.

What's in the box:

  • BirdDog KBD PTZ Camera Controller with Integrated Screen
  • BirdDog 5 Year Limited Warranty
