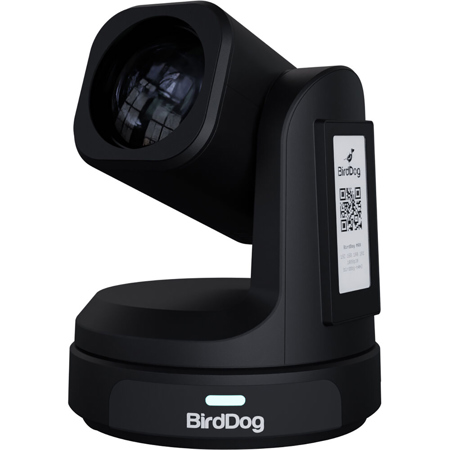

BirdDog MAX 8.29MP 4K Ultra HD NDI|HX3 HDMI/IP 12x PTZ Camera Black

SKU: BDMAXB MFR: BDMAX-B
Earn VIP Reward Points

Key Features

  • 8.29MP 4K Ultra HD resolution for crystal-clear video quality
  • NDI|HX3 and HDMI outputs for seamless integration into any video workflow
  • Advanced AI tracking and smart automatic video framing for professional results
  • Eco-friendly design using ocean-bound plastics and low power consumption
  • Smooth PTZ motion with precision motors and control algorithms for fluid movement
  • Compatible with BirdDog apps and a wide range of control devices for enhanced versatility
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

BirdDog MAX Specifications

Imaging

Imaging

Jump to...
  • Image Sensor

    Sony 1/2.8" CMOS, ULTRA HD

  • Lens

    f=3.42mm - 40.02mm

  • Optical Zoom

    12x

  • Video Format

    HDMI : 2160p30, 1080p60/59.94/50/30/29.97/25, 720p60/50/59.94/30
    NDI: 2160p30/29.97/25, 1080p30/29.97/25/23.98

  • Horizontal angle of view

    80.56 Degree (W) - 7.89 Degree (T)

  • Vertical angle of view

    49.61 Degree (W) - 4.46 Degree (T)

  • Diagonal angle of view

    89.51 Degree (W) - 9.04 Degree (T)

  • Aperture

    F1.88 - 3.77

  • Focus

    Auto, Manual

  • Exposure

    Auto, Shutter Priority, Iris Priority, Manual

  • Backlight Compensation

    Yes

  • Digital Noise Reduction

    2D and 3D Noise Reduction

  • SNR

    >50dB

  • Effective Pixels

    8.29 MP

Mechanical

Jump to...
  • Pan/Tilt Rotation

    +/-175 Degree , -90 Degree -+90 Degree

  • Pan Control Speed

    0.1 -80 Degree /sec

  • Tilt Control Speed

    0.1 -60 Degree /sec

  • Preset Number

    255 presets

I/O Interface

Jump to...
  • Video Output Interfaces

    HDMI, USB-C UVC 1.1, Network

  • Video Compression Format

    H.264, H.265

  • Network Interfaces

    100M adaptive Ethernet port; POE IEEE802.3af

  • Encoder Network Protocols

    NDI|HX2, NDI|HX3, RTSP, RTMP, SRT

  • Control Interfaces

    10M/100M Ethernet, RS232 (input & output), RS485, TYPE-C(UVC1.1)

  • Control Protocols

    VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI

General Parameter

Jump to...
  • Availale Colors

    Black/White

  • Input Voltage

    DC 12V, POE IEEE802.3af

  • Input Current

    2.0A (Max.)

  • Power Consumption

    13W (Max.)

  • Working Temperature

    32 Degree F to 104 Degree F (0 Degree C - +40 Degree C)

  • Working Humidity

    20% - 80%

  • Dimension (W x H x D)

    6.75 x 7.58 x 6.75" (171.6 x 192.6 x 171.6mm)

  • Weight

    3.15 lbs (1.43kg)

  • UPC Code

    9354873001062

Related Articles & Videos

The Best Action Cameras for Every Adventure

The Best Action Cameras for Every Adventure

Not all action cameras are made equal, which is why choosing the best one for your needs can be tough. To help you out, we’ve compiled a list of the best action cameras in different price ranges.
Read more
Best Rugged Cameras for Your Next Adventure

Best Rugged Cameras for Your Next Adventure

Looking for rugged cameras that can swim to the deeps, climb to the clouds, and handle a little roughing around? We have the best 10 for you.
Read more
Best Disposable Camera in 2023

Best Disposable Camera in 2023

For many snapshooters, single-use cameras are indisposable. Whatever you do, don’t call those immensely popular, non-reloadable cameras sold everywhere from tourist sites to the local Seven-Eleven “diaposables.” That term is strictly verboten, taboo, and politically incorrect.

Read more
GoPro Introduces 2 New Cameras: The Versatile, Unshakable Hero8 Black & Max for 360-Degree, Stabilized Capture

GoPro Introduces 2 New Cameras: The Versatile, Unshakable Hero8 Black & Max for 360-Degree, Stabilized Capture

Ever since the first GoPro action camera launched in 2004, content creators and filmmakers have gravitated towards using these small action cameras because they allowed for an immersive, POV experience, difficult to capture before. While GoPro cameras have evolved ove...
Read more

About BirdDog MAX

From boardrooms to broadcast studios, the BirdDog MAX 8.29MP 4K Ultra HD NDI|HX3 HDMI/IP 12x PTZ Camera redefines video communication and production. This versatile PTZ camera bridges the gap between everyday webcams and high-end production cameras, offering stunning 4K Ultra HD performance and a sleek, modern design that fits seamlessly into any environment.

BirdDog MAX Features

  • Premium PTZ Camera & Webcam
  • Sony 1/2.8" CMOS Sensor, 8.29MP
  • 12x Optical Zoom
  • Supports Resolutions up to UHD 4K30
  • HDMI & NDI Output Options
  • Effortless POD Integration
  • Scalable via API
  • Supports NDI|HX & SRT/RTMP Protocols

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • 8.29MP 4K Ultra HD resolution for crystal-clear video quality
  • NDI|HX3 and HDMI outputs for seamless integration into any video workflow
  • Advanced AI tracking and smart automatic video framing for professional results
  • Eco-friendly design using ocean-bound plastics and low power consumption
  • Smooth PTZ motion with precision motors and control algorithms for fluid movement
  • Compatible with BirdDog apps and a wide range of control devices for enhanced versatility

What's in the box:

  • BirdDog MAX 8.29MP 4K Ultra HD NDI|HX3 HDMI/IP 12x PTZ Camera
  • BirdDog 5 Year limited Warranty
