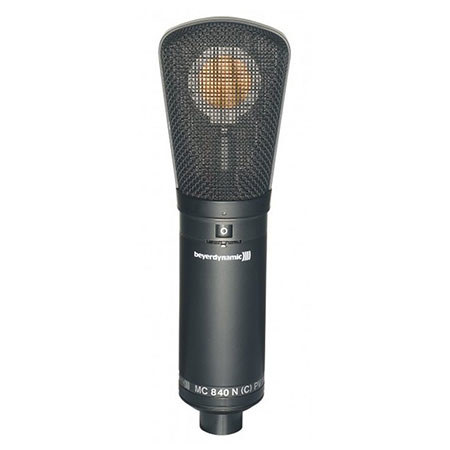

Beyerdynamic MC 840 Multi-Pattern Large-Diaphragm Studio Condenser Microphone
See all Beyerdynamic items

Beyerdynamic MC 840 Multi-Pattern Large-Diaphragm Studio Condenser Microphone, 30-20,000Hz Response, 180Ohms Nominal Impedance, 3-Pin XLR Male Connector

SKU: BDMC840
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Beyerdynamic MC 840 Specifications

  • Transducer type

    Condenser

  • Operating principle

    Pressure gradient

  • Frequency response

    30 - 20,000 Hz

  • Polar pattern

    switchable: omnidirectional, wide cardioid, cardioid, hypercardioid, figure eight

  • Open circuit voltage at 1 kHz

    18 mV/Pa (0 dB = 1 V/Pa)

  • Nominal impedance

    180Ohms

  • Load impedance

    1000Ohms

  • Max. SPL at 1 kHz

    127 dB (without pre-attenuation)
    137 dB with -10 dB pre-attenuation
    147 dB with -20 dB pre-attenuation

  • Signal-to-noise ratio rel. to 1 Pa

    Approx. 70 dB

  • A-weighted equivalent SPL

    Approx. 17 dB

  • Power supply

    11 - 52 V phantom power

  • Current consumption

    4.6 mA

  • Low frequency roll-off

    switchable, 6 dB/octave at 80 Hz and 160 Hz

  • Connector

    3-pin XLR male
    Pin 1 = ground
    Pin 2 = +
    Pin 3 = -

  • Shaft Diameter

    1.45" / 37mm

  • Dimensions

    Head (L x W x H): 2.76 x 2.05 x 1.3" / 70 x 52 x 33mm
    Total Length: 6.5" / 165mm

  • Weight

    10.09oz / 286g

3 Accessories for Beyerdynamic MC 840 Multi-Pattern Large-Diaphragm Studio Condenser Microphone, 30-20,000Hz Response, 180Ohms Nominal Impedance, 3-Pin XLR Male Connector

  • All Accessories (3)
  • Studio Isolation Filters (3)
H&A Studio Isolation Filter (Red Composite, Metal Back)
H&A Studio Isolation Filter (Red Composite, Metal Back)
$69.95
Recommended
H&A Reflection Filter (Silver)
H&A Reflection Filter (Silver)
$39.95
Recommended
Professional Desktop Isolation Filter (Gray)
Professional Desktop Isolation Filter (Gray)
$39.95
Recommended

About Beyerdynamic MC 840

The Beyerdynamic MC 840 microphone provides 5 switchable polar patterns for universal studio applications. It has been designed without compromise to capture every sound detail with absolute clarity and purity. Applications for the MC 840 include recording orchestras resulting in a superb transparent sound. Due to a switchable 2 position roll-off filter and a switchable pre-attenuation the MC 840 is also suitable for close miking of instruments.

Beyerdynamic MC 840 Features

  • Large diaphragm capsule with gold vaporized double diaphragms
  • Elastic capsule mounting
  • Five selectable polar patterns
  • Switchable pre-attenuation for high sound pressure levels
  • Switchable two-stage roll-off filter

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Elastic capsule mounting
  • Five selectable polar patterns
  • Switchable two-stage roll-off filter

What's in the box:

  • Beyerdynamic MC 840 Multi-Pattern Large-Diaphragm Studio Condenser Microphone
  • EA 37 Elastic suspension
  • MKV 11 Microphone Clamp with 3/8 " Internal Thread for Shaft Diameters of 32 to 42mm
  • ZKK 740-833 Case
  • Beyerdynamic 2 Year Limited Warranty
