Beyerdynamic MCE 72 PV CAM Stereo Electret-Condenser Microphone for XY Recording, 60-20,000Hz Response, 180Ohms Nominal Impedance, 5-Pin XLR Male Connector

SKU: BDMCE72PVCAM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Beyerdynamic MCE 72 PV CAM Specifications

  • Transducer type

    Condenser (back electret)

  • Operating principle

    Pressure gradient

  • Frequency response

    60 - 20,000 Hz

  • Recording

    XY stereophony

  • Polar pattern

    2x cardioid, principal

  • axis angle

    120deg.

  • Open circuit voltage at 1 kHz

    26 mV/Pa

  • Nominal impedance

    180Ohms

  • Load impedance

    > 1kOhms

  • Max. SPL at 1 kHz

    120 dB

  • Signal-to-noise ratio rel. to 1 Pa

    Approx. 60 dB

  • A-weighted equivalent SPL

    Approx. 26 dB

  • Power supply

    Phantom power 11 - 52 V

  • Current consumption

    3.7 mA per channel

  • Output

    balanced

  • Connection

    5-pin XLR male
    Pin 1 = Shield
    Pin 2 = AF + left
    Pin 3 = AF - left
    Pin 4 = AF + right
    Pin 5 = AF - right

  • Connecting cable input

    5-pin XLR female

  • Connecting cable output

    2x 3-pin XLR male

  • Connecting cable length

    1.64 '/ 0.5m

  • Dimensions (L x Dia.)

    5.35 x 0.98" / 136 x 25mm

  • Weight

    4.76oz / 135g

About Beyerdynamic MCE 72 PV CAM

The Beyerdynamic MCE 72 PV CAM is a compact stereo microphone for XY recording with a wide and linear frequency response producing uncolored, high-quality recordings. It is suitable for stereo recording in home studio applications, concert recordings with DAT or MD, film, video and interviewing. For musicians this is an excellent microphone for assessing performance in rehearsals, production and concerts. For stereo ambient sound recording, the microphone is suitable for direct connection to most camcorders, DAT and MD recorders.

It has two microphone capsules that are mounted in an angle of +/-60deg. to the microphone axis to achieve a wide recording range and an accurate reproduction of the sound source. The optional EA 19/25 elastic suspension suppresses footfall sound effectively. Using the optional special EA 86 elastic suspension with a flash holder, this can be mounted onto the "hot shoe" of a camcorder directly but remains isolated from noise caused by the video head and the drive. It is phantom powered between 11 and 52 V.

Beyerdynamic MCE 72 PV CAM Features

  • XY stereophony
  • Two cardioid condenser capsules
  • Angular width 120deg. (+/- 60deg. off the microphone axis)
  • Rugged metal housing
  • Plug-in connecting cable (5-pin XLR)
  • Phantom powered 11 - 52 V

Key Features

  • XY stereophony
  • Two cardioid condenser capsules
  • Rugged metal housing
  • Plug-in connecting cable (5-pin XLR)
  • Phantom powered 11 - 52 V

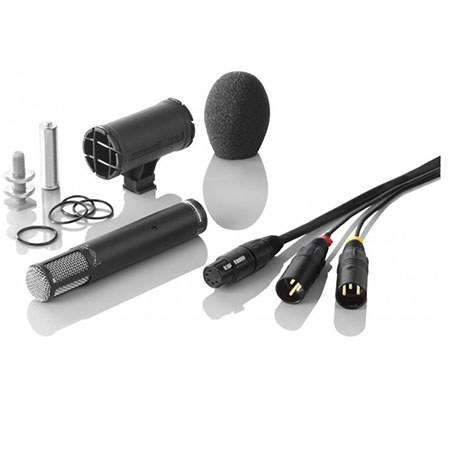

What's in the box:

  • Beyerdynamic MCE 72 PV CAM Stereo Electret-Condenser Microphone for XY Recording
  • EA 86 Elastic Suspension
  • WS 72 Wind Shield
  • MVK 82-N(CM) 1.64' Cable
  • Beyerdynamic 2 Year Limited Warranty
