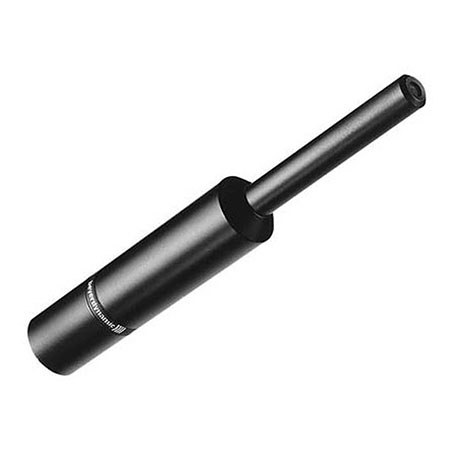

Beyerdynamic MM-1 Omnidirectional Condenser Measurement Microphone

Beyerdynamic MM-1 Omnidirectional Condenser Measurement Microphone for Acoustical Measurements, Phantom Powered, 20-20000Hz = 2.2kOhms Load Impedance

SKU: BDMM1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Beyerdynamic MM-1 Specifications

  • Transducer type

    Condenser (back electret)

  • Operating principle

    Pressure

  • Polar pattern

    Omnidirectional, diffuse field calibrated

  • Frequency response

    20 - 20000Hz (50 - 16,000 Hz +/- 1.5 dB)

  • Open circuit voltage at 1 kHz

    15 mV/Pa (= -36.5 dBV) +/- 1 dB

  • Nominal impedance

    330 Ohms

  • Nominal Load impedance

    = 2.2 kOhms

  • Max. SPL at f=1 kHz, k=1%, R L=2.2 kOhms

    128 dB SPL

  • S/N ratio rel. to 1 Pa

    > 57 dB

  • A-weighted equivalent SPL

    28 dB(A) approx.

  • Power supply

    12 - 48 V phantom supply

  • Current consumption

    3.4 mA approx.

  • Output

    Transformer balanced

  • Connection

    3-pin XLR male

  • Diameter

    Shaft: 19/9mm (0.74/0.35")
    Head: 9mm / 0.35"

  • Length

    133mm / 5.23"

  • Weight

    88g / 3.1oz (without cable)

About Beyerdynamic MM-1

The Beyerdynamic MM-1 is a measurement microphone which has been designed specifically for measuring sound reinforcement and PA-systems. It is designed to work with spectrum analyzers for measuring frequency response and sound pressure levels of loud speaker systems. The MM-1 is the ideal microphone for the measurement of audio signals in the research, development, for reverberation testing's and other applications. The narrow tubular construction ensures that the microphone has negligible influence on the sound field so that an increase in sound pressure is avoided with high frequencies. A natural reproduction is achieved due to the linear frequency response.

Beyerdynamic MM-1 Features

  • Linear frequency response in the diffuse field / under 90deg.
  • Calibrated open circuit voltage
  • Narrow tubular construction
