About Blackmagic Design OG3-FR-CN

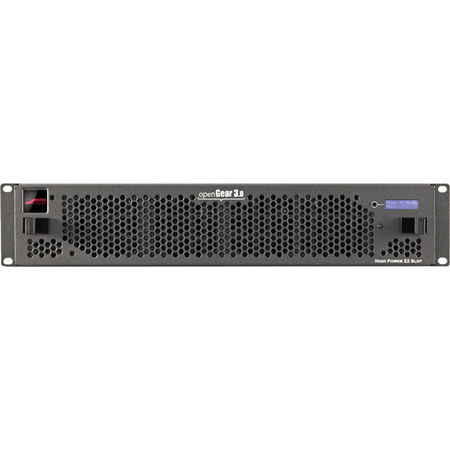

The Blackmagic Design openGear 21-Slot Frame combines various features to deliver optimum speed, power and flexibility. Along with 20 openGear card slots, this unit also features a dedicated 21st card slot, which is suitable for internal reference distribution and network control. Every card slot in this unit is provided with Gigabit Ethernet access. The presence of a LCD display helps in the identification of faults and IP addresses. A redundant power supply of 450W is also featured in this unit.
This frame unit incorporates a well-designed cooling architecture that provides increased ventilation and cooling to all cards. A built-in intelligent fan controller automatically adjusts the fan's speed based on changes in the temperature and power supply. The frame also features a GFC-8322 card that distributes reference signals to openGear cards installed in the frame.
Additionally, Ethernet connectivity comes standard with this unit for monitoring all the openGear cards via the DashBoard control system. A single dedicated slot is provided in this unit for connecting with a full network controller card.
Blackmagic Design OG3-FR-CN Features
- High Power, High Speed & Flexibility: This openGear frame combines function, flexibility and power with advanced features like high-power 450W redundant power supplies, Gigabit Ethernet access to every card slot, 20 openGear card slots, a dedicated 21st card slot

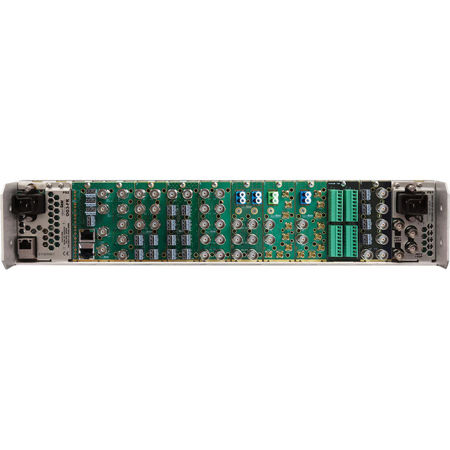

- Modular Frame Architecture: This frame unit offers the flexibility of independent rear modules for connectivity to a wide array of interfaces such as BNC, twisted-pair audio and fiber
- Robust Power Supplies: This frame can accommodate 2 front-loaded PS-OG3 power supplies. The split outside location of the power supplies allows for easy installation when utilizing an alternate phase power source
- Cooling: This frame is designed with an advanced cooling architecture that provides increased ventilation. Front door mounted cooling fans provide forced air cooling to all cards with front to back cooling
- Control: This unit comes standard with Ethernet connectivity for basic configuration and monitoring of openGear cards through the DashBoard control system. An advanced networking card, the MFC-8322-N adds an on-board Gigabit Ethernet switch, with GigE access to each of the 20 processing card slots
