What type of sensor does the P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera have?

The P240 PTZ Camera features an upgraded Sony Exmor R broadcast sensor for superior image quality and enhanced light sensitivity.

What are the output options of the P240 PTZ Camera?

The P240 PTZ Camera offers three output options - NDI, SDI, and HDMI, providing ultimate video flexibility.

Does the P240 PTZ Camera support NDI 5.5?

Yes, the P240 PTZ Camera supports Full NDI 5.5 natively, ensuring maximum compatibility across all NDI ecosystems.

What additional features does the P240 PTZ Camera offer?

The P240 PTZ Camera comes with free Auto-Tracking and FreeD output for AR/VR workflows, an OLED display, a 360-degree mohawk tally, filter thread, safety anchor point, and a carry handle.

Can I access the P240 PTZ Camera remotely?

Yes, with a BirdDog Cloud subscription, you can access the PTZ cameras and all features from anywhere in the world.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BirdDog P240 Specifications

Camera
  • Image Sensor

    1/2.5" CMOS 8.5MP

  • Lens

    4.4-88.4mm

  • Optical Zoom

    Up to 40x

  • SRZ (Super Resolution Zoom)

    40x in Full HD

  • Horizontal Angle of View

    70.2 Degree (W) - 4.1 Degree (T)

  • Aperture

    F2.0 (W) - F3.8 (T)

  • Min. Illumination

    Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

  • Shutter Speed

    1/1 - 1/10000s

  • Features

    Visibility enhancer, Black & White, E-Flip, Mirror, Color enhancement, Black level, gamma, Color/Hue Adjust, HLC, Color Bar

  • ND Filter

    YES

  • Image Stabilizer

    YES

  • Color Gain

    Yes (15 steps)

  • Color Hue

    Yes (15 steps)

  • Gamma

    Standard, Straight, 512 pattern

  • Gamma Level

    Yes (15 steps)

  • Black Level

    Yes (97 step) - Flicker Cancel: Yes

  • Noise Reduction

    On/Off (level 5 to 1/Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

  • Focus

    Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)

  • Exposure

    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

  • Backlight Compensation

    Yes

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-175 Degree (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /s)

  • Tilt Movement

    Vertical: +90 Degree to -30 Degree (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /s)

  • Preset Positions

    128 (Speed adjustable: Up to 150 Degree /s)

  • Environmental

    Indoor

  • Operating Temperature

    14 - 104 Degree F (-10 - +40 Degree C)

  • Operating Humidity

    <=80%

  • Tally Display

    Bi Color Full overhead and rear (w/included 0-9 number silicon plugs)

  • Onboard OLED Display

    5-line, RGB Color, Graphical

Video Interface

Jump to...
  • Video Output

    NDI/HDMI/3G-SDI

  • HD Video Formats

    1080p 60, 59.94, 50, 29.97, 25, 23.97 1080i 59.94, 50 - 720p 59.94, 50

  • Analogue Audio I/O

    IN: balanced XLR (via breakout cable) with 48V Phantom power, unbalanced 3.5mm TRS (stereo)
    OUT: balanced XLR (via breakout cable), unbalanced 3.5mm TRS (stereo)

  • Audio Output

    Embedded with main HDMI, 24bit
    Embedded with SDI, 24bit
    Embedded with NDI

Control Interface

Jump to...
  • IP PTZ Control

    NDI Control (auto configuring), VISCA IP

  • Serial PTZ Control

    2x RJ45: RS232 / RS422 Connectors

  • Serial Control Protocol

    VISCA / PELCO D

  • Power Input

    12v DC, PoE+ (IEEE 802.3at)

  • Power Consumption

    22.5W (PTZ move simultaneously)

Network

Jump to...
  • Video Compression

    Full NDI - i-frame high quality low latency NDI for production
    h.264 long-GOP (Limited resolution support)

  • Web Control Interface

    Full control via Web/Mobile UI including Scene presets

  • Optional Mounts

    Ceiling mount, Wall mount

Physical

Jump to...
  • Color

    Black

  • Dimensions

    6.41 x 7.83 x 9" (163 x 199 x 231mm)

  • Weight

    5.26 lbs (2.39kg)

  • UPC Code

    9354873000669

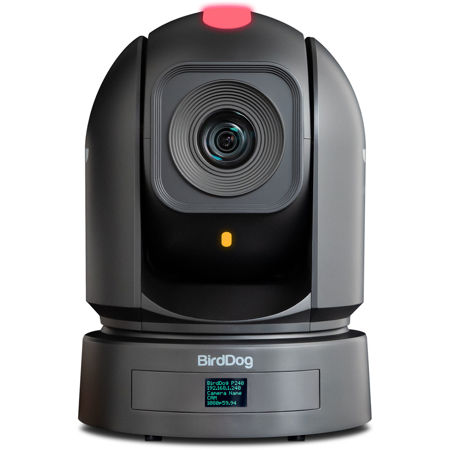

About BirdDog P240

How does the P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera, Black, redefine the standards of video surveillance and monitoring This advanced and high-tech camera builds upon the legacy of the NDI PTZ P200, introducing an upgraded Sony Exmor R broadcast sensor for enhanced light sensitivity and superior image quality.

The P240 offers three output options - NDI, SDI, and HDMI, providing ultimate video flexibility. It also features Balanced XLR audio for professional audio connections. The camera's IP output options are diverse, including multiple versions of NDI, SRT, and h.264, and it integrates seamlessly with BirdDog Cloud 3.0 for globally connected remote productions.

This innovative camera comes with free Auto-Tracking and FreeD output for AR/VR workflows, making it an excellent choice for live productions. The OLED display shows the IP address, and additional features like a 360-degree mohawk tally, filter thread, safety anchor point, and carry handle enhance its usability.

The P240 camera's Sony Exmor R Sensor ensures excellent performance even in challenging lighting conditions, making it perfect for concerts or other events with changing light. The camera also supports Full NDI 5.5 natively for maximum compatibility across all NDI ecosystems.

The P240 camera's interface is user-friendly and comprehensive, providing system statistics like active connections, current bandwidth usage, and network traffic intuitively. It uses Reliable User Datagram Protocol (RUDP) for error correction and smoothness, ensuring maximum reliability.

With NDI Genlock, you can select an NDI source to be the timing master for more predictable timing in multi-camera environments. The camera also supports FreeD, a protocol for sending PTZ positioning data to AR/VR systems.

The P240 camera can generate scopes in-camera to send out as NDI, NDI Proxy, or both, allowing for monitoring scopes on the NDI Proxy while sending a clean main NDI feed simultaneously. The 360-degree mohawk tally provides a full view, ensuring you always know which camera to use.

The P240 camera features a unique numbering system with removable silicon numbers at the back for easy identification. The OLED display shows useful information like IP Address, Device Name, Stream Name, Resolution, and Frame Rate.

With a BirdDog Cloud subscription, you can access the PTZ cameras and all features from anywhere in the world. The P240 camera supports a wide range of formats, including NDI|HX2, NDI|HX3, SRT, h.264 for low bandwidth requirements.

The P240 camera comes with free software tools like Central Lite, Cam Control, and Comms Lite, enhancing its functionality and ease of use. This state-of-the-art camera is designed to provide clear, detailed images for video surveillance and monitoring, making it a sophisticated choice for security and surveillance applications.

BirdDog P240 Features

  • Updated Sony Exmor R broadcast sensor to deliver increased light sensitivity, and best in class image quality and performance
  • Three output options including NDI, SDI, and HDMI for ultimate video flexibility
  • Balanced XLR audio adds professional audio connections
  • Free Auto-Tracking, FreeD output for AR/VR workflows
  • OLED display to show the IP address, 360 Degree mohawk tally, filter thread, safety anchor point, and carry handle
  • Cameras support NDI 5.5 natively

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Advanced PTZ camera with upgraded Sony Exmor R broadcast sensor for superior image quality
  • Offers three output options - NDI, SDI, HDMI for ultimate video flexibility
  • Features Balanced XLR audio for professional audio connections
  • Integrates seamlessly with BirdDog Cloud 3.0 for globally connected remote productions
  • Supports Full NDI 5.5 natively for maximum compatibility across all NDI ecosystems

What's in the box:

  • BirdDog P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera (Black)
  • Power Adapter
  • BirdDog 2 Year Limited Warranty
