BirdDog P240 Specifications

Camera
  • Image Sensor

    1/2.5" CMOS 8.5MP

  • Lens

    4.4-88.4mm

  • Optical Zoom

    Up to 40x

  • SRZ (Super Resolution Zoom)

    40x in Full HD

  • Horizontal Angle of View

    70.2 Degree (W) - 4.1 Degree (T)

  • Aperture

    F2.0 (W) - F3.8 (T)

  • Min. Illumination

    Color: 0.4lux (1/30s, 50%, High Sensitivity mode On), 1.6lux (1/30s, 50%, High Sensitivity mode Off), 0.06lux(1/4s(1/3s),50%, High Sensitivity mode On)

  • Shutter Speed

    1/1 - 1/10000s

  • Features

    Visibility enhancer, Black & White, E-Flip, Mirror, Color enhancement, Black level, gamma, Color/Hue Adjust, HLC, Color Bar

  • ND Filter

    YES

  • Image Stabilizer

    YES

  • Color Gain

    Yes (15 steps)

  • Color Hue

    Yes (15 steps)

  • Gamma

    Standard, Straight, 512 pattern

  • Gamma Level

    Yes (15 steps)

  • Black Level

    Yes (97 step) - Flicker Cancel: Yes

  • Noise Reduction

    On/Off (level 5 to 1/Off, 6 steps), 2D/3D

  • S/N Ratio

    >=50db

  • Focus

    Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit

  • White Balance

    AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)

  • Exposure

    Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow AE

  • Backlight Compensation

    YES

Mechanical

Jump to...
  • Pan Movement

    Horizontal: +/-175 Degree (Zoom Adaptive Speed Range: 0.05 Degree -100 Degree /s)

  • Tilt Movement

    Vertical: +90 Degree to -30 Degree (Zoom Adaptive Speed Range: 0.05 Degree -50 Degree /s)

  • Preset Positions

    128 (Speed adjustable: Up to 150 Degree /s)

  • Environmental

    Indoor

  • Operating Temperature

    14 - 104 Degree F (-10 - +40 Degree C)

  • Operating Humidity

    <=80%

  • Tally Display

    Bi Color Full overhead and rear (w/included 0-9 number silicon plugs)

  • Onboard OLED Display

    5-line, RGB Color, Graphical

Video Interface

Jump to...
  • Video Output

    NDI/HDMI/3G-SDI

  • HD Video Formats

    1080p 60, 59.94, 50, 29.97, 25, 23.97 1080i 59.94, 50 - 720p 59.94, 50

  • Analogue Audio I/O

    IN: balanced XLR (via breakout cable) with 48V Phantom power, unbalanced 3.5mm TRS (stereo)
    OUT: balanced XLR (via breakout cable), unbalanced 3.5mm TRS (stereo)

  • Audio Output

    Embedded with main HDMI, 24bit
    Embedded with SDI, 24bit
    Embedded with NDI

Control Interface

Jump to...
  • IP PTZ Control

    NDI Control (auto configuring), VISCA IP

  • Serial PTZ Control

    2x RJ45: RS232 / RS422 Connectors

  • Serial Control Protocol

    VISCA / PELCO D

  • Power Input

    12v DC, PoE+ (IEEE 802.3at)

  • Power Consumption

    22.5W (PTZ move simultaneously)

Network

Jump to...
  • Video Compression

    Full NDI - i-frame high quality low latency NDI for production
    h.264 long-GOP (Limited resolution support)

  • Web Control Interface

    Full control via Web/Mobile UI including Scene presets

  • Optional Mounts

    Ceiling mount, Wall mount

Physical

Jump to...
  • Color

    White

  • Dimensions

    6.41 x 7.83 x 9" (163 x 199 x 231mm)

  • Weight

    5.26 lbs (2.39kg)

  • UPC Code

    9354873000676

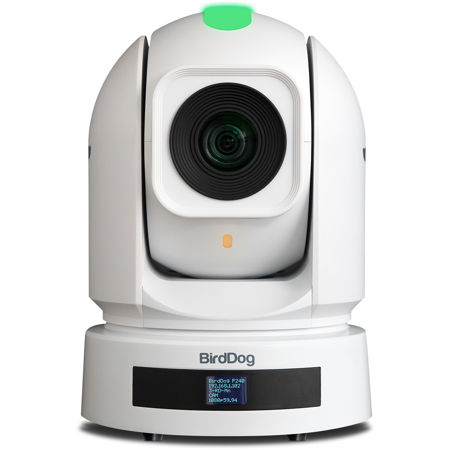

About BirdDog P240

When it comes to revolutionizing the world of live productions, the P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera in white is a game-changer. This advanced camera builds on the legacy of the NDI PTZ P200, introducing an upgraded Sony Exmor R broadcast sensor for enhanced light sensitivity and superior image quality.

The P240 camera offers three versatile output options - NDI, SDI, and HDMI, providing ultimate video flexibility. It also features Balanced XLR audio for professional audio connections. The camera's IP output options are diverse, including Full NDI, NDI|HX2, HX3, SRT, and h.264, and it's fully integrated with BirdDog Cloud 3.0 for globally connected remote productions.

This PTZ camera is equipped with an OLED display for easy viewing of the IP address, a 360-degree mohawk tally, a filter thread, a safety anchor point, and a carry handle. It supports NDI 5.5 natively, ensuring maximum compatibility across all NDI ecosystems.

The P240 camera's Sony Exmor R Sensor ensures exceptional lowlight performance, making it ideal for challenging lighting situations such as concerts. It also features Balanced XLR audio inputs and outputs via the included breakout cable with a locking connector, which can also supply Phantom Power.

The P240 camera's user interface, BirdUI, provides comprehensive system statistics, including active connections, current bandwidth usage, and network traffic. It also supports Reliable User Datagram Protocol (RUDP) for reduced network load and maximum reliability.

With NDI Genlock, you can select an NDI source as the timing master for more predictable timing in multi-camera environments. The P240 camera also supports FreeD for sending PTZ positioning data to AR/VR systems.

The camera's unique 360-degree mohawk tally and removable silicon numbers at the back provide additional tally vision and easy camera identification for switcher operators.

The P240 camera supports a wide range of formats, including NDI|HX2, NDI|HX3, SRT, h.264, and with a BirdDog Cloud subscription, you can access the PTZ cameras and all features from anywhere in the world.

The camera comes with free software tools, including Central Lite for driving your NDI streams to any BirdDog Studio NDI or Mini to decode NDI back to SDI or HDMI, Cam Control for easy access to all settings of all the BirdDog cameras on your network, and Comms Lite for your free Audio Intercom solution.

In summary, the P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera in white is a powerful tool for live productions, offering superior image quality, versatile output options, and a host of advanced features.

BirdDog P240 Features

  • Updated Sony Exmor R broadcast sensor to deliver increased light sensitivity, and best in class image quality and performance
  • Three output options including NDI, SDI, and HDMI for ultimate video flexibility
  • Balanced XLR audio adds professional audio connections
  • Free Auto-Tracking, FreeD output for AR/VR workflows
  • OLED display to show the IP address, 360 Degree mohawk tally, filter thread, safety anchor point, and carry handle
  • Cameras support NDI 5.5 natively

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Upgraded Sony Exmor R broadcast sensor for superior image quality and light sensitivity
  • Multiple output options including NDI, SDI, and HDMI for ultimate video flexibility
  • Integrated with BirdDog Cloud 3.0 for globally connected remote productions
  • Supports NDI 5.5 natively for maximum compatibility across all NDI ecosystems

What's in the box:

  • BirdDog P240 Full HD Full NDI/HDMI/3G-SDI 40x PTZ Camera (White)
  • Power Adapter
  • BirdDog 2 Year Limited Warranty
