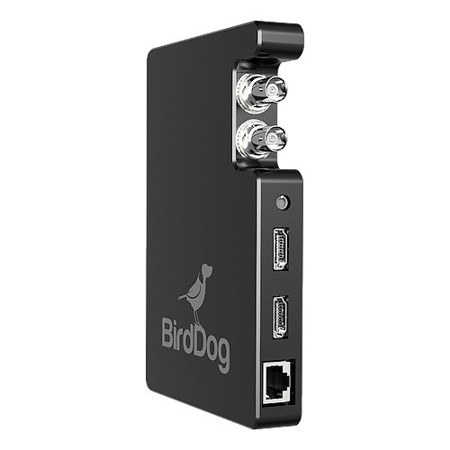

BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard)
See all BirdDog items

BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard)

SKU: BDSTUM01

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ARTEM N : Incredible NDI interface!

Reviews about this item

Review Summary

2020-06-23T08:15:48

Rated 5 out of 5

The Best.

This is the only way to go if you want NDI. Period.

AL R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

BirdDog Studio SDI/HDMI to NDI Specifications

  • Video Inputs

    HDMI
    HD-SDI

  • Video Outputs

    HDMI
    HD-SDI

  • Supported Resolutions

    1080p 29.97/25/59.94/50
    1080i 59.94/50
    720p 59.94/50
    SD PAL/NTSC

  • Video Protocol Support

    NDI Realtime Encoding

  • Audio

    Embedded via SDI/HDMI
    Headset connector

  • Network

    1000baseT

  • Power

    802.3 PoE Compliant
    2-pin 8-24v DC with D-Tap adapter

  • External Tally

    3.5mm GPIO 2 position (Program/Preview)

  • Display

    5x35 LED Display
    3 Selectable modes (Info, Tally, Multi-Tally)

  • Configuration

    Web Based
    (Mobile and Desktop compatible)

  • Dimensions (WxHxD)

    4.13 x 5.90 x 0.77" (105 x 150 x 19.5mm)

  • UPC Code

    9369999071578

About BirdDog Studio SDI/HDMI to NDI

FEATURED REVIEWS

The Best.

By AL R.

This is the only way to go if you want NDI. Period.

BirdDog Studio enables your existing cameras to be included into a new IP workflow for your live productions. Once you convert your HDMI or SDI signal to IP the possibilities of live productions are magnified. Any network connection becomes a live video input into your switcher.

• More flexible video inputs into your live production*
• Access video resources from anywhere in the facility
• Easily integrate Tally into productions, even outside the studio

NDI made simple
Convert your baseband SDI or HDMI to NDI and take full advantage of flexible IP networks. No need to run long SDI cables or purchase expensive video routers, simply access your live video in real time anywhere on your network.

Dual Color Tally
BirdDog does Tally the right way. BirdDog Studio can display Tally onboard and externally via Tally out. Due to their superior NDI integration, BirdDog can provide both Program and Preview tally indicators.

Simply set the display to be full screen Tally or split screen to show both program and preview.

Power from anywhere
BirdDog has your bases covered when it comes to power. BirdDog Studio can accept power input from the Ethernet cable via PoE technology. Don't have a PoE network infrastructure? No worries, simply power via DC or V/Gold-mount battery plate optional accessories with power pass-through (coming soon).

Central fleet control
Control and configure multiple BirdDog Studio devices through the admin panel which is accessible via a web browser on both mobile devices and desktop.

Monitor loop-out/format converter
SDI and HDMI outputs are always live, allowing you to convert from SDI to HDMI and vice versa. Connect a monitor to BirdDog Studio or simply use to loop out to other gear.

Software upgradeable
BirdDog's working all the time and as additional features are made available these will be released at no cost. To make updates easy a simple site deployment wizard will ensure all BirdDog Studios in your facility are updated, and all running the same software version.

* NDI compatible device is required.
