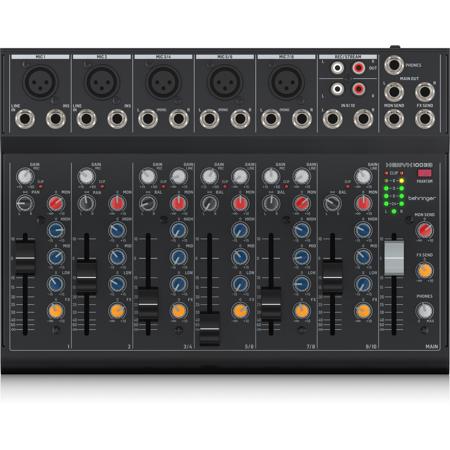

Behringer XENYX 1003B Premium Analog Mixer with 5 Mic Preamps

SKU: BE061AHR86S1 MFR: 0601-AHR86-US1
$159.00
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with this premium analog mixer, perfect for studio recording.
  • Five XENYX mic preamps deliver low noise and high headroom for crystal-clear sound.
  • Shape your sound with ease using the 3-band EQ control on each channel of this mixer.
  • Seamlessly connect to your computer via the USB interface for recording and playback.
  • Use this durable mixer for live sound, podcasts, or home studio setups with confidence.
  • Enjoy versatile input channels for mics, instruments, and line-level sources on stage.
See More Product Details
On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Jerry S : Are the two rightmost images from a different product? Those labels don't show up on the image of the 1003B, even in the zoomed form.
Shopper : Why Did You Choose This?Rolenshield L : I chose this item because it appears to be suitable to my needs: portable, wireless, battery powered!TYLER S : Battery power, good number of inputs, relatively small size

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer XENYX 1003B Specifications

Mono Inputs

Mono Inputs

Jump to...
  • Microphone Input

    Balanced XLR, Discrete Input Circuit

  • Mic EIN (22 Hz-22 kHz) 50 Ohm Source

    Typ. -128 dB A-Weighted

  • Frequency Response Gain +15 dB (-3 dB)

    10 Hz - 80 kHz

  • Frequency Response Gain +60 dB (-3 dB)

    20 Hz - 60 kHz

  • Gain Range

    +15 dB to +60 dB

  • Max Input Level

    +6 dBu @ +15 dB Gain

  • Input Impedance

    1.8 k Ohm Balanced

  • Distortion (THD+N) Gain 15 dB

    0.006 % @ 1 kHz -5 dBu

  • Mono Line Inputs

    1/4" TRS Connector Balanced

  • Impedance

    18 k Ohm Balanced

Stereo Inputs

Jump to...
  • Line Input

    1/4" TRS Connector Unbalanced

  • Gain Range

    -Infinite to +15 dB

  • Max Input Level

    +20 dBu @ Gain 12O'clock

Equalizer

Jump to...
  • Low

    80 Hz/ +/-15 dB

  • Mid

    2.5 kHz/ +/-15 dB

  • High

    12 kHz/ +/-15 dB

Outputs

Jump to...
  • Main Output

    1/4" TRS Connector Balanced

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Impedance

    470 Ohm

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • Max Output Level

    27 dBu

  • MON & FX Output

    1/4" TRS Connector Unbalanced

  • STREAM/RCA Output

    RCA Connector Unbalanced

  • Phones Output

    1/4" TRS Connector Unbalanced

  • Main Mix Noise

    Balanced Output

  • Main Mix @ -Infinite

    -99 dBu A-Weighted

  • Channel @ -Infinite

    -99 dBu A-Weighted

  • Channel @ -Infinite

    -99 dBu A-Weighted

  • Main Mix @ 0 dB

    -79 dBu A-Weighted

  • Main Mix @ 0 dB

    -79 dBu A-Weighted

  • Channel @ 0 dB

    -75 dBu A-Weighted

Phantom

Jump to...
  • External Power

    48 V

  • Battery Power (New)

    17.5 V

Power Supply

Jump to...
  • Power Consumption

    8 W

  • Adapter Input

    100-240 V-, 50/60 Hz, 0.5 A

  • Adapter Output

    18 V DC 1.0A

Battery

Jump to...
  • Battery

    High Quality Alkaline 9V PP3
    2x for Main Power, 3x if Phantom Power is Also Required

  • Battery Life

    4 Hours

  • Battery Info

    Optional, Not Included

  • Battery Material

    Alkaline

  • Battery Type

    9-Volt

  • Battery Quantity

    2

Physical

Jump to...
  • Standard Operating Temperature Range

    41 Degree F - 113 Degree F (5 Degree C - 45 Degree C)

  • Dimensions (W x D x H)

    11.7 x 8.6 x 3.1" (297.0 x 219.2 x 78.4mm)

  • Weight

    4.59 lbs (2.08kg)

  • UPC Code

    787790551058

17 Accessories for Behringer XENYX 1003B Premium Analog Mixer with 5 Mic Preamps

  • All Accessories (17)
  • Cables & Adapters (6)
  • Microphones (6)
  • Microphones & Audio (1)
  • Headphones (4)

About Behringer XENYX 1003B

Let the XENYX 1003B Premium Analog Mixer elevate your audio experience to new heights. This professional-grade mixer boasts 10 inputs, including five high-quality mic preamps, enabling you to create a rich, dynamic sound that's ideal for live performances, streaming, podcasting, and recording sessions.

Experience the warmth and ultra-musical sound produced by the award-winning XENYX microphone preamps. These preamps come equipped with 48V phantom power, making it possible to connect even the most sophisticated studio microphones.

The XENYX 1003B stands out with its optional battery operation, providing you with the freedom to create exceptional mixes wherever your performances may lead you. This feature makes the 1003B an excellent choice for mobile mixes or recording sessions, powered by standard 9V batteries.

This mixer allows you to control up to 10 sources, delivering crystal-clear audio output for monitoring via headphones or through high-quality RCA and impedance-balanced 1/4" TRS jack connectors.

Each channel on the 1003B features a dedicated 60-mm fader, offering precise control over the channel's level. The 3-band channel EQ provides accurate and musical sound shaping for any input signal.

For added versatility, an integrated post-fader FX send control per channel lets you connect any external FX processor of your choice. The monitor bus sums up the channel signals before fader and EQ, allowing you to create an independent monitor mix.

The XENYX 1003B Premium Analog Mixer is not just a high-quality audio device; it's a compact, durable, and flexible solution for all your audio mixing needs. It's the perfect partner for professional quality microphones and a must-have for any serious audio enthusiast.

Behringer XENYX 1003B Features

  • Ultra-low noise analog mixer for streaming, podcasting and recording
  • 2 Award winning XENYX microphone preamps with inserts for external processing
  • 3 Award winning XENYX microphone preamps with stereo line inputs
  • 1 Dedicated stereo line input channel
  • Analog mixing and 3-band equalization for pure sound
  • Optional battery operation for mobile recording (9V batteries not included)
  • 60-mm faders for accurate level control
  • Phantom power for use with condenser microphones
  • Post Fader FX send control per channel for using external effects processors
  • Pre EQ Monitor send control per channel for an independent monitoring mix
  • High-quality monitoring, headphones, and streaming outputs

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Key Features

  • Achieve pristine audio with this premium analog mixer, perfect for studio recording.
  • Five XENYX mic preamps deliver low noise and high headroom for crystal-clear sound.
  • Shape your sound with ease using the 3-band EQ control on each channel of this mixer.
  • Seamlessly connect to your computer via the USB interface for recording and playback.
  • Use this durable mixer for live sound, podcasts, or home studio setups with confidence.
  • Enjoy versatile input channels for mics, instruments, and line-level sources on stage.

What's in the box:

  • Behringer XENYX 1003B Premium Analog Mixer with 5 Mic Preamps
  • Power Adapter
  • Adorama 1 Year Limited Warranty
