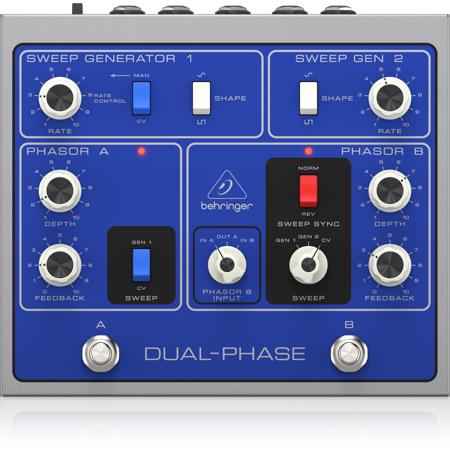

Behringer Authentic Dual Analog Phase Shifter with 12 Opto-Couplers

SKU: BE0709AJH861

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Behringer Dual Phase Specifications

Signal Connections

Signal Connections

Jump to...
  • Input A / B

    2x 1/4" TS jacks, unbalanced
    Impedance: 30 k Ohm , unbalanced
    Maximum input level: +20 dBu

  • Output A / B

    2x 1/4" TS jacks, unbalanced
    Impedance: < 470 Ohm, unbalanced
    Maximum output level: +19.5 dBu

  • CV IN

    1x 1/4" TRS jack, 1 V/oct
    CV input range: 0 V to +5 V

Controls

Jump to...
  • Sweep generator 1 / 2

    Rate: 2x rotary knobs
    Control range: 0.1 Hz to 18 Hz, adjustable
    Shape: 2 x rocker switch
    Sine / square wave, switchable

  • Phasor A

    Sweep: 1 x rocker switch
    Sweep generator 1 / control voltage, switchable
    Depth: 1x rotary knob
    Feedback: 1x rotary knob

  • Phasor B

    Sweep sync: 1x rocker switch
    Normal/reverse phase, switchable
    Sweep: 1x rotary switch
    Sweep generator 1 / generator 2 / control voltage, switchable
    Depth: 1x rotary knob
    Feedback: 1x rotary knob

Power Supply

Jump to...
  • Power supply

    External adapter

  • Power input

    Standard 9 - 12 V DC, center negative, > 700 mA

  • Power consumption

    6 W

Physical

Jump to...
  • Dimensions (H x W x D)

    2.48 x 7.87 x 6.87" (62.9 x 200 x 174.6mm)

  • Weight

    2.7 lbs (1.2 kg)

  • UPC Code

    4033653016544

About Behringer Dual Phase

Not Just a Phase
A mainstay for many musicians since the 1970s, you can hear phasers in countless pop, rock, funk, new wave and alternative tracks over the years. Whether it's dreamy Gilmour-esque soundscapes or super-trippy ring-modulator tones, the Behringer DUAL-PHASE provides possibilities that are simply out of this world.

Recreation Done Right
The DUAL-PHASE is an authentic recreation of the popular phase shifter from the '70s. It features 2 phase shifters, each with their own RATE, DEPTH and FEEDBACK controls, that you can then run in series or parallel. Each phase shifter also allows you to switch the wave shape oscillator between sine and square wave. The DUAL-PHASE brings all the amazing features from the original '70s design, plus a few modern ones, that are sure to enhance your pedal board or synth setup.

Han(ds-free) Solo
What sets the DUAL-PHASE apart from the original is its integrated dual footswitches that you can use to engage or disengage either Phasor A or B - at just the push of a button. Are your hands too busy playing You can connect an expression pedal or any control voltage source to manipulate the sweep speed of any of the two phasors on the fly as you're deep into your killer solo.

Power and Strength
Running on standard 9-12 volt DC power, the DUAL-PHASE integrates into your setup effortlessly. Also, always stay gig-ready as a rugged and reliable metal construction supplies the DUAL-PHASE with the strength needed to stand up to the rigours of the road - and the heaviest of stomps.

Unlocked Potential
If you're looking for that perfect phaser or just want something new to add to your sound, then the Behringer DUAL-PHASE is the essential tool to unleash your creative beast

Behringer Dual Phase Features

  • Classic dual phase shifter for keyboards, guitar, drum machines and other sound sources
  • Authentic recreation of the popular phase shifter from the '70s
  • 12 opto-couplers for deep and natural phasing effects
  • 2 independent phasors with Depth and Feedback controls
  • 2 independent sweep generators with Rate and Shape controls
  • Input selector combines both phasors for creative sound effects
  • Sweep and Sync controls allow for a wide selection of modulation sources
  • CV input for easy remote control with external devices
  • Dual footswitch with true-bypass function for ultimate signal integrity
  • Rugged and reliable metal construction
  • Runs on Behringer PSU-SB DC power supply (not included)

Key Features

  • Classic dual phase shifter for keyboards, guitar, drum machines and other sound sources
  • Authentic recreation of the popular phase shifter from the '70s
  • 12 opto-couplers for deep and natural phasing effects
  • 2 independent phasors with Depth and Feedback controls
  • 2 independent sweep generators with Rate and Shape controls
  • Input selector combines both phasors for creative sound effects

What's in the box:

  • Behringer Authentic Dual Analog Phase Shifter with 12 Opto-Couplers
  • (PSU-SB DC Power Supply Not Included)
  • Behringer 1 Year Limited Warranty
