New Arrival

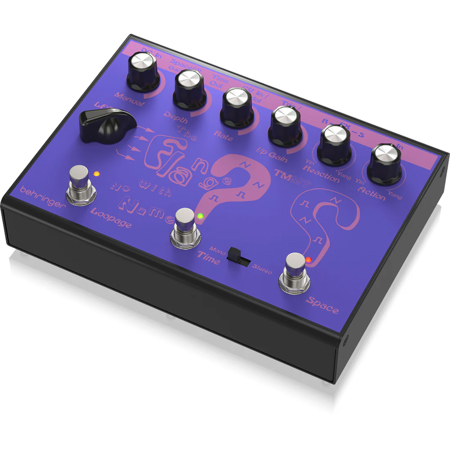

Behringer The Flange with No Name Modulation Pedal

SKU: BE0709ALU86 MFR: 0709-ALU86-001
$119.00
Earn VIP Reward Points

Key Features

  • Achieve unique soundscapes with the Behringer Flange Modulation Pedal, perfect for guitarists.
  • Experience precise control over your tone with dedicated Manual, Depth, and Rate knobs.
  • Integrate seamlessly into your existing setup using versatile 1/4" TS input and output connections.
  • Unleash creative audio effects with an intuitive design, ideal for studio and live performances.
  • Craft a wide range of sonic textures, from subtle swirls to dramatic jet-plane flange effects.
  • Enjoy reliable performance and exceptional sound quality, a hallmark of Behringer audio products.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Behringer The Flange with No Name Specifications

Audio Connections

Audio Connections

Jump to...
  • Input

    Connector: 1x 1/4" TS, unbalanced
    Impedance: 1 M Ohm

  • FX loop (send / return)

    Connector: 1x 1/4" TRS, unbalanced
    Output impedance 470 Ohm
    Input impedance 42 k Ohm

  • Output mono

    Connector: 1x 1/4" TS, unbalanced
    Impedance: 1.5 k Ohm

Controls Connections

Jump to...
  • CV In/Pedal

    Connector: 1x 1/4" TRS
    Impedance: 800 k Ohm, unbalanced
    CV input range: 0 V to +5 V

  • Trig/Gate

    Connector: 1x 1/4" TRS
    Impedance: 26 k Ohm, unbalanced
    CV input range: 0 V to +5 V

Controls

Jump to...
  • Manual

    1x rotary knob

  • Depth

    1x rotary knob

  • Rate

    1x rotary knob

  • I/P Gain

    1x rotary knob

  • Reaction

    1x rotary knob

  • Action

    1x rotary knob

  • LFO

    1x rotary switch

  • Loopage

    1x rotary switch

  • Time

    1x rotary switch

  • Space

    1x rotary switch

  • Frequency response

    20 Hz to 20 kHz (+0 / -2 dB)

  • Dynamic range

    > 80 dB

  • Signal-to-noise ratio

    > 82 dB

  • Overall gain

    +12 dB

Power Supply / Voltage

Jump to...
  • Power input

    Standard 9 V DC, center negative, 400 mA (power supply not included)

  • Power consumption

    0.7 W

Physical

Jump to...
  • Dimensions (H x W x D)

    2.4 x 7.9 x 5.9" (60.7 x 200.1 x 148.5mm)

  • Weight

    2.38 lbs (1.10kg)

  • UPC Code

    4033653000642

About Behringer The Flange with No Name

Behringer's THE FLANGE WITH NO NAME is a versatile, delay-driven modulation unit that pushes far past traditional flanger territory. Equipped with dual audio paths, comprehensive modulation and delay shaping, an onboard FX loop, and CV integration, it's designed for musicians and producers who want to bend, reshape, and completely reimagine their sound-whether performing live or crafting textures in the studio.

At its core, the pedal delivers the iconic jet-like sweeps and whooshing resonance associated with classic flanging, anchored by rich analogue circuitry and a smooth, musical LFO. But once you start digging into its expanded parameters and routing tools, the pedal reveals a much more exploratory personality. It can drift into phaser-like motion, chorus-style shimmer, vibrato, tremolo pulses and even chaotic self-oscillation, giving you everything from gentle modulation to unapologetically experimental sound manipulation.

The architecture centers on two dedicated signal paths: a clean, mono dry output, and a delay line that can be sculpted and modulated using the LFO and its detailed controls. Being able to separate, tweak, or route these paths-especially in combination with the FX loop and CV inputs-turns the pedal into a flexible sound-design engine for guitar, bass, synthesizers, or studio processing. Whether adding subtle motion to a clean patch, transforming percussion loops, or sending full mixes into swirling modulation, this unit is built for sonic exploration.

All of this is housed in a solid chassis adorned with retro 90s-style graphics and an intuitive control layout. Essential parameters like Depth, Rate, Manual, and Gain make dialing in familiar flanger tones straightforward, while additional switches and knobs open the door to deeper experimentation when needed. True bypass preserves your dry signal when the effect is disengaged, and the standard 9 V DC power input ensures seamless integration into modern pedalboard setups.

Behringer The Flange with No Name Features

  • Timeless Modulation: Creates classic, vintage flanger effects reminiscent of iconic recordings
  • Analog Circuitry: Employs analog technology for warm and organic sound quality
  • Depth Control: Adjusts the intensity of the flanging effect, from subtle to intense sweeps
  • Rate Knob: Fine-tunes the speed of the modulation, allowing for slow sweeps or fast warbles
  • Feedback Control: Shapes the resonance and feedback of the flanger, enhancing versatility
  • True Bypass: Maintains pristine signal integrity when the pedal is disengaged
  • Sturdy Build: Robust construction for durability on the road or in the studio
  • Vintage Graphics: Renewed case keeping the original '90s graphics
  • Easy Operation: User-friendly interface with intuitive knob layout for quick adjustments
  • Versatile Application: Suitable for guitar, bass, and various instruments, as well as in the studio
  • Mono or Stereo: Supports both mono and stereo setups for expanded soundscapes
  • Powered Options: Works with a standard DC power supply for convenience

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve unique soundscapes with the Behringer Flange Modulation Pedal, perfect for guitarists.
  • Experience precise control over your tone with dedicated Manual, Depth, and Rate knobs.
  • Integrate seamlessly into your existing setup using versatile 1/4" TS input and output connections.
  • Unleash creative audio effects with an intuitive design, ideal for studio and live performances.
  • Craft a wide range of sonic textures, from subtle swirls to dramatic jet-plane flange effects.
  • Enjoy reliable performance and exceptional sound quality, a hallmark of Behringer audio products.

What's in the box:

  • Behringer The Flange with No Name Modulation Pedal
  • Adorama 1 Year Limited Warranty
