CV 1-4, Trig 1-4, Rise 1 & 4, Fall 1 & 4
Both 1 & 4, Cycle 1 & 4: 3.5mm Jack
CV 1-4, OR, SUM, INV, f1 & 4, 1 EOR, 4 EOC
3.5mm Jack
1 & 4 Rise, 1 & 4 Fall, 1 & 4 Response Knobs
1 - 4 Attenuator Knobs
1 & 4 Cycle Buttons
Rise & Both CVs: 100 k Ohm
Fall CVs: 33 k Ohm
CV Inputs 1 & 4: 33 k Ohm
CV Inputs 2 & 3: 75 k Ohm
Trigger Inputs: 100 k Ohm
Cycle Trigger Inputs: 50 k Ohm
Outputs 1-4, INV, SUM, OR: 680 Ohm
EOR/EOC: 2.2 k Ohm
f 1 & 4: 100 Ohm
Trigger 1 & 4: 4 V minimum
Cycle 1 & 4: 1.8 V minimum
60 mA +12 V / 50 mA -12 V
20HP
3.94 x 5.04 x 0.94" (10 x 12.8 x 2.4cm)
6.74 oz (191g)
644216649303

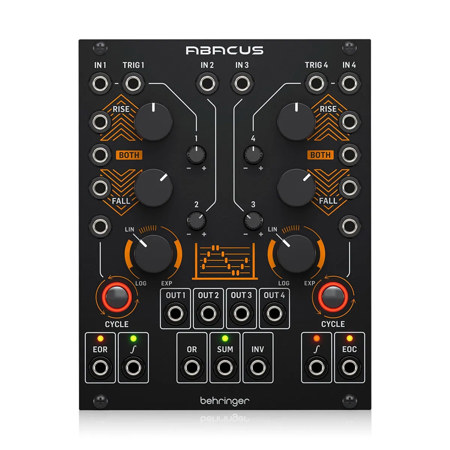

Over the years, the legendary ABACUS Buchla's 257 and 281 analog synthesizers have carved a niche for themselves in the music industry, renowned for their exceptional sound quality and versatility. The Behringer ABACUS Analog Music Computer Module for Eurorack draws inspiration from these classic instruments, integrating an array of linear, logarithmic, and exponential functions that can be triggered or run continuously, offering a unique sound experience.
This innovative module is capable of generating musical envelopes or Low Frequency Oscillator (LFO) signals that can range from a swift 1 kHz to a stretched-out 25 minutes. This advanced feature allows musicians to modulate and push the tempo, creating a dynamic sound landscape that can be tailored to their specific needs.
The ABACUS module is not just about sound generation; it's also about sound manipulation. With its user-friendly control knobs, incoming signals can be amplified, attenuated, integrated, or inverted, opening up a world of unlimited creativity. Apply unique effects like lag, slew, or portamento to control voltages, making it an ideal companion for a sequencer or synth keyboard. The module allows for the combination of up to four control voltages, paving the way for even more complex modulations.
Designed with durability and compatibility in mind, the ABACUS module is ready for any standard Eurorack case. Simply connect the power cables to the power supply and mount the module using the included screws. This high-quality module can be seamlessly integrated with other synth modules, creating a truly unique and personalized setup for any music enthusiast.
