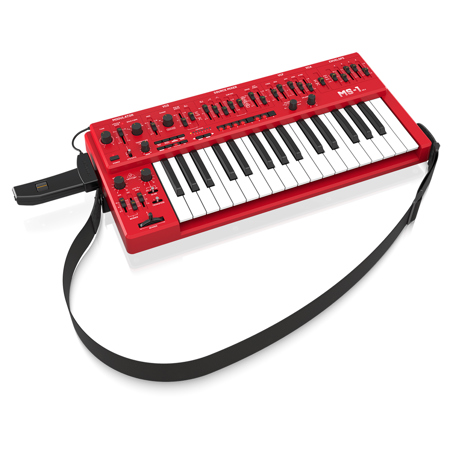

Behringer MS-1 MK II-RD 32-Key Analog Monophonic Synthesizer, Red

SKU: BE07ABK86US1 MFR: 0722-ABK86-US1
Earn VIP Reward Points

Key Features

  • Unleash your creativity with the Behringer MS-1 MK II's pure analog synthesizer design.
  • Craft unique sounds with 32 semi-weighted keys, perfect for expressive keyboard performances.
  • Explore a wide sonic palette using the versatile VCO with multiple waveforms and tuning options.
  • Easily connect to your setup via MIDI and USB, integrating seamlessly with your music software.
  • Shape your sound with the classic VCF and ADSR envelope for dynamic control over your tones.
  • Create complex sequences with the 32-step sequencer, ideal for intricate musical patterns.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer MS-1 MK II-RD Specifications

Synthesizer Architecture

Synthesizer Architecture

Jump to...
  • Implementation

    Analog

Keyboard

Jump to...
  • Keys

    32 semi-weighted, full size keys

  • Keyboard sensing

    Note on/off, velocity

VCO Section

Jump to...
  • Knobs

    Tune (+/-50 cent)
    Range selector (16', 8', 4', 2)

  • Faders

    Modulation depth
    Pulse width modulation (50% to minimum)

  • Switches

    PWM mode (LFO, manual, envelope)

Modulator Section

Jump to...
  • Knobs

    Waveform selector (triangular, square, random, noise)

  • Faders

    LFO/CLK rate

  • Switches

    LFO/CLK rate selector
    Low: 0.1 Hz to 30 Hz
    Medium: 0.2 Hz to 60 Hz
    High: 0.3 Hz to 120 Hz

  • LED

    Rate indicator

Source Mixer Section

Jump to...
  • Faders

    Pulse level
    Sawtooth level
    Triangular level
    Sub oscillator level
    Noise level
    External audio level

  • Switches

    Sub oscillator waveform selector (1 octave down, 2 octave down, narrow 2 octave down)

VCF Section

Jump to...
  • Faders

    Cutoff frequency (10 Hz to 20 kHz)
    Resonance (0 to self-oscillation)
    Envelope depth
    Modulation depth
    Keyboard follow (0 to 100%)

  • Knobs

    FM source selector (pulse, saw, sub osc 1 octave down, 2 octave down, narrow 2 octave down, noise)
    FM depth

VCA Section

Jump to...
  • Switches

    Envelope, gate selector

Envelope Section

Jump to...
  • Faders

    Attack time (2 ms to 4 s)
    Decay time (2 ms to 10 s)
    Sustain level (0 to 100%)
    Release time (2 ms to 10 s)

  • Switches

    Gate-trigger selector (gate + trigger, gate, LFO)

Controllers Section

Jump to...
  • Knobs

    Volume
    Glide time (0 to 5 s)

  • Switches

    Glide (on, off)
    Transpose (low, medium, high)

  • Faders

    VCO bender sensitivity
    VCF bender sensitivity
    LFO modulation

  • Wheel/lever

    Bender (with LFO MOD switch)

  • Handle Controls

    LFO on/off switch
    Bender thumbwheel (increase pitch only)

Sequencer/Arpeggiator Section

Jump to...
  • Steps

    32 steps maximum per pattern

  • Number of patterns

    64 patterns maximum

  • Memory storage

    8 banks with 8 patterns each

  • Switches

    Hold/rest, reset/accent, arp/set end, pattern/bank, shift, page, play/stop, record, keyboard mode, step mode, steps 1-8

  • Knob

    Tempo/gate length

Connectivity

Jump to...
  • DC Input Jack

    9 VDC, 600 mA

  • MIDI In/Out/Thru

    5-pin DIN / 16 channels

  • USB (MIDI)

    USB 2.0, type B

  • Output

    1/4" TS, max. +10 dBu

  • Headphones

    1/4" TRS, max. +2 dBu @32 Ohm

  • External audio input

    1/4" TS, max. +20 dBu

  • Footswitch (optional)

    Sequencer hold (1/4" TS)

  • 3.5 mm TS inputs

    VCF control voltage (0 to 7 V)
    External clock (+2.5 V or more)
    Control voltage (1 V/octave, 0 to 7 V)
    Gate (+2.5 V or more)

  • 3.5 mm TS outputs

    Control voltage (1 V/octave, 0.417 to 5 V)
    Gate (off= 0 V, on= 10 V)
    Velocity (0 to 5 V)

  • 3.5 mm Handle connectors

    Mod, grip

  • Type

    Class compliant USB 2.0, type B

  • Supported operating systems

    Windows 7 or higher
    Mac OS X 10.6.8 or higher

Power Requirements

Jump to...
  • External power adapter

    9 VDC, 1700 mA

  • Power consumption

    5.4W maximum

Environmental

Jump to...
  • Operating temperature range

    41 Degree F to 113 Degree F (5 Degree C to 45 Degree C)

Physical

Jump to...
  • Dimensions (H x W x D)

    3.4 x 22.4 x 10.5" (85 x 569 x 267mm)

  • Weight

    10.1 lbs (4.6kg)

About Behringer MS-1 MK II-RD

After a true homage to the iconic synthesizers of the 1980s and 90s, the Behringer MS-1 MK II-RD 32-Key Analog Monophonic Synthesizer in vibrant red offers an ultra-affordable solution for musicians seeking classic analog sound with modern enhancements. This synthesizer retains all the beloved features of the original, such as a 32-step sequencer, arpeggiator, and live performance kit, while introducing additional capabilities for sound creation with remarkable finesse and ease.

Equipped with 32 semi-weighted full-size keys, the MS-1 MK II-RD boasts a pure analog signal path and an authentic 3340 Voltage Controlled Oscillator (VCO). This VCO provides an impressive range of four simultaneously-mixable waveforms saw, triangle, square/pwm, and octave-divided square sub-oscillator allowing for extensive sound sculpting. The oscillator's flexibility is further enhanced by its adjustable 4-octave range (16', 8', 4', and 2'), empowering musicians to explore their creative potential fully.

The heart of the MS-1 MK II-RD's sound lies in its versatile Voltage Control Filter (VCF), featuring faders for cutoff frequency, resonance, envelope and modulation depth, and keyboard follow. This VCF can be modulated through the ADSR envelope, keyboard tracking, and Bender controller, offering a wide array of sound-shaping possibilities. The Frequency Modulation (FM) Amount knob and FM Source selector provide additional layers of sound modification.

The synthesizer's envelope generator includes four ADSR (Attack, Decay, Sustain, and Release) faders, complemented by a 3-position switch for Gate, Gate + Trigger, and LFO. This setup allows for precise control over the sound's evolution, whether applied to the VCA for note level control or the VCF for filter cutoff frequency modulation.

With an onboard sequencer capable of programming up to 32 steps of notes and rests, the MS-1 MK II-RD allows for the creation, storage, and recall of up to 64 patterns across 8 banks. This feature supports both Keyboard mode for pattern creation and storage, and Step mode for interactive composition.

Designed for live performance, the MS-1 MK II-RD includes a guitar strap and handgrip with a pitch bend wheel and pitch modulation trigger, enabling musicians to take center stage. The noise generator serves as a modulation source, creating distortion-like effects, while the glide (portamento) feature ensures smooth transitions between notes. The Bender is assignable to the VCO, VCF, and pitch mod wheel, offering further modulation possibilities.

With 57 knobs, faders, and switches, the MS-1 MK II-RD's intuitive layout invites musicians to immerse themselves in music creation. Connectivity options include MIDI I/O and Thru over USB/MIDI DIN, Velocity Out, CV, Gate, External Clock In, VCF CV In, Hold, External Audio, Phones, and main Output, ensuring seamless integration into any setup.

The Behringer MS-1 MK II-RD synthesizer is a powerful tool for unleashing your imagination, delivering classic analog sound with modern versatility. Whether you're crafting super-fat bass lines, soaring leads, or otherworldly effects, this synthesizer is your gateway to limitless sonic exploration.

Behringer MS-1 MK II-RD Features

  • Amazing monophonic synthesizer with authentic 3340 analog oscillator for insanely fat music creation
  • MK II Version featuring improved VCF and VCA designs, dual-mode portamento and Sync In functions
  • Pure analog signal path based on legendary VCO, VCF and VCA designs to recreate the classic sound performance
  • Oscillator with 4 simultaneously-mixable waveforms: saw, triangle, square/PWM, and octave-divided square sub-oscillator
  • Resonant VCF can be modulated with ADSR, LFO, keyboard tracking and bender controller
  • 6 FM sources based on NovaMod allow for creative VCF modulation and unheard of filter effects
  • ADSR envelope generator for incredible waveshaping
  • Easy-to-use 32-step sequencer with 64 sequence locations
  • Arpeggiator with wide patterns for great sound effects
  • Attachable handgrip included with pitch bend wheel and pitch modulation trigger
  • Guitar strap included for live jamming on stage
  • Bender assignable to VCO, VCF and pitch mod wheel on the attachable handgrip
  • Noise generator can be used as a modulation source for distortion-like effects
  • Incredible portamento function for fantastic sound effects
  • Pulse wave can be modulated by LFO, envelope and manually
  • 57 sliders and switches to give you direct and real-time access to all important parameters
  • External audio input for processing external sound sources
  • Comprehensive USB/MIDI implementation for connection to keyboard/sequencer

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Unleash your creativity with the Behringer MS-1 MK II's pure analog synthesizer design.
  • Craft unique sounds with 32 semi-weighted keys, perfect for expressive keyboard performances.
  • Explore a wide sonic palette using the versatile VCO with multiple waveforms and tuning options.
  • Easily connect to your setup via MIDI and USB, integrating seamlessly with your music software.
  • Shape your sound with the classic VCF and ADSR envelope for dynamic control over your tones.
  • Create complex sequences with the 32-step sequencer, ideal for intricate musical patterns.

What's in the box:

  • Behringer MS-1 MK II-RD 32-Key Analog Monophonic Synthesizer (Red)
  • Guitar Strap
  • Adorama 1 Year Limited Warranty
