Just Reduced

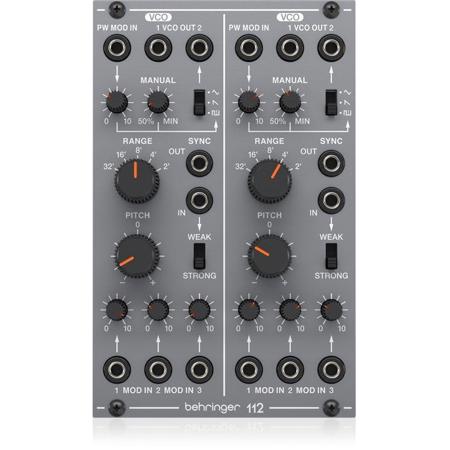

Behringer 112 Legendary Analog Dual VCO Module for Eurorack

SKU: BE112DVCO MFR: 000-DW200-00010
$67.90
Earn VIP Reward Points

Key Features

  • Create rich, layered sounds with the Behringer 112 dual VCO module for your Eurorack.
  • Explore vast sonic landscapes; this analog synthesizer module delivers warm, classic tones.
  • Achieve precise control over your sound with dedicated pulse width and sync inputs.
  • Integrate seamlessly into your Eurorack setup; compact 16 HP size maximizes space.
  • Craft unique soundscapes using the multiple waveform outputs: triangle, sawtooth, pulse.
  • Perfect for sound design; modulate and shape your tones with extensive CV control.
See More Product Details
On Backorder?Expected Availability: 09/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$8.99

2 Year

$18.99

3 Year

$28.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer 112 Dual VCO Specifications

Pulse Width Input

Pulse Width Input

Jump to...
  • Type

    2x 3.5mm jacks, DC coupled

  • Impedance

    70 k Ohm unbalanced

  • Maximum input level

    +/-10 V, 4% per volt

VCO Output

Jump to...
  • Type

    4x 3.5mm jacks, DC coupled

  • Impedance

    1 k Ohm unbalanced

  • Maximum output level

    10 V p-p

  • Frequency range with no external CV

    10 Hz to 500 Hz

  • Frequency range using external CV

    1 Hz to 30 kHz

Sync Input

Jump to...
  • Type

    2x 3.5mm jacks, DC coupled

  • Impedance

    100 k Ohm unbalanced

  • Maximum input level

    10 V p-p

  • Minimum input to trigger

    2.5 V p-p

Sync Output

Jump to...
  • Type

    2x 3.5mm jacks, DC coupled

  • Impedance

    1 k Ohm unbalanced

  • Maximum output level

    10 V p-p

Control Inputs

Jump to...
  • Type

    6x 3.5mm jacks, summed

  • Impedance

    50 k Ohm, unbalanced

  • CV range

    +/-10 V, 1 V/oct

Controls

Jump to...
  • PW level

    -Infinite to unity gain

  • PW manual

    50% to min

  • Waveform

    Triangle, sawtooth, pulse

  • Range

    32', 16', 8', 4', 2'

  • Pitch

    +/-1 octave

  • Weak/strong

    Sync mode select

  • Mod level

    -Infinite to unity gain

  • Power supply

    Eurorack

  • Current draw

    90 mA (+12 V), 70 mA (-12 V)

  • Rack units

    16 HP

Physical

Jump to...
  • Dimensions

    3.2 x 5.1 x 1.8" (81 x 129 x 46mm)

  • Weight

    7.04 oz (199.58g)

  • UPC Code

    4033653032018

About Behringer 112 Dual VCO

Modular Synthesis
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they're about to get even better.

System 100 112 Dual VCO
This is the Behringer System 100 112 DUAL VCO Module. An authentic reproduction of the original "System 100M" circuitry from the 80s that can fit in a standard Eurorack case. The best part It's at a very affordable price. Mix the 112 DUAL VCO in with your existing rig or start your modular synth journey from here. Either way you're sure to have a lot of fun.

Waveforms
Each VCO in the 112 features 3 selectable waveforms for each VCO: triangle, sawtooth, and square. These waves come with pulse-width modulation (PWM) which can be simultaneously controlled manually and via external CV input. Turn the pulse width knob in either direction to increase or decrease the pulse width of the signal coming in through the PW MOD IN jack. You can further tweak the waveforms with the Mod Manual knob.

Pitch and Range
Control the tone of the VCO by setting the octave range of the 112 then fine tune with the; Pitch knob. The VCOs can be synced via strong and weak sync modes for accurate phase locking. To expand the 112 even further, you can plug in any modulation signal, like an LFO, into any of the 3 CV inputs per VCO.

Eurorack Ready
Installing the 112 DUAL VCO is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 112 DUAL VCO to be mixed with other synth modules for a truly unique set up.

Complete Your Collection
Whether you're just getting into modular synths or looking to complete your collection, the 112 DUAL VCO module from Behringer is a great tool to have when creating amazing music.

Behringer 112 Dual VCO Features

  • Amazing Dual VCO module from the '80s
  • Authentic reproduction of original System 100M circuitry
  • Each VCO features 3 selectable waveforms: triangle, sawtooth and square with PWM
  • PWM can be simultaneously controlled manually and via external CV input
  • Each VCO offers pitch and range controls, 2 audio outputs and 3 CV inputs
  • VCOs can be synced via strong and weak sync modes for accurate phase locking
  • 18 controls and switches give you real-time access to all important parameters
  • Eurorack specs: 16 HP, 130 mA +12 V, 70 mA -12V

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Create rich, layered sounds with the Behringer 112 dual VCO module for your Eurorack.
  • Explore vast sonic landscapes; this analog synthesizer module delivers warm, classic tones.
  • Achieve precise control over your sound with dedicated pulse width and sync inputs.
  • Integrate seamlessly into your Eurorack setup; compact 16 HP size maximizes space.
  • Craft unique soundscapes using the multiple waveform outputs: triangle, sawtooth, pulse.
  • Perfect for sound design; modulate and shape your tones with extensive CV control.

What's in the box:

  • Behringer 112 Legendary Analog Dual VCO Module
  • Power Cable
  • Screws
  • User Manual
  • Adorama 1 Year Limited Warranty
