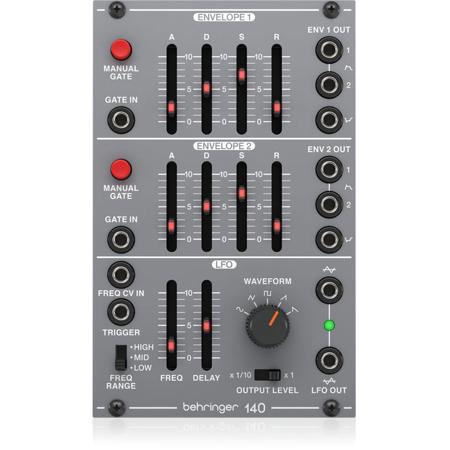

Behringer 140 Legendary Analog Dual Envelope/LFO Module for Eurorack

SKU: BE140DENLFO MFR: 000-DVD00-00010
$43.90
Earn VIP Reward Points

Key Features

  • Explore rich, dynamic textures with the Behringer 140's dual envelope generators.
  • Craft evolving soundscapes using the module's versatile LFO with multiple waveforms.
  • Easily integrate this analog module into your Eurorack system for enhanced synthesis.
  • Achieve precise control over your sound with adjustable attack, decay, sustain & release.
  • Use the external gate input for triggering complex rhythmic patterns and modulations.
  • Create deep basses and shimmering leads with the wide frequency range of this LFO module.
See More Product Details
On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$8.99

3 Year

$13.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer 140 Dual Envelope/LFO Specifications

Inputs
  • Ext gate

    3.5mm jack, DC coupled
    Impedance: 50 k Ohm
    100 k Ohm
    Min input level: +3 V
    Max input level: +10 V

  • Frequency CV input

    3.5mm jack, DC coupled
    Impedance: 100 k Ohm
    Max input level: +/-10 V
    CV scaling: 1 V / octave

  • Ext LFO trigger

    3.5mm jack, DC coupled
    Impedance: 50 k Ohm
    Max input level: +10 V

Outputs

Jump to...
  • Envelope 1/2 out

    3.5mm jack, DC coupled
    Impedance: 1 k Ohm
    Max output level: +/-10 V

  • LFO output

    3.5mm jack, DC coupled
    Impedance: 1 k Ohm
    Max output level: 10 V pk-pk

Controls

Jump to...
  • Attack

    1.5 ms - 7.5 s

  • Decay

    4 ms - 15 s

  • Sustain

    +/-10 V

  • Release

    4 ms - 15 s

  • Manual gate switch

    Envelope cycle start

  • Frequency range switch

    LFO low 0.05 - 1.8 Hz, mid 0.2 - 9 Hz, high 0.5 - 30 Hz

  • Frequency

    LFO frequency, 0.05 Hz - 30 Hz

  • Delay

    LFO operation delay, 0 - 7 s

  • Waveform rotary switch

    Sine, triangle, pulse, sawtooth, rev sawtooth

  • Output level switch

    1 V pk-pk, 10 V pk-pk

  • Power supply

    Eurorack

  • Current draw

    40 mA (+12 V), 40 mA (-12 V)

Physical

Jump to...
  • Rack units

    16 HP

  • Dimensions

    1.7 x 3.2 x 5.1" (44 x 81 x 129mm)

  • Weight

    6.4 oz (181.43g)

  • UPC Code

    4033653032117

About Behringer 140 Dual Envelope/LFO

Modular Synthesis
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they're about to get even better.

140 Envelope/LFO
This is the Behringer SYSTEM 100 140 DUAL ENVELOPE/LFO. An authentic reproduction of the original "System 100M" circuitry from the 80's that can fit in a standard Eurorack case. The best part It's at a very affordable price. Mix the 140 DUAL ENVELOPE/LFO in with your existing rig or start your modular synth journey from here. Either way you're sure to have a lot of fun.

The Envelope Please
The 140 DUAL ENVELOPE/LFO features 2 independent ADSR envelope generators that can be controlled via an external gate or manual triggering. Each envelope generator comes with a Manual Gate that you can press and hold to start the envelope cycle; independent Attack, Decay, Sustain and Release controls to adjust the rate of these parameters and 3.5 mm envelope outputs that allows you to send up to two positive wave forms out to two modules and one negative wave form.

LFO
The LFO on the 140 comes with 5 waveforms: sine, triangle, square, ramp and saw tooth. The Frequency Range switch which sets the oscillating frequency of the LFO along with the Frequency and Delay sliders gives the 140 unparalleled flexibility when it comes to shaping LFO's. You can also connect an external trigger switch which can work with the Delay control to phase lock the LFO to your keyboard playing.

Eurorack Ready
Installing the 140 DUAL ENVELOPE/LFO is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and screw in the module using the included screws. This allows for the 140 to be mixed with other synth modules for a truly unique set up.

Complete Your Collection
Whether you're just getting into modular synths or looking to complete your collection, the 140 DUAL ENVELOPE/LFO module from Behringer is a great tool to have when creating amazing music.

Behringer 140 Dual Envelope/LFO Features

  • Legendary Dual Envelope/LFO module from the 80's
  • Authentic reproduction of original "System 100M" circuitry
  • 2 independent ADSR envelope generators controllable via external gate or manual triggering
  • LFO features 5 waveforms: sine, triangle, square, ramp and saw tooth
  • Frequency, delay and range controls plus external sync input for maximum LFO flexibility
  • External trigger switch lets you phase lock the LFO to your keyboard playing
  • 2 LFO outputs can be switched between x1/10 or x1 level
  • 3 envelope outputs (2 normal, 1 inverted)
  • 15 controls and switches give you real-time access to all important parameters
  • Eurorack specs: 16 HP, 50 mA +12 V, 50 mA -12 V

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Explore rich, dynamic textures with the Behringer 140's dual envelope generators.
  • Craft evolving soundscapes using the module's versatile LFO with multiple waveforms.
  • Easily integrate this analog module into your Eurorack system for enhanced synthesis.
  • Achieve precise control over your sound with adjustable attack, decay, sustain & release.
  • Use the external gate input for triggering complex rhythmic patterns and modulations.
  • Create deep basses and shimmering leads with the wide frequency range of this LFO module.

What's in the box:

  • Behringer 140 Legendary Analog Dual Envelope/LFO Module
  • Power Cable
  • Screws
  • User Manual
  • Adorama 1 Year Limited Warranty
