Beseler 854502 Specifications

  • Max. Film Format

    4x5"
    or w/8x10 Conversion Kit (#8350)

  • Maximum Height

    w/Beseler Condenser Lightsource: 64" (1 625 mm)
    w/Beseler Colorheads: 61" (1 549 mm)
    w/Beseler Condenser Colorheads: 66" (1 676 mm)
    w/Beseler 45A: 58½" (1486 mm)
    w/Beseler 810: 61½" (1 562 mm)
    w/Omega Condenser Lamphouse: 64" (1 626 mm)
    w/Super Chromega II Colorhead: 58" (1473 mm)
    w/llfospeed Multigrade 500 Head: 61½" (1562 mm)
    w/Aristo Cold Light Head: 57" (1 449 mm)

  • Modular Head System

    8121 45M CONDENSER LIGHTSOURCE, 120V
    8123 45M CONDENSER LIGHTSOURCE, 230V
    8278 DICHRO 45S COLORHEAD, 120V
    8279 DICHRO 45S COLORHEAD, 230V
    8570-71 UNIVERSAL 45 LIGHTSOURCE WITH POWER SUPPLY, 120V
    8350 810 CONVERSION KIT, 120V

  • Baseboard Size

    #8561 1½"T x 23½"W x 30"D (38 mm x 603 mm x 762 mm)
    Usable baseboard: 23½" x 23½" (603 mm x 603 mm)

  • Maximum print size on baseboard

    24 x 36" (610 x 914 mm)

  • Filter Drawer

    No

  • Replacement Lamp

    8108 250 watts 82 volts lamp for Dichro 45 and Universal 45 lightsources
    8100 150 watts 120 volts lamp for condenser lightsource
    8107 150 watts 230 volts lamp for condenser light source
    8125 Exposure flashtube for 45A lightsource
    8126 Focus flashtube for 45A lightsource

  • Reversible Column

    No

  • Wall Projection

    No

  • Tilt/Shift Lens Stage

    No

  • Voltage

    120V

  • Dimensions

    17½"H x 31"W x 59"L (445 mm x 789 mm x 1499 mm)

  • Shipping Weight

    118 lbs. (53.6 Kg)

1 Accessories for Beseler 45V-XL Enlarger Chassis

  • All Accessories (1)
  • Timers (1)
Gralab Model 300 60-Minute Darkroom Timer 120V/60HZ
Gralab Model 300 60-Minute Darkroom Timer 120V/60HZ
$299.99

About Beseler 854502

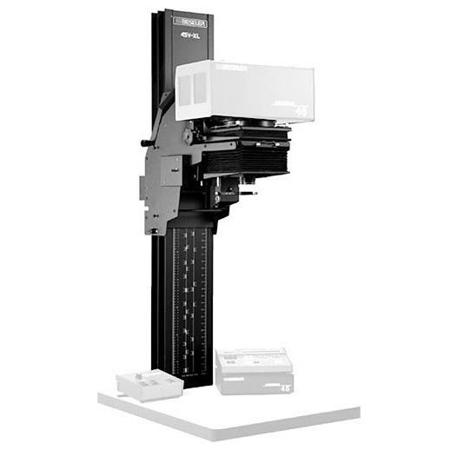

Professional 45V-XL chassis includes flexible control shafts for remote control of both focus and carriage elevation, calibrated magnification scale, and adjustable counterweight set. Requires use of either Baseboard (#8561) or Wall/Table Mount (#8562) for support.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • (Chassis Only)
