Review Summary
2024-10-03T10:28:45
I had to try this amp out at the great price. I've been researching some class D options, and was willing to find out what this type of pro audio amp could do in a home audio application. As I indicated in my review title, I really wanted this amp to sound great. And for the most part, it sounds quite solid, has great balance across all frequencies, and had no problem powering a pair of Q Acoustics tower speakers. In the end, its performance was harsh, perhaps in a subtle way, but harsh none the less. Harsh, over time, really means fatiguing. I've often wondered about when other reviewers talk about class D, when they refer to the sound of the amplifier being "dry". I think I may have discovered first hand what they're referring to here with this amp. It's analytical to the point of sounding as if you're listening to the device the music is being played on, rather than the music itself. It's really kind of a strange experience, to like an amplifier for its resolving capability, and then to hate it for the very same reason. In the end, it wasn't the right fit for my home application. I haven't given up on class D completely, but I have been effectively steered back in the direction of class A/B a little more decisively. I still clicked on the option of recommending this product, but it might take some softening of the signal path by using "warmer" electronics (tube preamps), as some have recommended, to reduce the harshness. Perhaps for pro audio usage, which is obviously for what this amp is truly intended, powering less than resolving monitors, this may be an incredible amplifier.
ROBERT W.
2022-03-26T03:58:15
Good power and punch. Used both with balanced and unbalanced inputs. Very clean each way but I prefer the sound from the balanced connection. Driving some vintage JBL 4210 Control monitors
STAN G.
220 W at 8 Ohms per channel, stereo
400 W at 4 Ohms per channel, stereo
800 W at 8 Ohms bridged mono
2x XLR
2x 1/4" (6.3mm) TRS
2x RCA
XLR, 1/4" (6.3mm) TRS: 20 kOhms, balanced / 10 kOhms, unbalanced
RCA: 10 kOhms unbalanced
2x locking-style speakON professional speaker
connectors
2x binding posts
Output Circuit Type: Class-D
Circuit Protection: Short-circuit current, DC fault, AC fuse, thermal cut
Distortion: < 0.08% (4 Ohms at 150 W, 1 kHz)
Damping Factor: > 160 at 8 Ohms
Frequency Response: 20 Hz to 20 kHz, +0/-1 dB (-10 dB below rated output power)
Frequency Response: 10 Hz to 30 kHz (-3 dB)
Signal-to-Noise: > 100 dB (A weighted, 20 Hz to 20 kHz)
Voltage Gain at Level Control Max, Balanced: 30 dB / RCA: 41 dB
Input Sensitivity at Level Control Max: XLR +4 dBu /RCA -10 dBV
Front: Power switch gain controls (channels A and B)
Rear: Mode switch (stereo / bridge mono)
Power: Amber LED
Signal: Green LEDs -30 to -6 dB
Signal: Yellow LEDs -3, 0 dB
Clip: Red LEDs
Protection: Red LEDs
USA / Canada 120 VAC, 60 Hz (T 10 A H 250 V)
3.7 x 19.0 x 8.7" (9.4 x 48.3 x 22.0cm)
7.1 lb (3.2kg)
192223287082, 653341317834, 192223075498
Clean and Good Punch
By STAN G.
Good power and punch. Used both with balanced and unbalanced inputs. Very clean each way but I prefer the sound from the balanced connection. Driving some vintage JBL 4210 Control monitors

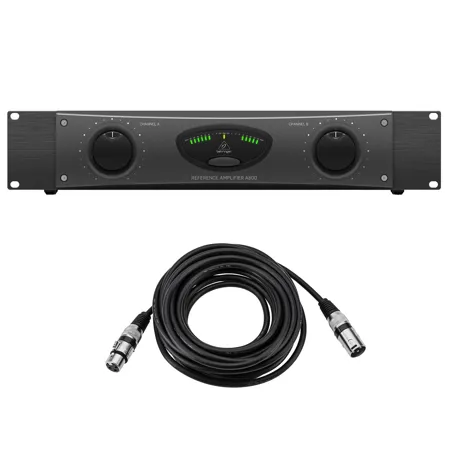

Why settle for anything less than studio-grade clarity and power in your audio setup The A800 Professional 800W Reference-Class Power Amplifier is engineered to meet the exacting standards of both home and professional recording studios, as well as post-production suites. This amplifier is a testament to high-fidelity audio, offering an audiophile-grade experience without the premium price tag.
Crafted for precision, the A800 delivers an ultra-linear amplification that translates into stunningly accurate audio reproduction. You can expect a sound that is free from distortion and artificial coloration, which are often issues with lesser quality amplifiers. The servo-controlled design, coupled with top-tier components, results in impressive specifications and an audio performance that stands out in its category.
Professionals in the audio industry are consistently impressed with the A800's capabilities, particularly noting its exceptional value. With the power to deliver 2 x 400 Watts into 4 Ohms and 800 Watts into 8 Ohms in bridged-mono mode, this amplifier provides ample headroom for the cleanest audio reproduction possible.
The A800 is designed with advanced convection-cooling technology, ensuring it operates noise-free and remains stable even under demanding conditions. The servo-controlled design also enables compatibility with a wide range of passive speaker systems, providing versatility for various audio setups.
Monitoring and connectivity are made simple with the A800. A precise level meter, complete with input clip and channel protection LEDs, allows for accurate performance tracking. The amplifier offers a variety of input connections, including balanced XLR, 1/4" TRS connectors, and unbalanced RCA sockets, catering to a multitude of input requirements. For outputs, the A800 features professional twist-lock and binding post connectors, giving you the flexibility to connect to different speaker systems with ease.
Embrace the power of Class-D amplification with the A800. Our High-Density Class-D amplifier technology not only provides substantial power and exceptional sonic performance but does so in a lightweight, ultra-portable package that is easy to manage. This energy-efficient design significantly reduces the need for heavy power supplies and large heat sinks, making the A800 a more sustainable choice that benefits both the user and the environment.
The A800 also incorporates our innovative SmartSense Impedance Compensation technology, which enhances the Class-D amplification experience. This technology ensures a full-range frequency response with dynamic bass and smooth high-frequency reproduction, regardless of the speaker load. The output is consistently flat across the impedance spectrum, resulting in a more accurate and controlled sound.
With a high damping factor, the A800 provides superior amplifier control over connected loudspeakers, particularly in the low-frequency range, for a robust and impactful audio reproduction. Whether you're a professional audio engineer or an audiophile, the A800 Professional 800W Reference-Class Power Amplifier is designed to exceed your expectations and deliver unparalleled audio performance.
