Behringer AMP800 4-Channel Headphone Amplifier
See all Behringer items

Behringer AMP800 Ultra-Compact 4-Channel Stereo Headphone Amplifier

SKU: BEAMP800
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Behringer HA-400: Picture 1 regular
Behringer HA-400 4-Channel Ultra-Compact Stereo Headphone Amplifier
$24.90
Behringer HA-400: Picture 1 regular
Behringer HA-400 Ultra Compact 4-Ch Headphone Amplifier, with TAPH100 Headphones
$54.89
Behringer HA-400: Picture 1 regular
Behringer HA-400 4-Channel Ultra-Compact Stereo Headphone Amplifier, with Cable
$33.85
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Behringer AMP800 4-Channel Headphone Amplifier Specifications

  • Number of Channels

    4

  • Input Connections

    4 x 1/4" TRS Phone (L,R Pairs), Balanced

  • Output Connectors

    2 x 1/4" TRS Phone L,R Link, Balanced
    4 x 1/4" TRS Headphone, Rear Panel
    4 x 1/4" TRS Headphone, Front Panel

  • Maximum Output Level

    +21dBm/124mW (100 Ohm load)

  • Function Controls

    2 x A,B Input Balance Knobs
    2 x A,B Input Level Knobs
    4 x Individual Phones Level Knobs
    4 x Channel Input Selector Switches
    1 x Power Switch

  • Frequency Response

    10 Hz - 120 kHz, -3dB

  • THD + N

    0.007% (100 Ohm load)

  • Noise

    < 95dB, 10Hz - 20kHz @ 0dBu, A-weighted

  • Display

    6-segment LED Bar graphs

  • Dimensions

    9.5 x 1.9 x 4.7" (242.6 x 48 x 120mm)

  • Weight

    1.09 lb (494 g)

  • UPC Code

    689076750479

About Behringer AMP800 4-Channel Headphone Amplifier

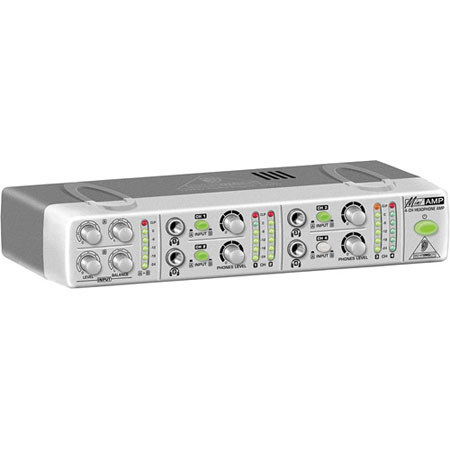

The Behringer AMP800 is highly compact 4-channel headphone amplifier designed for stage or studio headphone monitoring. The unit features 8 individual headphone outputs, LED input and individual channel metering, dual balanced stereo inputs with separate balance and level control, and dedicated level knobs and input selector switches for each output channel.

Behringer AMP800 4-Channel Headphone Amplifier Features

  • Ultra-compact headphone amplifier system for studio and stage applications
  • 4 independent stereo high-power amplifier sections
  • Highest audio quality with virtually all types of headphones even at maximum volume
  • Phones Level control plus accurate 6-segment LED output meter per channel for easy level monitoring
  • 2 balanced stereo main inputs with independent Level and Balance controls for individual mixes, selectable for all 4 headphone amplifiers
  • Accurate 6-segment LED main level meter for precise level indication of both line inputs
  • 2 headphone outputs per channel (front and rear panel) allow a total of 8 headphones to be simultaneously connected
  • Parallel Link Output allows cascading of several headphone amplifiers
  • High-quality potentiometers and illuminated switches for long-term reliability
  • All Mini Series models can be stacked on top of each other to create an ultra-compact signal processor solution
  • High-quality components and exceptionally rugged construction ensure long life

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra-compact headphone amplifier system
  • 4 independent stereo high-power amplifier sections
  • Highest audio quality with virtually all types of headphones even at maximum volume
  • Phones Level control plus accurate 6-segment LED output meter per channel
  • 2 balanced stereo main inputs
  • Accurate 6-segment LED main level meter

What's in the box:

  • Behringer AMP800 4-Channel Headphone Amplifier
  • Power Supply
  • Behringer 1 Year Limited Warranty
