Kit Savings

Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box with Value Series XLR M to F Professional Microphone Cable - 25'

SKU: BEDI4800AA MFR: 000-E5L02-00010 A
$124.80
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box
    Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Achieve pristine sound quality with 4-channel active DI-box for professional audio.
  • Ensure durability and reliable performance with a robust, road-ready design.
  • Experience versatile connectivity with XLR and 1/4" combo jacks for all your gear.
  • Eliminate unwanted hum and low noise interference using the integrated ground lift switch.
  • Power your setup with phantom power or an optional 9V battery for ultimate flexibility.
  • Perfect for studio recording or live sound, delivering crystal-clear audio every time.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Behringer DI4800A Specifications

Inputs
  • Connectors

    4x XLR-1/4" combo jacks, balanced

  • Impedance

    20 k Ohm

  • Max. input level

    +20 dBu

  • Channel boost switchable

    +6 dB,+12 dB,+18 dB

Outputs

Jump to...
  • Connectors

    8x XLR, transformer balanced

  • Impedance

    600 Ohm

  • Max. output level

    +20 dBu

  • Output pad switch

    20 dB attenuation

  • Frequency response

    20 Hz to 20 kHz ( +/-3 dB)

  • THD + N (distortion)

    0.01% @ 1 kHz, 0 dBu

  • Signal-to-noise ratio

    120 dB

  • Ground lift switch

    Removes ground connection

  • Power requirement

    12 V DC, 500 mA

Environmental

Jump to...
  • Operating temperature range

    41 Degree F - 104 Degree F (5 Degree C - 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    -

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x D x H)

    19 x 2.8 x 1.7" (483 x 71 x 44mm)

  • Weight

    3.1 lbs (1.4kg)

  • UPC Codes

    192223286863, 644216641703, 192223075498

About Behringer DI4800A

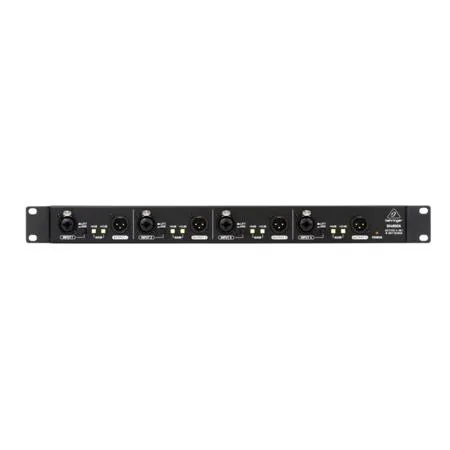

Be at the forefront of audio technology with the ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box. This professional-grade device offers four premium DI channels in a single, compact rack space, making it an ideal solution for musicians and audio engineers seeking high-quality sound and space efficiency.

Each channel of the DI4800A is equipped with a versatile input that accepts both XLR and 1/4" TRS connectors, offering flexibility for a variety of audio equipment. The device also features dual XLR outputs on both the front and back, allowing for a total of eight outputs for seamless connection to your amplifier or monitor console.

Designed to handle virtually any input signal, the ULTRA-DI PRO DI4800A boasts a switchable output attenuation of -20 dB. This feature, combined with the highly acclaimed OT-1 output transformers, ensures a pristine and powerful output, enhancing your audio experience.

As a PRO-Active Direct Injection (DI) box, the DI4800A enables the connection of guitars, basses, keyboards, and other line-level devices to audio mixers and recorders. It takes the DI box functionality a step further by offering +6 dB and +12 dB gain switches, providing a total gain boost of +18 dB, perfect for amplifying low-level signals.

The DI4800A also features a -20 dB attenuation switch per channel and gold-plated XLR output connectors, ensuring reliable, low-noise operation. Additionally, the per-channel ground-lift switches help eliminate ground-loop hum issues, ensuring a clean, clear sound.

Experience more with the 4-channel ULTRA DI PRO DI4800A. It delivers exceptional sound quality at an extremely affordable price, making it a valuable addition to any audio setup.

Behringer DI4800A Features

  • Professional and multi-purpose 4-channel direct injection box for stage and studio applications
  • Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
  • Ultra-flat frequency response due to renowned Behringer OT-1 transformers
  • Total of +18 dB gain boost in three +6 dB increments for pre-amplification of low-level signals
  • Ground Lift switch eliminates typical ground loop problems
  • Switchable -20 dB output attenuation
  • Neutrik combo and gold-plated XLR connectors
  • Powered via external DC power supply (included) with optional battery powered operation (sold separately)

Key Features

  • Achieve pristine sound quality with 4-channel active DI-box for professional audio.
  • Ensure durability and reliable performance with a robust, road-ready design.
  • Experience versatile connectivity with XLR and 1/4" combo jacks for all your gear.
  • Eliminate unwanted hum and low noise interference using the integrated ground lift switch.
  • Power your setup with phantom power or an optional 9V battery for ultimate flexibility.
  • Perfect for studio recording or live sound, delivering crystal-clear audio every time.

What's in the box:

  • Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box
  • DC Power Supply
  • User Manual
  • Adorama 1 Year Limited Warranty
