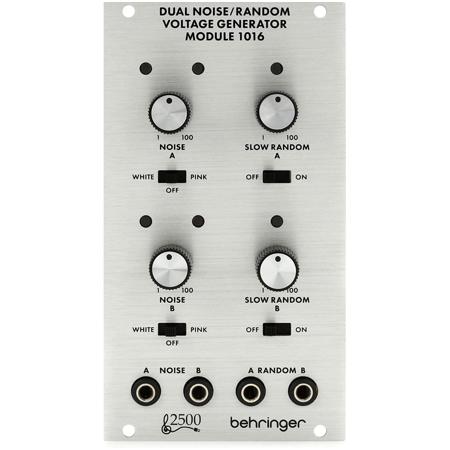

Behringer Legendary 2500 Series 1016 Dual Noise/Random Voltage Generator Module for Eurorack

SKU: BEDNRVG1016 MFR: 000-E9000-00010
$39.90
Earn VIP Reward Points

Key Features

  • Explore unique soundscapes with this Behringer Eurorack module's dual noise generator.
  • Create evolving textures using the 1016 module's random voltage source for Eurorack synths.
  • Easily integrate this 14 HP dual noise/random voltage generator into your Eurorack setup.
  • Get classic analog noise with selectable white or pink noise on this Eurorack synthesizer.
  • Craft experimental sounds; perfect for ambient textures using this voltage generator module.
  • Enjoy precise control with attenuators for both noise and random voltage outputs on your synth.
See More Product Details
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$8.99

3 Year

$13.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer 1016 Specifications

Outputs

Outputs

Jump to...
  • Noise

    Type: 2x 3.5mm TS jacks, DC coupled
    Impedance: 1 k Ohm, unbalanced
    Max output level: +/-5 V

  • Random

    Type: 2x 3.5 mm TS jacks, DC coupled
    Impedance: 1 k Ohm, unbalanced
    Max output level: +/-5 V

Controls

Jump to...
  • Noise

    Attenuates noise generator output

  • Random

    Attenuates voltage output

  • White/pink/of

    Selects white or pink noise, or of

  • Random on/of

    Engages or disengages voltage generator

  • Power supply

    Eurorack

  • Current draw

    45 mA (+12 V), 15 mA (-12 V)

Physical

Jump to...
  • Rack units

    14 HP

  • Dimensions

    1.7 x 2.8 x 5.1" (42 x 71 x 129mm)

  • Weight

    4.58 oz (130g)

  • UPC Code

    4033653032247

About Behringer 1016

Be at the forefront of sound innovation with the Legendary 2500 Series 1016 Dual Noise/Random Voltage Generator Module for Eurorack. This professional-grade module, an authentic reproduction of the original "System 2500" circuitry from the 70s, is a testament to Behringer's commitment to high-quality and durable audio equipment.

The 2500 series synth modules, revered for their distinctive sound, were instrumental in shaping the sonic landscapes of iconic artists like The Who, Jean Michel Jarre, Vangelis, and Kraftwerk. Now, you can harness the same innovative technology to create your own unique soundscapes.

The 1016 module is a versatile and innovative tool, offering dual noise/random voltage generation. This feature allows for a wide range of creative possibilities in sound design and synthesis. The module is equipped with a classic discrete transistor white/pink/random noise source, complete with independent attenuators for the white/pink noise level. It also includes a white/pink selector switch with color-coded LEDs for intuitive use.

The slow random voltage generator produces random CV voltages, with the maximum level controllable via the attenuators. An on/off switch with LED indicators for each channel further enhances usability. The two channels operate independently, opening up even more avenues for creativity.

The 1016 module also boasts comprehensive connectivity. Each channel has a separate white/pink noise output and separate outputs for the random voltages. All outputs are available simultaneously, allowing you to feed multiple noise and CV signals to other modules for a truly unique setup.

Designed to fit seamlessly into a standard Eurorack case, the 1016 module is easy to install. Simply connect the power cable to the power supply and secure the module using the included screws. This compatibility with the Eurorack modular synthesizer system makes the 1016 module a versatile and expandable option for both budding and seasoned musicians and producers.

Experience the fusion of vintage sound and modern technology with the Legendary 2500 Series 1016 Dual Noise/Random Voltage Generator Module for Eurorack. It's not just a tool - it's your gateway to a world of endless musical possibilities.

Behringer 1016 Features

  • Classic 1016 analog dual noise and random voltage generator module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • The module consists of 2 identical white/pink noise and Random Voltage generators
  • The noise outputs are generated from 2 independent transistor noise sources
  • Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
  • 2 output attenuators enable the outputs to be reduced in volume
  • White or Pink Noise are selectable via slide switch and LED indication
  • Random Voltage can be switched on and off via slide switch with LED indication
  • White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
  • Slow random voltages feature peak signal power between 1 Hz and 10 Hz
  • Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Explore unique soundscapes with this Behringer Eurorack module's dual noise generator.
  • Create evolving textures using the 1016 module's random voltage source for Eurorack synths.
  • Easily integrate this 14 HP dual noise/random voltage generator into your Eurorack setup.
  • Get classic analog noise with selectable white or pink noise on this Eurorack synthesizer.
  • Craft experimental sounds; perfect for ambient textures using this voltage generator module.
  • Enjoy precise control with attenuators for both noise and random voltage outputs on your synth.

What's in the box:

  • Behringer Legendary 2500 Series 1016 Dual Noise/Random Voltage Generator Module
  • Power Cable
  • Screws
  • User Manual
  • Adorama 1 Year Limited Warranty
