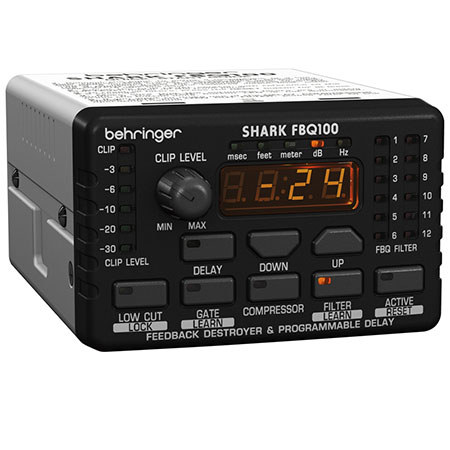

Behringer FBQ100 Specifications
Audio Inputs: Connectors
Audio Inputs: Impedance
6 kOhms balanced, 3 kOhms unbalanced
Audio Inputs: Nominal Operating Level
Microphone or line level source (switchable)
Audio Inputs: Max. Input Level
+19 dBu at microphone level and line level
Audio Outputs: Connectors
Audio Outputs: Impedance
6 kOhms balanced, 30 kOhms unbalanced
Audio Outputs: Nominal Operating Level
Microphone level source or +4dBu (switchable)
Audio Outputs: Max. Output Level
+20dBu at +4dBu nominal level, -12dBu at microphone level
Frequency Response
Noise
> 92dB at line level, unweighted, 22Hz to 22kHz 89 dB at microphone level, unweighted, 22Hz to 22kHz
THD
0.007% typ. at +4dBu, 1kHz, gain 1
Digital Processing: Converters
24-bit Sigma-Delta, 64/128-times oversampling
Display Type
4-digit numeric LED display
Power Supply
Dimensions (H x W x D)
2.2 x 3.5 x 5.2" / 55.88 x 88.9 x 132.08mm (approx.)
Weight
0.84lbs / 0.38kg (approx.)
UPC Code
