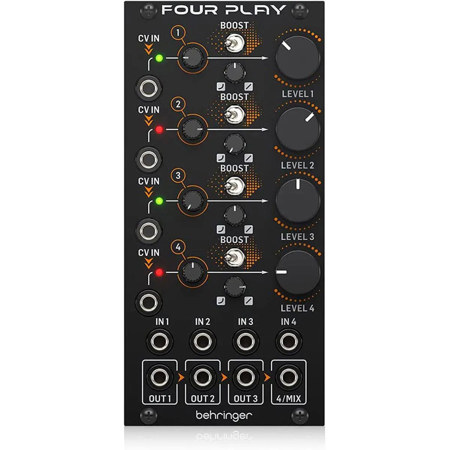

Behringer Four Play 4-Channel VCA and Mixer Module for Eurorack

Where the world of modular synthesis meets modern innovation, the Behringer FOUR PLAY 4-Channel VCA and Mixer Module for Eurorack emerges as a versatile and compact solution. This high-performance module offers four independent VCAs, doubling as a 4-channel voltage-controlled mixer, providing unparalleled flexibility for your electronic music creation.

The Behringer FOUR PLAY is a nod to the groundbreaking synth modules of the 60s, but with a contemporary twist. It seamlessly integrates into your existing Eurorack setup or serves as an excellent starting point for those embarking on their modular synth journey.

This feature-rich quad VCA module comes equipped with CV input attenuators, each accompanied by a bi-color LED to indicate CV input activity and polarity. The inclusion of input boost switches ensures extra gain for lower level input signals, while the curve controls enable you to customize the ideal CV response curve, from fully exponential to linear, or any blend in between.

The FOUR PLAY's level controls set the VCA gain and allow manual control of the signal output level, whether used as independent VCAs or as a mixer. The DC-coupled VCAs can process both audio signals and CV signals, enhancing the module's versatility.

Connectivity is at the heart of the FOUR PLAY, featuring 4 CV inputs for control or modulation of the VCAs, which are cascaded for the option of controlling all 4 VCAs with a single CV input. The 4 signal input jacks offer excellent headroom, and the 4 VCA outputs are cascaded, transforming the module into a 4-input voltage-controlled mixer when only the 4/MIX output jack is used. Other combinations can be easily selected according to which output jacks are inserted, such as dual 2 input mixers, for ultimate flexibility.

Installation is a breeze with the FOUR PLAY, designed to fit into a standard Eurorack case. Simply connect the power cables to the power supply and secure the module using the included screws. This allows the FOUR PLAY to blend with other synth modules for a truly unique setup.

The Behringer FOUR PLAY 4-Channel VCA and Mixer Module for Eurorack is an affordable yet invaluable tool for both modular synth novices and seasoned collectors, designed to inspire and facilitate the creation of amazing music.
