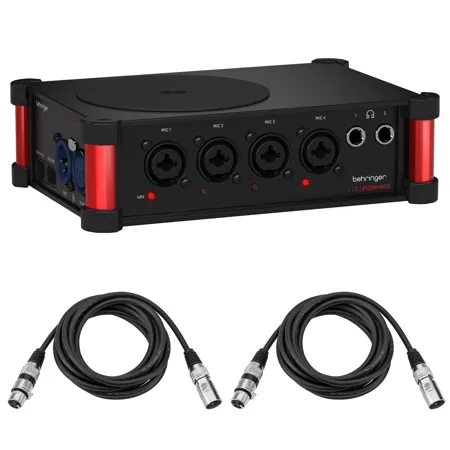

Behringer FLOW 4VIO StageConnect I/O Extender for FLOW 4V Mixers, Kit with XLR Cable

SKU: BEH0606ADZ8K MFR: 0606-ADZ86-US1 K
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer FLOW 4VIO StageConnect I/O Extender for FLOW 4V Mixers
    Behringer FLOW 4VIO StageConnect I/O Extender for FLOW 4V Mixers
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 10'
    H&A Value Series XLR M to F Professional Microphone Cable - 10'

    Qty: 2

  • +
  • Show more

Key Features

  • Expand your FLOW 4V mixer's capabilities with this 4VIO StageConnect extender for seamless audio integration.
  • Enjoy crystal-clear sound quality with an impressive 140 dB dynamic range, perfect for professional recordings.
  • Benefit from versatile connectivity with 4 XLR / 1/4" TRS combo jacks, accommodating various microphones and instruments.
  • Power your setup conveniently via USB-C, ensuring reliable performance during live events or studio sessions.
  • Achieve pristine audio capture with an ultra-low EIN of -130dBu, minimizing unwanted noise in your recordings.
  • Experience effortless portability with its compact and lightweight design, ideal for on-the-go audio professionals.
See More Product Details
Overview
Compare
Compatibility
Specs
Protection

Reviews about this item

Review Summary

Behringer FLOW 4VIO with Cable Specifications

General

General

Jump to...
  • Frequency Range (+/- 1 dB)

    5 Hz - 22 kHz

  • Dynamic Range (Inputs)

    140 dB (142 dB A-weighted)

Mic Inputs

Jump to...
  • Type

    4x XLR / 1/4" TRS combo jacks, balanced

  • EIN (20 Hz to 20 kHz)

    -130dBu (-132dBu A-weighted)

  • Distortion (THD + N)

    0.007% @ -40 dBu in
    0.003% @ -20 dBu in

  • Crosstalk rejection @ 1kHz

    -110 dB (adjacent channels)

  • Max Input Level

    XLR: +18 dBu

  • Impedance

    XLR: 9.5 kOhm bal

  • Max Gain

    +70 dB

  • Phantom Power

    + 48 V, switchable

Phones Outputs

Jump to...
  • Type

    2x 1/4" TRS jack, stereo

  • Max Output level (30 Ohm load)

    72 mW

  • Distortion (THD + N)

    0.005%

USB Audio Interface

Jump to...
  • Type

    USB 2.0

  • Connector

    Type C

  • Sample Rate

    48 kHz

  • Bit Depth

    24-bit / 32-bit float

  • Channel at Host

    4 IN / 4 OUT

Power Supply / Voltage

Jump to...
  • Connector

    USB-C

  • Power Supply / Voltage

    USB-C PD

  • Power Consumption

    8 W

Physical

Jump to...
  • Dimensions (H x W x D)

    2.08 x 7.24 x 5.03" (53 x 184 x 128mm)

  • Weight

    26.45 oz (750g)

  • UPC Codes

    192223297500 | 4033653000727 | 192223075474

Designed For Use With:

  • Field Recorder

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Behringer FLOW 4VIO with Cable

FLOW 4VIO Expander
FLOW 4VIO is an external expander and digital stage box for FLOW 4V. It adds four dual-stage microphone preamps and two headphone amps, extending input and monitoring capacity for professional video production workflows.

FLOW 4VIO adds four no-clip mic preamps, doubling your system to a total of eight. Built to the exact same dual-stage, true 32-bit architecture as FLOW 4V, they deliver up to 142 dB of dynamic range. Impressive!

Expanded Headphone Monitoring
Need everyone to hear clearly on set? FLOW 4VIO adds two headphone amps, giving you three independent headphone outputs in total. They can drive very high-impedance over-ear headphones and also avoid distortion on lower impedance in-ears. No splitters, no workarounds.

Everything Over a Single Cable
Place FLOW 4VIO up to 40 meters away from FLOW 4V - using one cable. The key is StageConnect. It's a professional digital connection that carries all signals and even power.

• Sub-millisecond latency, uncompressed digital audio
• On standard XLR mic cable up to 5 m
• On DMX cable up to 40 m
• Cable runs can be doubled using a StageConnect SC-RE Range Extender

FLOW 4VIO is a true StageConnect I/O box and can also be combined with any other StageConnect device such as WING.

FLOW 4V is an audio field recorder designed for modern video workflows. It captures crystal-clear multitrack audio on set, stays perfectly in sync with your camera, and lets you move faster from shoot to edit - whether you're filming, streaming, or creating content.

FLOW 4V comes with 4 dual-stage mic preamps on board - and FLOW 4VIO seamlessly expands the system to 8 inputs without changing workflows or adding complexity.

Behringer FLOW 4VIO with Cable Features

  • I/O Extension for FLOW 4V mixers, providing 4 additional microphone preamps with dual-stage A/D converters for ultimate dynamic range
  • 2 headphone outputs with separate level controls
  • Class-compliant USB Audio/ MIDI interface
  • StageCONNECT multi-channel audio transmission at sub-millisecond latency, 24 Bit uncompressed PCM, 44.1/48 kHz, using standard XLR cable - for connecting the FLOW 4VIO or other I/O devices
  • Able to power a connected FLOW 4V field recorder and mixer remotely via single XLR cable
  • Can also be used as a class-compliant 4 x 4 channel USB audio interface
  • Remote power available from a Behringer WING StageConnect port and connect as a 4 x 4 channel I/O extension
  • Powered via USB-C, power adapter included, or via XLR StageConnect from compatible devices
  • 1/4-20 integrated thread and screw attaches to camera and tripods, with integrated allen-wrench

Warranty Information

This product has a limited warranty of 12 months.

Compatibility

See Full Compatibility List

Designed for use with: Field Recorder .

Key Features

  • Expand your FLOW 4V mixer's capabilities with this 4VIO StageConnect extender for seamless audio integration.
  • Enjoy crystal-clear sound quality with an impressive 140 dB dynamic range, perfect for professional recordings.
  • Benefit from versatile connectivity with 4 XLR / 1/4" TRS combo jacks, accommodating various microphones and instruments.
  • Power your setup conveniently via USB-C, ensuring reliable performance during live events or studio sessions.
  • Achieve pristine audio capture with an ultra-low EIN of -130dBu, minimizing unwanted noise in your recordings.
  • Experience effortless portability with its compact and lightweight design, ideal for on-the-go audio professionals.

What's in the box:

  • Behringer FLOW 4VIO StageConnect I/O Extender
  • Mic Stand Clip
  • USB-C Cable
  • USB-C Power Adapter
  • User Manual
  • Adorama 1 Year Limited Warranty
