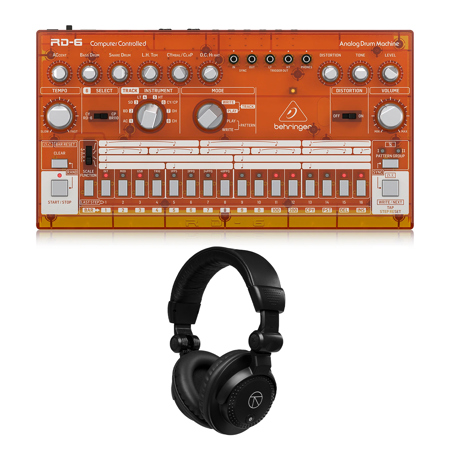

Behringer Rhythm Designer RD-6 Analog Drum Machine, Orange Translucent, Bundle with TAPH100 Headphones

SKU: BERD6TGB MFR: 0704-AAN86-US1 B
$168.99
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer Rhythm Designer RD-6 Analog Drum Machine, Orange Translucent
    Behringer Rhythm Designer RD-6 Analog Drum Machine, Orange Translucent
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • Show more

Key Features

  • Discover versatile sound options with 8 analog voices for dynamic rhythm creation.
  • Enjoy intuitive control interface for seamless beat programming and live performance.
  • Achieve seamless DAW integration via USB 2.0, enhancing your production workflow.
  • Benefit from robust build quality, ensuring durability for studio and stage use.
  • Expand your sonic palette with adaptable module slots for future enhancements.
  • Experience exceptional value with a powerful drum machine designed for creative expression.
See More Product Details
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Behringer Rhythm Designer RD-6 Specifications

Voices
  • Number of sounds

    8

  • Type

    Analog

  • Number of simultaneous voices

    8

  • Voice controls

    Accent: Level
    Bass drum: Level
    Snare drum: Level
    Low tom, hi tom: Level
    Cymbal, clap: Level, br>Open hat, closed hat: Level

Connectivity

Jump to...
  • Power input

    DC input connector

  • Power switch

    Push button on/off

  • USB (MIDI)

    USB 2.0, type B

  • MIDI In, Out / Thru

    2x 5-Pin DIN

  • Start / stop

    1x 1/4" TS

  • Mix out

    1x 1/4" TS, unbalanced, 1 k Ohm impedance

  • Voice out

    6x 1/8" TS, unbalanced, 100 Ohm impedance

  • Sync in / out

    2x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V

  • Trigger outs

    LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length

  • Phones

    1x 1/8" TRS, stereo, 15 Ohm impedance

  • USB

    Class compliant USB 2.0, type B

  • Supported operating systems

    Windows 7 or higher
    Mac OS X 10.6.8 or higher

Pattern/Storage

Jump to...
  • Capacity

    2x 16 Patterns

  • Steps

    16 steps

Power Requirements

Jump to...
  • External power adapter

    9 V DC, 670 mA

  • Power consumption

    2 W max.

  • Indicator

    Power LED

Environmental

Jump to...
  • Operating temperature range

    41 Degree F - 104 Degree F (5 Degree C - 40 Degree C)

Physical

Jump to...
  • Color

    Orange Translucent

  • Dimensions (H x W x D)

    2.2 x 12 x 6.5" (56 x 305 x 165mm)

  • Weight

    32 oz (907.18g)

  • UPC Codes

    192223306394 | 644216639601 | 192223227576

0 Accessories for Behringer Rhythm Designer RD-6 Analog Drum Machine, Orange Translucent, Bundle with TAPH100 Headphones

About Behringer Rhythm Designer RD-6

RD-6-TG
The Rhythm Designer RD6-TG provides all the tools you need to become a master beat-maker, including: 8 drum sound and a 16-step sequencer - for a quick and easy-to-use drum machine that'll shake the house! Whether you're new to drum programming or a seasoned pro looking to enhance your setup, the RD-6-TG has everything you need to step up to the big leagues.

Masterpiece Rejuvenated
Great care has been taken in designing the RD-6-TG to achieve new possibilities in beat creation by reviving a timeless design from one of the most classic drum machines of yesteryear. By taking a fresh and modern approach on a classic drum machine, the RD-6-TG gives you the power to harness the phenomenal sound of the venerable TR-606 and tap into some new features as well. Punchy bass drums through sizzling hi-hats and even the authentic and renowned BR-110 clap sound can be manipulated to take your rhythm performance to the next level. This is an analog beat-making monster!

Complete Control
Built to enhance the way you perform, the RD-6-TG boasts a 16-step drum sequencer which allows for real-time switching between 32 separate patterns. Start building song structures on-the-fly and even edit them to your liking. Mix any of the 8 drum sounds by adjusting their dedicated level knobs. The RD-6-TG also comes with a distortion based on the venerable DS-1. Add spice and a bit of edge to your tone by flipping the Distortion switch on and adjusting the amount and tone of the distortion. Each pattern you create can also be chained into a whole song up to 256 bars which adds up to eight and a half minutes of beats perfect for those spicy jams where you just can't stop.

USB Control
To bring the RD-6-TG into the modern age, USB connectivity has been added for sync and MIDI triggering. This enables the RD-6-TG to be controlled by your DAW if desired, allowing songs and patterns to be swapped or individual sounds to be triggered.

The Numbers
The RD-6-TG has 11 knobs and 26 buttons, all laid out in a highly-intuitive format that puts the fun back into your beat creation. Input and output connections include: Open or Closed Hi-Hat, Clap, Cymbal, Low and Hi Tom, Snare and Bass Drum Voice Outs; Start/Stop for connecting a foot pedal; MIDI In, Out and Thru over USB for connecting the RD-6-TG to a DAW and 5 pin MIDI ports

Behringer Rhythm Designer RD-6 Features

  • Amazing Drum Machine with true analog circuitry for classic sound performance
  • Authentic reproduction of original circuitry with matched transistors
  • 8 original drum sounds with mix parameters and global accent capability
  • Highly acclaimed and authentic clap sound from the DR-110 drum machine
  • 6 independent analog outputs for external processing or recording your rhythms as multi-track audio
  • Easy-to-use 16-step drum sequencer with real-time switching between 32 separate patterns
  • Patterns can be chained into full songs with up to 250 bars
  • Distortion circuitry modeled after the RAT adds insane spice and edge to your sounds
  • 16 authentic-style step buttons with LED indicators for easy pattern creation
  • 11 controls and 26 switches to give you direct and real-time access to all important parameters
  • MIDI and USB implementation for synchronization and connection to external devices
  • Sync options include USB, MIDI, Clock and Internal for maximum versatility

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Discover versatile sound options with 8 analog voices for dynamic rhythm creation.
  • Enjoy intuitive control interface for seamless beat programming and live performance.
  • Achieve seamless DAW integration via USB 2.0, enhancing your production workflow.
  • Benefit from robust build quality, ensuring durability for studio and stage use.
  • Expand your sonic palette with adaptable module slots for future enhancements.
  • Experience exceptional value with a powerful drum machine designed for creative expression.

What's in the box:

  • Behringer Rhythm Designer RD-6 Analog Drum Machine (Orange Translucent)
  • Power Supply
  • User Manual
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
