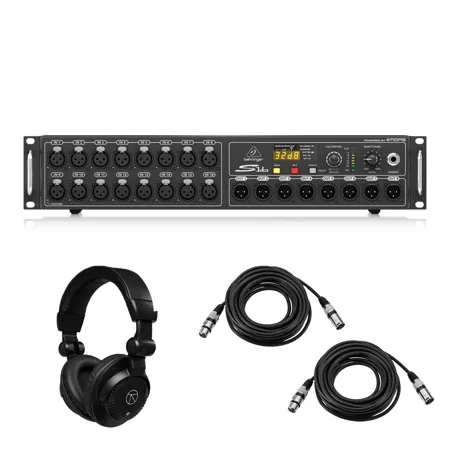

Behringer S16 Digital I/O Stage Box with 16x Remote-Controllable Midas Preamps, Bundle with TAPH100 Headphones, 2x 25' XLR Microphone Cable

SKU: BES16A MFR: 0606-ABC86-US1 A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer Digital Snake S16 I/O Box with 16 Remote
    Behringer Digital Snake S16 I/O Box with 16 Remote
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Experience pristine audio with 16 Midas-designed preamps for exceptional sound fidelity.
  • Enjoy reliable signal transmission with this digital I/O stage box, perfect for live performances.
  • Simplify your setup with easy plug-and-play connectivity, saving you valuable time.
  • Achieve flexible cable lengths and reduce stage clutter, thanks to its efficient design.
  • Benefit from durable build quality, ensuring your gear withstands rigorous touring schedules.
  • Get excellent value with this comprehensive bundle, including headphones and XLR cables.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-09-19T08:27:08

Rated 5 out of 5

A worthy addition

The S16 stage box is a worthy addition especially for live/remote work. Having an additional 16 high quality mic pre-amps on stage that can be fed to your Behringer digital mixer through a single ethernet cable is fantastic. Great sounding, easy to configure, and expands your mixer while keeping the connection simple is well worth the minor upgrade cost to add this to your rig. Go for it! You'll be glad you did!

ROBERT R.

Behringer S16 Specifications

Processing

Processing

Jump to...
  • A/D-D/A conversion

    24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (Cirrus Logic A/D CS5368, D/A CS4385)

  • Networked I/O latency

    1.1 ms (stagebox in > console processing > stagebox out)

Connectors

Jump to...
  • XLR inputs

    16 (Programmable mic preamps, designed by Midas)

  • XLR outputs

    8

  • Phones outputs, 1/4" TRS

    1 (mono)

  • AES50 ports, SuperMAC, NEUTRIK etherCON

    2

  • P-16 connector, Ultranet

    1 (no power supplied)

  • MIDI inputs / outputs

    1/1

  • ADAT Toslink outputs (2x 8 Ch)

    2

  • USB type B, rear panel

    1 (for system updates)

Mic Input Characteristics

Jump to...
  • Design

    Midas

  • THD + noise, 20 dB gain, 0 dBu out

    < 0.006 % A-weighted

  • Input impedance XLR, unbal. / bal.

    5 k© / 10 k©

  • Non clip maximum input level, XLR

    +23 dBu

  • Phantom power, switchable per input

    48 V

  • Equivalent input noise level, XLR

    -128 dBu (input shorted)

  • CMRR, XLR, @ 20 dB gain (typical)

    > 70 dB

  • CMRR, XLR, @ 40 dB gain

    > 80 dB

Input/Output Characteristics

Jump to...
  • Frequency range @ 48 kHz sample rate

    10 Hz - 22 kHz (0 dB to -1 dB)

  • Dynamic range, analog in to analog out

    106 dB (typical)

  • A/D dynamic range, preamp and converter

    109 dB (typical)

  • D/A dynamic range, converter and output

    108 dB

  • Cross talk rejection @ 1 kHz

    100 dB (adjacent channels)

  • Output level, XLR, nom./max.

    +4 dBu / +21 dBu

  • Output impedance, XLR, unbal. / bal.

    75 © / 75 ©

  • Phones output impedance / level

    40 © / +25 dBm (mono)

  • Residual noise level, XLR and TRS

    -87 dBu A-weighted

Indicators

Jump to...
  • Display

    4-digit, 7-segment, LED

  • Front status LEDs

    AES50-A, red/green
    AES50-B, red/green
    HA Locked, red
    SN Master, green
    Splitter, orange
    Out +16, orange
    Out +8, orange

  • Meter

    Sig, -30 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, Clip

  • Rear panel

    Splitter mode, orange

  • Switch-mode autorange power supply

    100-240 V (50/60 Hz)

  • Power consumption

    45 W

Physical

Jump to...
  • Dimensions

    19 x 8.9 x 3.5" (482 x 225 x 89mm)

  • Weight

    10.4 lbs (4.7 kg)

  • UPC Codes

    192223305922 | 794504549713 | 192223227576 | 192223075498

About Behringer S16

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. Now we have come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world - the ultra-cool and ultra-affordable S16 Digital Snake! The S16 provides 16 Midas-designed remote-controllable mic preamps, plus 8 balanced analog XLR returns at the stage end - and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the SuperMAC technology that made it all possible - our superb scale of production makes the S16 so very affordable.

MIDAS - The Legend in Sound Quality
Ever since its formation in the 1970s, Midas has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary Midas consoles such as the XL4 and Heritage H3000 quickly became industry standards. Midas has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning Mic Preamps which are considered by industry experts as the industry's best sounding designs.

Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality. Behringer is proud to incorporate a Midas designed mic preamp for the ultimate in high-quality audio reproduction in both live and studio environments. Find out more about Midas' amazing legacy by visiting their extensive website.

Massive Connectivity
When used as part of a complete X32 system, two S16 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 32 mic/line inputs, 16 balanced outputs and the awesome POWERPLAY P-16 Personal Monitoring System - which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets for connecting channels 1 - 8 and 9 - 16 to outboard devices, a convenient USB port for system updates via your PC - and MIDI I/O for lighting systems and sound module control.

Standalone Snake Mode
The S16 was initially designed with our flagship X32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can still tap into the S16's powerful feature set. So even if the gig calls for an analog board, you can quickly assemble a couple of S16s and ADA8200s to create a high-performance, lightweight 16 x 16 digital snake - with full remote preamp control.

Remotely Controllable Preamps Make Setup a Breeze
S16's ingenious monitoring/head amp control section allows you to select any of the 16 inputs, 8 bus outputs or P-16 output streams for immediate line checks. In addition to signal metering at the stage box, you can also set individual input channel Gain, apply +48 V phantom power - and listen directly to the input signal via headphones and much more. Once set, all configuration settings can be locked at the console for total system security.

Seamless Integration with P-16 Personal Monitoring System
The ULTRANET port on the S16 lets you connect directly to our POWERPLAY P-16 system, which provides an easy and affordable way to give your musicians and vocalists what they really want - "more me!" P16-M Personal Mixers let each performer take control of what they hear, allowing you to concentrate on providing the audience with the best possible listening experience. Fast and easy to set up, a basic system can be installed and configured in a matter of minutes, and the system can be expanded to adapt to changing needs.

Extreme Value
As you can see, the S16 is an extremely versatile 16 x 8 digital stage box solution with remote-controllable Midas-designed mic preamps, Klark Teknik's AES50 connectivity and a wealth of other professional-grade features - all at a price anyone can afford! Built tough enough to withstand the rigors of the road, the S16 only takes up two rack spaces and connects to FOH with a single, inexpensive Cat 5e cable. Now you can have the missing link between the stage and FOH at a fraction of the cost of competing systems - and we back it up with a comprehensive warranty program.

Behringer S16 Features

  • 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
  • 8 analogue, servo-balanced XLR outputs
  • AES50 network ports featuring Klark Teknik's SuperMAC networking capability for ultra-low jitter and latency
  • ULTRANET connectivity for Behringer's P16 personal monitoring system
  • Digital audio and control connectivity for Turbo sound speaker systems with ULTRANET networking capability
  • Precise LED metering plus 7-segment displays for signal control on stage
  • Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
  • Phones output assignable to any of the inputs/outputs for on-stage monitoring
  • MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
  • Remote operation via shielded CAT5e cable up to 330' (100m) length
  • USB connector for system updates via PC
  • Planet Earth switching power supply for maximum flexibility (100 - 240 V-), noise-free audio, superior transient response plus low power consumption for energy saving
  • Built like a tank yet compact, all-steel 2U rack-mount chassis

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine audio with 16 Midas-designed preamps for exceptional sound fidelity.
  • Enjoy reliable signal transmission with this digital I/O stage box, perfect for live performances.
  • Simplify your setup with easy plug-and-play connectivity, saving you valuable time.
  • Achieve flexible cable lengths and reduce stage clutter, thanks to its efficient design.
  • Benefit from durable build quality, ensuring your gear withstands rigorous touring schedules.
  • Get excellent value with this comprehensive bundle, including headphones and XLR cables.

What's in the box:

  • Behringer S16 I/O Digital Stage Box with 16x Remote-Controllable Midas Preamps
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • 2x 25' Value Series XLR M to F Professional Microphone Cable
