Black
No
6x Input / 2x Output
4 (2 Mono / 2 Stereo)
2
1x Stereo Master Output
1x Stereo Headphone Output
1x Mono Aux Send Output
Stereo Main Mix
4x Channel Knob
1x Master Knob
2x 4-Segment LED
-20 dB to +12 dB Peak/Clip
XLR Mic Input: +10 dB to +60 dB
1/4" Line Input: -10 dB to +40 dB
No
No
3-Band EQ
Low: +/-15 dB at 80 Hz
Mid: +/-15 dB at 2.5 kHz
High: +/-15 dB at 12 kHz
No
No
1x Stereo Delay
1x Stereo Reverb
24-Bit Delta-Sigma, 64/128x Oversampling
Mic Input to Main Output: 10 Hz to 160 kHz
Mic Input:
7 Hz to 80 kHz -3 dB (+10 dB Gain)
30 Hz to 30 kHz -3 dB (+60 dB Gain)
XLR Mic Input: +11 dBu at +10 dB Gain
1/4" TRS Line Input: +30 dBu (-10 dB Gain)
1/4" Line Input: +22 dBu (Stereo Inputs)
1/4" TRS Aux Return: 26 dBu
XLR Mic Input: 2 Kilohms (Balanced)
1/4" TRS Line Input:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
1/4" Aux Return: 10 Kilohms
1/4" Main Output: 240 Ohms (Balanced)
1/4" TRS Aux/Control Room Output: 240 Ohms (Balanced)
1/4" TRS Headphone Output: 150 Ohms
XLR Mic: -129 dB (0 Ohm Source Resistance)
XLR Mic Input: -131 dB (A-Weighted, 0 Ohm Source Resistance)
XLR Mic: -128 dB (50 Ohm Source Resistance)
XLR Mic: -130 dB (A-Weighted, 50 Ohm Source Resistance)
XLR Mic: -127 dB (150 Ohm Source Resistance)
XLR Mic: -129 dB (A-Weighted, 150 Ohm Source Resistance)
-96.5 dB Unweighted (Master Level at -Infinite, Channel Levels at -Infinite)
-99 dB A-Weighted (Master Level at -Infinite, Channel Levels at -Infinite)
-90.7 dB Unweighted (Master Level at Unity, Channel Levels at -Infinite)
-93 dB A-Weighted (Master Level at Unity, Channel Levels at -Infinite)
-88 dB Unweighted (Master Level at Unity, Channel Levels at Unity)
-90 dB A-Weighted (Master Level at Unity, Channel Levels at Unity)
106 dB (11 dBu In at +10 dB Gain)
108 dBA (11 dBu In at +10 dB Gain)
Mic Input to Analog Output:
0.003%
0.002% (A-Weighted)
2x XLR 3-Pin Balanced Mic Input
2x 1/4" TRS Balanced/Unbalanced Line Input
4x 1/4" TRS Balanced/Unbalanced Stereo Line Input (2 Stereo Pair)
1x 1/8" / 3.5mm TRS Unbalanced Stereo Line Input
2x 1/4" TRS Balanced/Unbalanced Stereo Aux Return (1 Stereo Pairs)
2x 1/4" TRS Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced Control Room Output (1 Stereo Pair)
1x 1/4" TRS Balanced/Unbalanced Aux/FX Send
1x 1/4" TRS Unbalanced Headphone Output
+48 V
No
No
1x USB-A (Audio Playback)
No
No
100 to 240 VAC, 50 / 60 Hz
1x IEC Input
15 W
7.7 x 3 x 9.1" (195.6 x 76.2 x 231.1mm)
3.1 lbs (1.4kg)
192223306400 | 748252157140 | 192223227576 | 192223075498

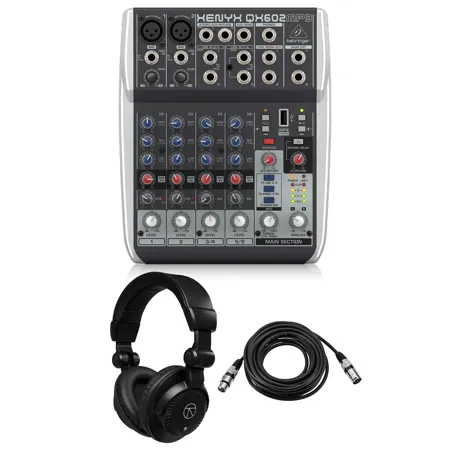

The ultra-compact XENYX QX602MP3 2-bus mixer's 6 Inputs (2 mic, 2 stereo) allow you to effortlessly achieve premium-quality sound, thanks to its 2 onboard studio-grade XENYX Mic Preamps with available Phantom Power, and our ultra-musical "British" channel EQs. Add to this a high-performance MP3 player for accessing audio files from a USB stick, and a built-in 24-bit, stereo multi-FX processor with presets for studio-class reverb and delay, and the QX602MP3 becomes an incredibly versatile - and amazingly affordable mixer!
Sonically Superior Mic Preamps
The XENYX QX602MP3 gets its name from our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic pres represent a major step in the evolution of audio technology - and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps offer a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the XENYX QX602MP3 provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren't looking.
Sublimely Musical British EQ
The British consoles of the 1960s and '70s changed the sound of rock and roll - without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on your XENYX QX602MP3 mixer is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.
Onboard MP3 Player
One of the coolest features of the QX602MP3 system is its embedded mp3 player. Just plug in your favorite playlist (via USB stick) and use the 4-button pad with its Random, Play/Pause, Rewind and Forward control switches. From break and background music to high resolution karaoke performance tracks, this mp3 player can handle it all.
Onboard Multi-FX Processor
Performing live calls for high-quality digital FX, and we've given the QX602MP3 the perfect blend of the two most-beloved and effective - reverb and delay. Ideal for adding warmth and body to your voice and instruments, our world-class 24-bit FX engine's Reverb/Delay preset has been custom-engineered to give your performance that truly professional finishing touch. And if you already have a favorite external effects processor, QX602MP3's Aux Send and Stereo Return functionality is sure to put a smile on your face. The QX602MP3 is the most versatile in its class!
The Ins and Outs
Channels 1 and 2 can accommodate 2 XLR dynamic or condenser microphones, or Line-level sources. The remaining 2 stereo channels ( 3/4 & 5/6) can either be used for 2 stereo instruments, such as keyboards or sound modules, or 4 independent mono Line inputs. During you well-deserved breaks, you can play music from your phone/tablet headphone out via channel 5/6's handy 3.5 mm stereo jack, or use the onboard mp3 player to access songs from a USB stick. And if you need even more inputs, QX602MP3's Stereo Aux Return can be used as 2 additional line-level inputs. For your convenience, the Main, Phones and Control Room Outputs are all located right on the top panel for quick and easy setup.
Small is Beautiful
Weighing in at a mere 2.91 pounds (1.3 kg), the XENYX QX602MP3 is the portable, practical way to turn a speech or scaled-down performance into a sound to behold. Schools, meeting rooms, restaurants and songsmiths the world over agree this mighty mite is a high-fidelity lifesaver.
Value
No matter what your audio mixing needs, the XENYX QX602MP3 provides the performance and features that can take your talent to the next level, at a price sure to amaze you. Professional sound quality, our legendary XENYX mic preamps with available Phantom Power, British-style EQ, onboard mp3 player and rugged reliability make the QX602MP3 ideal for all of your live performances. See your local Behringer dealer, or get your XENYX QX602MP3 online today - and find out why professional performers everywhere depend on their XENYX QX Series mixers!
