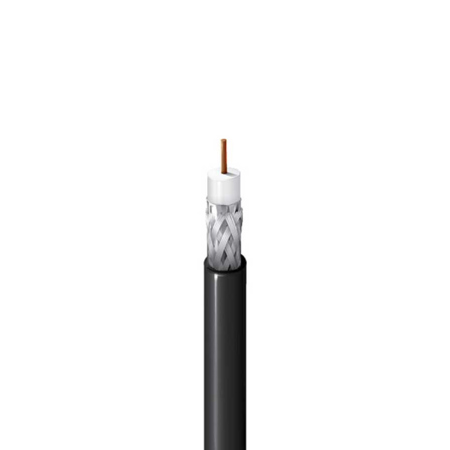

Belden 1000' 1505A 6G-SDI RG59 75 Ohms Digital Video Coaxial Cable, Violet

Violet

Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

59

BC - Bare Copper

20 AWG

Solid

0.032"

PE - Polyethylene (Foam)

0.145" (3.68mm)

White

Outer Shield Type: Tape
Material: Tri-Laminate (Alum+Poly+Alum)
Material Trade Name: Duofoil
Coverage: 100%

Outer Shield Type: Braid
Material: Tinned Copper (TC)
Coverage: 95%

PVC - Polyvinyl Chloride

0.233" (5.92mm)

Frequency - Min. Return Loss
5 - 1600 MHz - 23 dB
1600 - 4500 MHz - 21 dB
4500 - 6000 MHz - 15 dB

1 MHz - 0.3 dB/100'
3.58 MHz - 0.6 dB/100'
5 MHz - 0.63 dB/100'
6 MHz - 0.69 dB/100'
7 MHz - 0.74 dB/100'
10 MHz - 0.9 dB/100'
12 MHz - 0.91 dB/100'
25 MHz - 1.3 dB/100'
67.5 MHz - 2.05 dB/100'
71.5 MHz - 2.1 dB/100'
88.5 MHz - 2.2 dB/100'
100 MHz - 2.3 dB/100'
135 MHz - 2.7 dB/100'

143 MHz - 2.8 dB/100'
180 MHz - 3.1 dB/100'
270 MHz - 3.8 dB/100'
360 MHz - 4.4 dB/100'
540 MHz - 5.5 dB/100'
720 MHz - 6.4 dB/100'
750 MHz - 6.5 dB/100'
1000 MHz - 7.6 dB/100'
1500 MHz - 9.3 dB/100'
2000 MHz - 10.9 dB/100'
2250 MHz - 11.6 dB/100'
3000 MHz - 13.4 dB/100'
4500 MHz - 17.5 dB/100'
6000 MHz - 21.1 dB/100'

10 Ohm/1000ft

3.8 Ohm/1000ft (12 Ohm/km)

16.3 pF/ft (53.5 pF/m)

75 Ohm

82%

300 V (CMR, CMG)

140 Degree F (60 Degree C)

-22 to 167 Degree F (-30 Degree C to +75 Degree C)

2.3" (58mm)

52 lbs (24 kg)

31 lbs (14.06kg)/1000' (304.8m)

Indoor, Indoor, Aerial - Black only, When supported by messenger wire

CA Prop 65

UL1666 Vertical Shaft

CPR Euroclass: Eca; CPR UKCA Class: Eca

CMR

CMG

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UKCA Mark

China RoHS II (GB/T 26572-2011)

1506A
