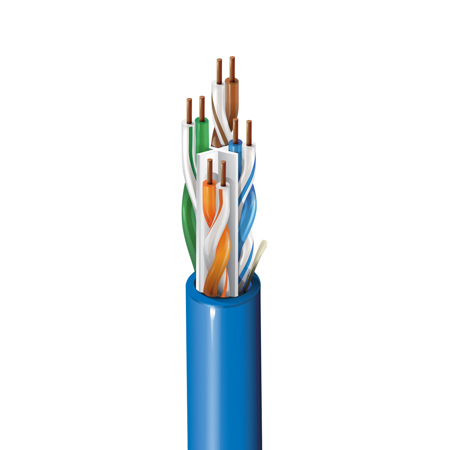

Belden 1000' 3612 U/UTP 23AWG 400MHz Cat 6 Bulk Cable, Blue
See all Belden items

Belden 1000' 3612 U/UTP 23AWG 400MHz Cat 6 Bulk Cable, Blue

SKU: BEL36120061
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Belden 3612 Specifications

Overview

Overview

Jump to...

  • Color

    Blue

  • Suitable Applications

    Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Conductor

Jump to...

  • Material

    BC - Bare Copper

  • Size

    23 AWG

  • Stranding

    Solid

  • No. of Pairs

    4

Insulation

Jump to...

  • Material

    PO - Polyolefin

  • Color Code

    White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Outer Jacket

Jump to...

  • Separator

    Center Member (Patented X-Spline)

  • Material

    PVC - Polyvinyl Chloride

  • Ripcord

    Yes

  • Overall Cable Diameter (Nominal)

    0.231" (5.87mm)

Electrical Characteristics

Jump to...

  • Max. Conductor DCR

    77 Ohm/km (23 Ohm/1000')

  • Max. Capacitance Unbalance

    330 pF/100m

Delay

Jump to...

  • Frequency

    100 MHz

  • Max. Delay

    537.6 ns/100m

  • Max. Delay Skew

    35 ns/100m

  • Nom. Velocity of Prop.

    70%

  • Typical Delay Skew

    35 ns/100m

Voltage

Jump to...

  • UL Voltage Rating

    300 V (CMR)

Mechanical Characteristics

Jump to...

  • Temperature

    UL Temperature: 167 Degree F (75 Degree C)
    Operating: -4 to 167 Degree F (-20 To +75 Degree C)
    Installation: 35 to 122 Degree F (0 To +50 Degree C)
    Storage: -4 to 167 Degree F (-20 To +75 Degree C)

Standards and Compliance

Jump to...

  • Environmental Suitability

    Riser, Indoor

  • Sustainability

    Product Lens, Environmental Product Declaration (EPD) Available

  • Flammability / Reaction to Fire

    UL 1666 Riser, FT4, IEC 60332-1-2

  • CPR Compliance

    CPR Euroclass: Eca; CPR UKCA Class: Eca

  • NEC / UL Compliance

    Article 800, CMR

  • CEC / C(UL) Compliance

    CMR

  • ICEA Compliance

    S-116-732

  • IEEE Compliance

    IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

  • NEMA Compliance

    ANSI/NEMA WC-66

  • Data Category

    Category 6

  • TIA/EIA Compliance

    ANSI/TIA-568.2-D Category 6

  • Third Party Performance Verification

    Category 6

  • ISO/IEC Compliance

    ISO/IEC 11801-1, IEC 61156-5

  • CENELEC Compliance

    Segregation class according EN50174-2 = a

  • European Directive Compliance

    EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

  • UK Regulation Compliance

    UKCA Mark

  • APAC Compliance

    China RoHS II (GB/T 26572-2011)

  • Plenum Number

    3613

Bend Radius

Jump to...

  • Stationary Min.

    1" (25mm)

  • Installation Min.

    2.5" (64mm)

  • Max. Pull Tension

    25 lbs (11.33kg)

  • Weight

    25 lbs (11.33kg)/1000' (304.8m)

About Belden 3612

The Belden 3612 Cable offers premium performance for high-speed data networks. Featuring 23 AWG solid bare copper conductors, a U/UTP design, and a durable PVC jacket, this CMR-rated riser cable supports reliable transmission up to 400MHz. Available in a 1000-foot length and a vibrant blue color, it's ideal for professional installations.

Belden 3612 Features

  • 23 AWG solid bare copper conductors deliver optimal signal quality and performance
  • 400MHz bandwidth supports high-speed data transmission for modern networks
  • U/UTP design ensures reduced crosstalk and enhanced reliability
  • CMR-rated riser PVC jacket ideal for professional premise installations

Warranty Information

This product has a limited warranty of 120 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 23 AWG solid bare copper conductors deliver optimal signal quality and performance
  • 400MHz bandwidth supports high-speed data transmission for modern networks
  • U/UTP design ensures reduced crosstalk and enhanced reliability
  • CMR-rated riser PVC jacket ideal for professional premise installations

What's in the box:

  • Belden 1000' 3612 U/UTP 23AWG 400MHz Cat 6 Bulk Cable (Blue)
  • Belden 10 Year Limited Warranty
