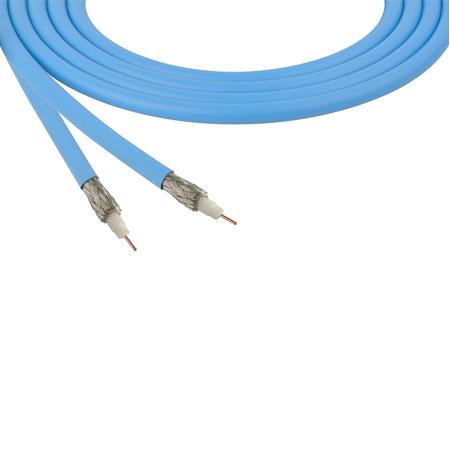

Belden 4855R 1000' 12G-SDI 4K UHD Mini RG59 Video Coaxial Cable, 23AWG, Light Blue

SKU: BEL4855R1LB MFR: BL-4855R-1000LBE
Earn VIP Reward Points

Key Features

  • Experience superior signal quality with this 1000ft Belden 12G-SDI coaxial cable reel.
  • Ensure reliable 4K UHD video transmission using this high-performance mini RG59 coax cable.
  • This durable 23AWG silvered copper core coaxial cable supports up to 12G-SDI standards.
  • Minimize signal loss with the 95% tinned copper braid shielding on this Belden coax cable.
  • Perfect for professional video setups, this 75 Ohm coaxial cable offers consistent impedance.
  • Enjoy long-lasting performance with this light blue PVC jacketed coaxial cable, built to last.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Belden 4855R Specifications

  • Color

    Light Blue

  • AWG

    AWG: 23
    Stranding: Solid
    Conductor: SC Silvered Copper
    Diameter: 0.023" (0.058cm)

  • Insulation

    Material: PE Polyethylene (Foam)
    Diameter: 0.102" (0.259cm)

  • Outer Shield

    Layer 1:
    Type: Tape
    Material: Tri-Laminate (Alum+Poly+Alum)
    Coverage: 100%

    Layer 2:
    Type: Braid
    Material: TC Tinned Copper
    Coverage: 95%

  • Outer Jacket

    Material: PVC Polyvinyl Chloride

  • Max. Recommended Pulling Tension

    40 lbs (18.1kg)

  • Min. Bend Radius

    1.6" (4.1cm)

  • Compliance

    CMR, CMG, EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), China RoHS II (GB/T 26572-2011); CA Prop 54 Sustainability

  • Flame Test

    Flammability / Fire Resistance: UL1666 Vertical Shaft, FT4

  • Impedance

    75 Ohms

  • Capacitance

    16.3 pF/foot

  • Velocity of Propagation

    82%

  • Operating Voltage

    UL: 300 V CMR, CMG Maximum

  • Operating Temperature

    -22 to 167 Degree F (-30 to 75 Degree C)

  • UL Temperature Rating

    140 Degree F (60 Degree C)

  • Diameter

    0.159" (0.403cm)

  • Length

    1000' (304.8m)

  • Weight

    17 lbs (7.7kg)

About Belden 4855R

It is a robust and high-performance 4855R 1000' 12G-SDI 4K UHD Mini RG59 Video Coaxial Cable, designed to deliver superior video transmission quality. This light blue, 23AWG cable is constructed with a solid 0.023" silver-plated copper conductor, ensuring reliable and high-quality signal transmission for your 4K Ultra High Definition video needs.

The cable's gas-injected, foamed high-density polyethylene insulation enhances its durability and flexibility, making it an ideal choice for long-distance cable runs in various video applications, including broadcasting, live events, and professional video production.

Moreover, the cable features a Duofoil layer bonded to the core, complemented by a tinned copper braid shield with 95% coverage. This design significantly reduces signal interference and loss, ensuring that your video signals maintain their quality over the cable's impressive 1000-foot length.

Finally, the cable is encased in a PVC jacket, further enhancing its durability and longevity. This Belden-manufactured 12G-SDI cable is a testament to the brand's reputation for producing reliable and high-quality cables, making it a cost-effective solution for your high-definition video transmission needs.

Belden 4855R Features

  • Bulk 1000' RG-59 Mini Video Cable
  • Supports up to 12G-SDI 4K Video Signals
  • 23 AWG, 75-Ohm SDI
  • PVC, PE Insulation, Foil & TC Shielding
  • 40 lbs Maximum Pull Tension
  • 300V UL Voltage

Warranty Information

This product has a limited warranty of 120 months.

Key Features

  • Experience superior signal quality with this 1000ft Belden 12G-SDI coaxial cable reel.
  • Ensure reliable 4K UHD video transmission using this high-performance mini RG59 coax cable.
  • This durable 23AWG silvered copper core coaxial cable supports up to 12G-SDI standards.
  • Minimize signal loss with the 95% tinned copper braid shielding on this Belden coax cable.
  • Perfect for professional video setups, this 75 Ohm coaxial cable offers consistent impedance.
  • Enjoy long-lasting performance with this light blue PVC jacketed coaxial cable, built to last.

What's in the box:

  • Belden 4855R 1000' 12G-SDI 4K UHD Mini RG59 Video Coaxial Cable (Light Blue)
  • Belden 10 Year Limited Warranty
