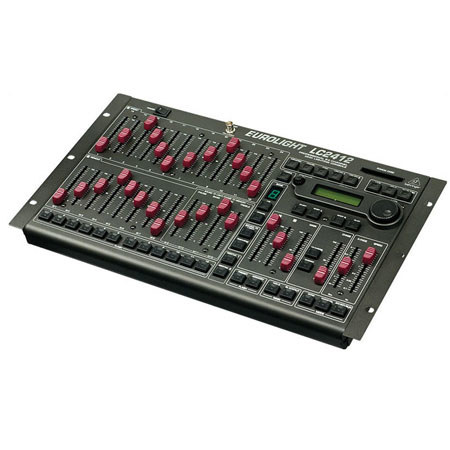

Behringer EUROLIGHT LC2412 Professional 24-Channel DMX Lighting Console

SKU: BELC2412

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Carter F : I'm trying to zoom in to see the commands on the board. Can I program cues on this board or is it simply 24 Channels and 12 Channel Scene Setter with an X-Y (or A-B) fader?
Shopper : Why Did You Choose This?OSCAR F : Customer preference

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer EUROLIGHT LC2412 Professional 24-Channel DMX Lighting Console Specifications

  • Channels

    26 (24 + 2 Switchable Channels)

  • DMX Interface

    78 out of 512 DMX channels (max. 3 DMX per console-channel)

  • Memory

    120 Max Locations
    Chases: Max 99
    Steps: Max 650, up to 99 per chase

  • Connections

    Analog In: 1/4" TS Unbalanced
    MIDI In / Out: DIN 5-Pin
    DMX-512 Output: 5-pin XLR
    Analog Output: D-Sub 15-pin Connector

  • Storage

    PCMCIA ATA Flash Card
    4MB
    Battery Type: 3V Lithium Battery (CR2032)

  • Power

    USA / Canada: 120V-, 60Hz
    Consumption: 27W
    Fuses: 100 - 120 V-: T 1 A H / 200 - 240 V-: T 500 mA H
    Standard IEC Receptacle

  • Dimensions (H x W x D)

    4.17 x 17.40 x 10.95" / 105.9 x 441.9 x 278.1 mm

  • Weight

    8.38 lbs / 3.80 kg

  • UPC Code

    736211579140

About Behringer EUROLIGHT LC2412 Professional 24-Channel DMX Lighting Console

Behringer EUROLIGHT LC2412 Professional 24-Channel DMX Lighting Console Features

  • 24 preset channels, assignable to 512 DMX channels
  • Up to 3 DMX channels can be controlled per preset channel
  • 120 scenes storable in 10 banks
  • Integrated chaser with up to 650 steps featuring sync-to-bass beat
  • Frequency-dependent sound-to-light function
  • Crossfade time freely selectable for super-smooth scene fades
  • 2 additional, multi-functional channels for special effects (fog machine, color changer, etc.)
  • Ultra-flexible fading functions for manual and automatic operation
  • Intuitive solo and channel flash functions
  • Extremely effective preview function allows "hidden" memory and chaser checks even during live performances
  • Dimmer control via DMX or analog output (0/+10 V)
  • MIDI interface for cascading of 2 LC2412s (master/slave setup)
  • PCMCIA card slot for storing of up to 25 complete settings (PCMCIA card not supplied)
  • Illuminated display/controls and BNC Lamp socket for easy operation in dark stage environments
  • Rack-mounting kit for installation in standard 19" racks included
  • High-quality components and exceptionally rugged construction ensure long life

Key Features

  • 24 preset channels, assignable to 512 DMX channels
  • 120 scenes storable in 10 banks
  • Frequency-dependent sound-to-light function
  • Intuitive solo and channel flash functions
  • Dimmer control via DMX or analog output (0/+10 V)

What's in the box:

  • Behringer EUROLIGHT LC2412 Professional 24-Channel DMX Lighting Console
  • Power Supply
  • User Manual
  • Adorama 1 Year Limited Warranty
