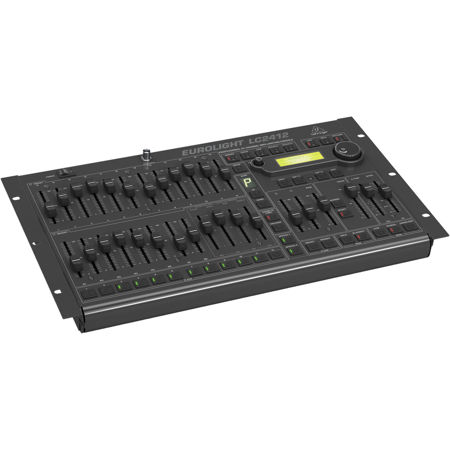

Behringer EUROLIGHT LC2412 V2 Professional 24-Channel DMX Lighting Console

SKU: BELC2412V2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer EUROLIGHT LC2412 V2 Specifications

General

General

Jump to...
  • Channels

    26 (24 + 2 special switchable channels)

  • DMX

    78 out of 512 DMX channels (max. 3 DMX channels per console-channel)

  • Memories

    Max. 120

  • Chases

    Max. 99

  • Steps

    Max. 650, up to 99 per chase

  • Analog In

    1/4" TS mono jack connector, unbalanced

  • Level

    Line level

  • Footswitch

    1/4" TS mono jack connector

  • MIDI In

    DIN 5-pole connector

Outputs

Jump to...
  • DMX512 out

    XLR 5-pole connector, conforms to the DMX512/1990 standard

  • MIDI Out

    DIN 5-pole connector

  • Analog out

    Sub D connector, 15-pole

  • Level

    0/+10 V DC

  • Min. load impedance

    600 Ohm

Power Supply: Voltage

Jump to...
  • USA/Canada

    120 V-, 60 Hz

  • General export model

    120/230 V-, 50 - 60 Hz

  • Power consumption

    37 W

  • Fuses

    100 - 120 V-: T 1 A H 250 V
    220 - 240 V-: T 500 mA H 250 V

  • Mains connection

    Standard IEC receptacle

Physical

Jump to...
  • Dimensions (H x W x D)

    4.18 x 17.5 x 11" (106 x 442 x 278mm)

  • Weight

    8.38 lb (4.3kg)

  • UPC Code

    653341334633

About Behringer EUROLIGHT LC2412 V2

A professional-grade lighting solution, the EUROLIGHT LC2412 V2 is a 24-Channel DMX Lighting Console designed to deliver advanced and reliable control over your lighting setup. This high-quality console from the reputable brand, Behringer, offers 24 preset channels, assignable to 512 DMX channels, making it an ideal choice for managing larger, more complex lighting arrangements.

The EUROLIGHT LC2412 V2 is equipped with the capacity to store up to 120 scenes across 10 banks, offering a vast range of lighting possibilities. It also features an integrated chaser with up to 650 steps, complete with a sync-to-bass beat function and a frequency-dependent sound-to-light function. This allows for the creation of dynamic, rhythmically synchronized light shows.

The crossfade time on this console is fully customizable, enabling super-smooth scene transitions. For added versatility, it includes two additional, multi-functional channels for controlling special effects such as fog machines or color changers.

This console is designed to provide comprehensive control of all DMX-compatible systems, making it a universal solution for your lighting needs. It operates based on the DMX standard, a protocol developed to standardize lighting control signals and eliminate inconsistencies in non-standardized or proprietary systems.

The EUROLIGHT LC2412 V2 is compatible with the LD6230 Dimmer Pack (sold separately) and a wide range of other industry-approved DMX devices. It offers ultra-flexible fading functions for both manual and automatic operation, along with intuitive solo and channel flash functions. A highly effective preview function allows for "hidden" memory and chaser checks, even during live performances.

For ease of use in dark stage environments, the console features illuminated display/controls and a BNC lamp socket. It also offers dimmer control via DMX or analog output (0/+10 V), and a MIDI interface for cascading two LC2412s in a master/slave setup.

Constructed with a rugged steel chassis, the EUROLIGHT LC2412 V2 is built to withstand demanding conditions and deliver long-lasting performance. It comes with a rack-mounting kit for installation in standard 19" racks and is manufactured under an ISO9000 certified management system, reflecting Behringer's commitment to quality management and performance.

Behringer EUROLIGHT LC2412 V2 Features

  • Professional lighting console with 24 preset channels, assignable to 512 DMX channels
  • Up to 3 DMX channels can be controlled per preset channel
  • 120 scenes storable in 10 banks
  • Integrated chaser with up to 650 steps featuring sync-to-bass beat
  • Frequency-dependent sound-to-light function
  • Crossfade time freely selectable for smooth scene fades
  • 2 additional, multi-functional channels for special effects (fog machine, color changer, etc.)
  • Ultra-flexible fading functions for manual and automatic operation
  • Intuitive solo and channel flash functions
  • Extremely effective preview function allows "hidden" memory and chaser checks even during live performances
  • Dimmer control via DMX or analog output (0/+10 V)
  • MIDI interface for cascading of 2 LC2412s (master/slave setup)
  • Illuminated display/controls and BNC Lamp socket for easy operation in dark stage environments
  • Designed and engineered in Germany

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Key Features

  • Take command with 24 DMX channels on this lighting console, perfect for dynamic light shows.
  • Store up to 120 scenes in memory, making lighting design quick and efficient for any event.
  • Create stunning light sequences using up to 99 chases with a maximum of 650 steps each.
  • Easily integrate with MIDI devices for synchronized audio and lighting control during performances.
  • Utilize the analog output for versatile control options with a 0/+10 V DC level output.
  • Rack-mountable design makes this lighting controller a perfect fit for any professional setup.

What's in the box:

  • Behringer EUROLIGHT LC2412 V2 Professional 24-Channel DMX Lighting Console
  • Rack Mounting Hardware
  • Adorama 1 Year Limited Warranty
