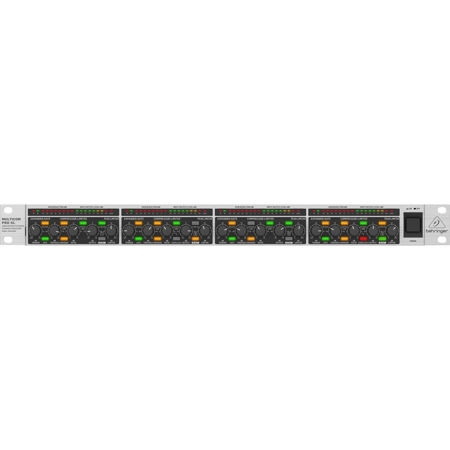

Behringer Multicom Pro-XL MDX4600 V2 Reference-Class-4 Channel Expander /Gate/Compressor/Peak Limiter with Dynamic Enhancer & Low Contour Filter

SKU: BEMDX4600V2 MFR: 0817-ABC86-US1
$189.00
Earn VIP Reward Points

Key Features

  • Achieve pristine sound with this 4-channel compressor, perfect for studio mixing and mastering.
  • Use the integrated peak limiter to prevent unwanted distortion, ensuring a clean audio signal.
  • The dynamic enhancer adds sparkle to your tracks, making vocals and instruments stand out vibrantly.
  • Reduce noise effectively with the expander/gate, ideal for live sound and broadcast applications.
  • Enjoy versatile signal processing with selectable expander, compressor, and limiter functions.
  • The low contour filter prevents unwanted low-frequency rumble, ensuring a clear and focused mix.
See More Product Details
On Backorder?Expected Availability: 01/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Interactive Knee Adaptation (IKA) technology in the Behringer Multicom Pro-XL MDX4600 V2?

The Interactive Knee Adaptation (IKA) technology in the Behringer Multicom Pro-XL MDX4600 V2 provides program-adaptive compression, combining the benefits of both hard and soft-knee compression. This ensures a smooth, musical performance across a wide range of dynamics and is ideal for compressing mono or stereo signals while preserving high frequencies.

What does the Interactive Gain Control (IGC) Peak Limiter do in the MDX4600 V2?

The Interactive Gain Control (IGC) Peak Limiter in the MDX4600 V2 combines a clipper and program limiter to provide reliable and inaudible protection against signal peaks. This ensures your recordings maintain a consistent quality, even when dealing with unexpected peaks in the audio.

How does the Stereo Couple feature work in the Behringer Multicom Pro-XL MDX4600 V2?

The Stereo Couple feature in the Behringer Multicom Pro-XL MDX4600 V2 allows for true stereo processing by linking channels 1/2 and 3/4. This provides synchronized dynamics control across the linked channels, offering a cohesive and balanced sound output.

What is the benefit of the Integrated Dynamic Enhancer in the MDX4600 V2?

The Integrated Dynamic Enhancer in the MDX4600 V2 allows you to accentuate bass, midrange, and high frequencies at selectable points, delivering maximum punch, clarity, and detail to your sound without increasing the overall volume. This feature brings life to your vocals and instruments, enhancing the overall quality of your audio.

Can the Behringer Multicom Pro-XL MDX4600 V2 be used for live performances?

Yes, the Behringer Multicom Pro-XL MDX4600 V2 is an excellent tool for live performances. With its robust build quality, flexible routing options, and a plethora of professional features, it provides reliable and high-quality audio control in a live setting.

Reviews about this item

Review Summary

Behringer MDX4600V2 Specifications

MDX-4600V2

MDX-4600V2

Jump to...
  • Function

    Expander, gate, compressor, peak limiter and de-esser

  • Number of Channels

    Four

Audio Input

Jump to...
  • Type

    4x XLR
    4x 1/4" TRS phone, servo-balanced

  • Impedance

    +4 dBu: 50 kOhms balanced, 50 kOhms unbalanced @ 1 kHz
    -10 dBV: 50 kOhms balanced, 100 kOhms unbalanced @ 1 kHz

  • Operating Level

    +4 dBu/ -10 dBV, switchable

  • Maximum Input Level

    +22 dBu, balanced and unbalanced

  • CMMR

    Typically 60 dB @ 1 kHz

Audio Output

Jump to...
  • Type

    4x XLR
    4x 1/4" TRS phone, servo-balanced

  • Impedance

    100 Ohms balanced, 50 Ohms unbalanced @ 1 kHz

  • Maximum Output Level

    +21 dBu, balanced and unbalanced

System Specifications

Jump to...
  • Frequency Range

    10 Hz to 70 kHz, +0/-3 dB

  • Signal to Noise Ratio

    115 dB, unweighted

  • Total Harmonic Distortion (THD)

    0.02% typ. @ +4 dBu, 1 kHz, unity gain

  • Crosstalk

    -90 dB @ 1 kHz

Expander/Gate

Jump to...
  • Type

    IRC (Interactive Ratio Control) expander

  • Threshold

    Off to +10 dB, variable

  • Ratio

    1:1 to 1:8, variable

  • Attack Time

    < 1 ms / 50 dB, program-dependent

  • Release Time

    Slow: 100 ms / 1 dB
    Fast: 100 ms / 100 dB, variable

Compressor

Jump to...
  • Type

    IKA (Interactive Knee Adaptation) compressor

  • Threshold

    -40 to +20 dB, variable

  • Ratio

    1:1 to infinite:1, variable

  • Auto

    Characteristic: Wave adaptive compressor

  • Auto Attack Time

    Typically 15 ms for 10 dB, 5 ms for 20 dB, and 3 ms for 30 dB

  • Release Time

    Typically 125 dB/sec, program-dependent

  • Output

    -20 to +20 dB, variable

Peak Limiter Section

Jump to...
  • Type

    IGC (Interactive Gain Control) peak limiter

  • Level

    0 dB to Off (+21 dBu), variable

  • Level 1 Limiter Type

    Clipper
    Attack: Zero
    Release: Zero

  • Level 2 Limiter Type

    Program limiter
    Attack: Typically < 5 ms, program-dependent
    Release: Typically 20 dB/sec, program-dependent

Dynamic Enhancer Section

Jump to...
  • Type

    IDE (Interactive Dynamic Enhancer)

  • Filter

    Frequency: 2.5 kHz (lower cut-off frequency)

  • Characteristics

    High-pass filter (6 dB / octave)

  • Booster

    Max 28 dB @ 7.5 kHz

Power Supply

Jump to...
  • Switch Mode

    Auto range, 100 to 240 VAC, 50/60 Hz

  • Power Consumption

    18 W

  • Mains Power

    Standard IEC receptacle

  • Dimensions (H x W x D)

    1.7 x 19.0 x 5.9" (4.3 x 48.3 x 15.0cm)

  • Weight

    4.0 lb (1.8kg)

  • UPC Code

    653341311238

About Behringer MDX4600V2

Become the master of your audio dynamics with the Behringer Multicom Pro-XL MDX4600 V2, a reference-class 4-channel expander, gate, compressor, and peak limiter designed to elevate your professional audio recording and production to new heights. This high-quality, advanced unit is engineered to deliver unparalleled sound enhancement, offering a suite of features that cater to the most discerning audio professionals.

The MDX4600 V2 stands out with its innovative Interactive Knee Adaptation (IKA) technology, which provides program-adaptive compression to seamlessly blend the benefits of both hard and soft-knee compression. This ensures smooth, musical performance across a wide range of dynamics, making it perfect for compressing mono or stereo signals while preserving the integrity of high frequencies.

Experience noise suppression at its finest with the Interactive Ratio Control (IRC) Expander/Gate. This feature is the ultimate solution for reducing noise floors without resorting to notch filters or complex equalization, ensuring your audio remains crisp and clear.

Bring life to your vocals and instruments with the integrated Dynamic Enhancer. This tool allows you to accentuate bass, midrange, and high frequencies at selectable points, delivering maximum punch, clarity, and detail to your sound without increasing the overall volume.

Protect your audio from unexpected peaks with the Interactive Gain Control (IGC) Peak Limiter. This innovative limiter combines a clipper and program limiter for reliable and inaudible protection against signal peaks, ensuring your recordings maintain a consistent quality.

The MDX4600 V2 also offers true stereo processing with its Stereo Couple feature, linking channels 1/2 and 3/4 for synchronized dynamics control. This durable unit is equipped with precise, 8-segment LED meters for monitoring input/output levels and gain reduction, ensuring you have complete visual feedback during use.

With switchable +4 dBu or -10 dBV operating levels and comprehensive Side Chain I/O, the MDX4600 V2 provides the flexibility you need for any setup. The servo-balanced XLR and 1/4" inputs and outputs ensure pristine signal integrity for both live and studio applications.

Occupying just a single rackspace, the Multicom Pro-XL MDX4600 V2 is a sound value for any audio professional. Its robust build quality, coupled with flexible routing options and a plethora of professional features, makes it an indispensable tool for live performances and an essential addition to your studio gear.

Discover the full potential of your audio with the Behringer Multicom Pro-XL MDX4600 V2. Whether you're looking to enhance your live shows or achieve studio-quality dynamics processing, this innovative device is ready to meet the challenge. Explore the MDX4600 V2 at Adorama and take the first step towards impeccable audio control.

Behringer MDX4600V2 Features

  • Switchable IKA (Interactive Knee Adaptation) program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
  • IRC (Interactive Ratio Control) expander/gate circuitry for virtually inaudible noise suppression
  • Switchable dynamic Enhancer for brilliant, lively audio even with heavy compression
  • IGC (Interactive Gain Control) peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
  • Switchable Low contour filter prevents "pumping" due to low-frequency dominated compression
  • Stereo couple function selectable for channels 1/2 and 3/4
  • Separate 8-segment LED meters for input/output levels and gain reduction
  • Selectable operating level (+4 dBu/-10 dBV)
  • Servo-balanced inputs and outputs with 1/4" TRS and gold-plated XLR connectors
  • Internal switch-mode power supply (100 - 240 V-) for noise-free audio and low power consumption
  • Designed and engineered in Germany

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Achieve pristine sound with this 4-channel compressor, perfect for studio mixing and mastering.
  • Use the integrated peak limiter to prevent unwanted distortion, ensuring a clean audio signal.
  • The dynamic enhancer adds sparkle to your tracks, making vocals and instruments stand out vibrantly.
  • Reduce noise effectively with the expander/gate, ideal for live sound and broadcast applications.
  • Enjoy versatile signal processing with selectable expander, compressor, and limiter functions.
  • The low contour filter prevents unwanted low-frequency rumble, ensuring a clear and focused mix.

What's in the box:

  • Behringer Multicom Pro-XL MDX4600 V2 Reference-Class-4 Channel Expander /Gate/Compressor/Peak Limite
  • AC Power Cable
  • Adorama 1 Year Limited Warranty
