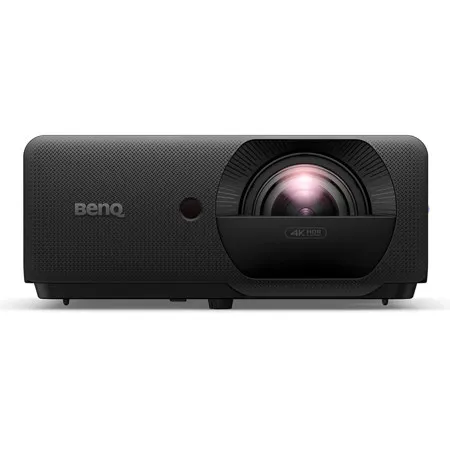

BenQ LW830ST WXGA HDR Short-Throw Laser DLP Simulation Projector

SKU: BQLW830ST MFR: LW830ST
Earn VIP Reward Points

Key Features

  • Experience stunning WXGA resolution with 4000 ANSI lumens for bright, clear visuals.
  • Enjoy vibrant, lifelike colors and deep contrasts with 3,000,000:1 contrast ratio.
  • Benefit from a long-lasting laser light source, providing 20,000 hours of reliable use.
  • Achieve immersive viewing even in small spaces with its versatile short-throw projection.
  • Connect effortlessly with multiple HDMI 2.0b inputs, perfect for diverse media sources.
  • Enhance your presentations and simulations with precise color accuracy and detail.
See More Product Details
Temporarily On Backorder?Expected Availability: 05/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

BenQ LW830ST Specifications

Display

Display

Jump to...
  • Brightness

    4000 ANSI lumens

  • Resolution

    WXGA (1280 x 800)

  • Native Aspect Ratio

    16:10

  • Contrast Ratio

    3,000,000:1 (FOFO)

  • Display Color

    30-bit (1.07 billion colors)

  • Light Source

    Laser

  • Light Source Life

    Normal: 20000 hrs
    ECO: 30000 hrs

  • Screen Fill

    Yes

Optical

Jump to...
  • Throw Ratio

    0.521

  • Zoom Ratio

    Fixed

  • Lens

    F=2.8, f=17.51 mm

  • Projection Offset

    112% (Full-Height)

  • Keystone Adjustment

    2D, (Auto) Vertical +/- 30 Degree; Horizontal +/- 30 Degree


Jump to...
  • Rec. 709 Coverage

    93%

  • Picture Modes

    Simulation, 3D, Bright, HDR10, HLG, Presentation, sRGB, User 1, User 2, Vivid

Compatibility

Jump to...
  • Input Lag

    16.7 ms (WXGA 60Hz)

  • Resolution Support

    VGA (640 x 480) to 4K UHD (3840 x 2160)

  • Horizontal Frequency

    15K-135KHz

  • Vertical Scan Rate

    23-120Hz

I/O Interface

Jump to...
  • HDMI in

    HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

  • LAN

    1x RJ45

  • USB Type A

    2x

  • RS232 in

    1x DB-9pin

  • Speaker

    15W

  • Audio out

    1x 3.5mm Mini Jack

Environment

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Power Supply

    AC 100 to 240 V, 50/60 Hz

  • Typical Power Consumption (110V)

    230W @ 110VAC

  • Stand-by Power Consumption

    <0.5W

  • Network Stand-by Power Consumption

    <2W

  • Acoustic Noise

    30dB/24dB (Typ./Eco.)

Projection System

Jump to...
  • Projection System

    DLP

Physical

Jump to...
  • Color

    Black

  • Dimensions (W x H x D)

    10.99 x 4.74 x 9.03" (279.2 x 120.5 x 229.3mm)

  • Weight

    7.48 lbs (3.4kg) (+/-100g)

  • UPC Code

    840046052928

About BenQ LW830ST

Immersive Entertainment
• Blending Ready Mode
• 360 Degree Installation
• Color Mode - sRGB Mode, Simulation Mode
• 300" MaxScreen
• IP6X Dustproofing
• LAN Firmware Update
• DMS Software IT Takes Control

Installer Ready
Optimized for Multi-Projector Projects from Fast Setup to Long Term Performance.

Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.

Brilliant Visuals with Stable Color and Performance
The LW830ST delivers brilliant image clarity and stable performance across every detail-from vivid Rec.709 color and high contrast to 4000-lumen brightness and 20,000-hour laser life.

BenQ WBA for Seamless Multi-Projector White Calibration
BenQ's factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.

Full flexibility for ceilings, walls and floors
360 Degree and Portrait Projection for Full Installation Freedom.

Up to 300-Inch Display
0.521 short throw ratio for large image from a short distance in limited spaces.

IP6X Sealed Optical Engine for Reliable Operation
Designed with a sealed optical engine tested for IP6X protection, helping maintain consistent image performance during long-term use.

Optional Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.

Auto Reset Mechanism with Built-in Timer
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.

IT takes control - Streamlined Device Management

Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.

Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.

Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.

BenQ LW830ST Features

  • 0.521 short throw ratio for large image from short distance
  • One-click preset configurations to prepare multi-projectors for blending
  • IP6X sealed engine with optional filter for optimal dust resistance and protection
  • Supports firmware updates via LAN to keep all devices up to date without physical access
  • Laser high visual 4000 ANSI lumen brightness

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience stunning WXGA resolution with 4000 ANSI lumens for bright, clear visuals.
  • Enjoy vibrant, lifelike colors and deep contrasts with 3,000,000:1 contrast ratio.
  • Benefit from a long-lasting laser light source, providing 20,000 hours of reliable use.
  • Achieve immersive viewing even in small spaces with its versatile short-throw projection.
  • Connect effortlessly with multiple HDMI 2.0b inputs, perfect for diverse media sources.
  • Enhance your presentations and simulations with precise color accuracy and detail.

What's in the box:

  • BenQ LW830ST WXGA HDR Short-Throw Laser DLP Simulation Projector
  • 5.9' Power Cord
  • Remote Control with Battery (RCA011)
  • User Manual
  • BenQ 3 Year Limited Warranty
